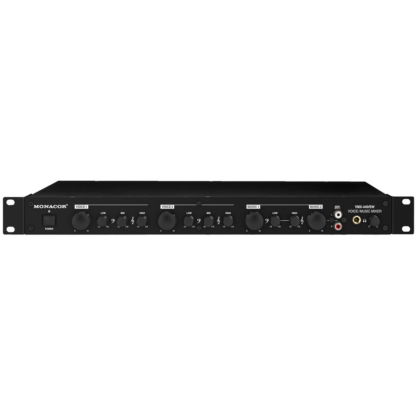

Monacor VMX-440/SW Stereo Mixer


£103.00 + VAT    £123.60 incl. VAT

4 channel microphone and music mixer

In stock




Mixing made easy by the Monacor VMX-440/SW. An easy-to-use operating concept and clearly arranged features. Two stereo line sources and two mono microphone sources can be mixed together without any problems. Each input channel features a tone control. The master output level can be pre-adjusted via recessed trimming potentiometers in order to protect against overload. An optional remote switch can mute the stereo master outputs. Can be used free standing or 1u rack mounted

  • 2 stereo line inputs
  • 2 balanced microphone inputs
  • Parallel stereo line input on the front panel
  • 3-way equalizer for each microphone input
  • Common 2-way tone control for the two line inputs
  • Muting via optional momentary push-button/switch
  • 2 adjustable stereo master outputs
  • Master output level can be pre-adjusted via trimming potentiometers
  • Adjustable headphone output
  • Stereo record output
  • 482mm (19″) rack installation, 1RS, with supplied mounting brackets
  • No. of channels: 4
  • No. of inputs: 5
  • Mic input: 1 mV/600 Ω, 2 x 6.3 mm jack, balanced
  • Line input: 100 mV/10 kΩ, 3 x RCA L/R
  • Master output: 1-3 V/100 Ω, 2 x RCA L/R
  • Record output: 1 V/100 Ω, 1 x RCA L/R
  • Headphones: ≥ 32 Ω, 2 x 15 mW, 1 x 6.3 mm jack
  • Frequency range: 20-20,000 Hz
  • THD: 0.05%
  • S/N ratio: > 60 dB
  • Equalizer
    Bass: ± 12 dB/30 Hz
    Midrange: ± 12 dB/1 kHz (voice only)
    Treble: ± 12 dB/12 kHz
  • Power supply: ˜ 230 V/50 Hz/10 VA
  • Mains voltage: ˜ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation: 10 VA
  • Admissible ambient temperature: 0-40 °C
  • Width: 482 mm
  • Height: 45 mm
  • Depth: 180 mm
  • Rack spaces, RS: 1
  • Weight: 2.9 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight2.9 kg
Dimensions18 × 48.2 × 4.5 cm

6.3mm Jack, RCA Phono







Monacor is one of Europe’s largest distributors of PA sound and lighting equipment. Monacor understand public address and sound reinforcement comprehensively and offer a diverse range of products for all commercial sound and lighting needs. In addition to classic sound systems for sound reinforcement such as music systems, amplifiers, loudspeakers, and mixing desks, the full portfolio also includes complex conference systems, accessories for voice alarm or mobile amplifier systems, as well as induction loop sound systems, 100v line PA and megaphones. Whether you want to bring sound to one person or thousands: Monacor has the right solution for you. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!
