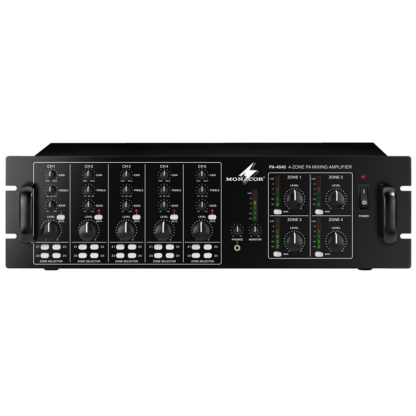

Monacor PA-4040MPX 4-Zone Mixer

Description

Monacor PA-4040MPX 4-zone public address mixer / pre-amplifier allows you to have music in one area while running the quiz night in another. Ideal for clubs, pubs and bars etc.

Requires amplifiers & speakers etc. to work. Also available as PA-4040 and PA-12040 mixer-amplifiers

• 3 inputs microphone/line via combination jacks
• 2 inputs line stereo via RCA jacks
• Each input channel with gain control, 2-way tone control, channel mute switch and routing switch for zones
• Microphone inputs with +15V phantom power, can be switched on additionally as required
• Priority function for channels 1-3, switchable
• Independent paging input, can be routed to all zones
• 4 zone outputs, can be controlled individually
• Zone and monitor line outputs for amplifiers or recorders
• Level control via VU meters for zone and monitor
• Adjustable headphone output
• 230V mains operation
• Channels: 5
• Zones: 4
• Inputs: 5 mV/4 kΩ, 100 mV/10 kΩ (mic/line), 100 mV/30 kΩ (line)
• Frequency range: 50-17,000 Hz
• Equalizer bass: ± 10 dB/100 Hz
• Equalizer treble: ± 10 dB/10 kHz
• S/N ratio: > 65 dB (mic), > 75 dB (line)
• THD: < 1%
• Power supply: ˜ 230 V/50 Hz/20 VA,
• DC current: 24 V/600 mA
• Mains voltage: ˜ 230 V
• Mains frequency: 50 Hz
• Power consumption, operation: 20 VA
• Operating voltage (possible alternative): DC current 24 V
• Power supply (possible alternative): DC current 600 mA
• Admissible ambient temperature: 0-40 °C
• Dimensions: 482 x 133 x 220 mm, 3 RS
• Width: 482 mm
• Height: 133 mm
• Depth: 220 mm
• Rack spaces, RS: 3
• Weight: 4.5 kg

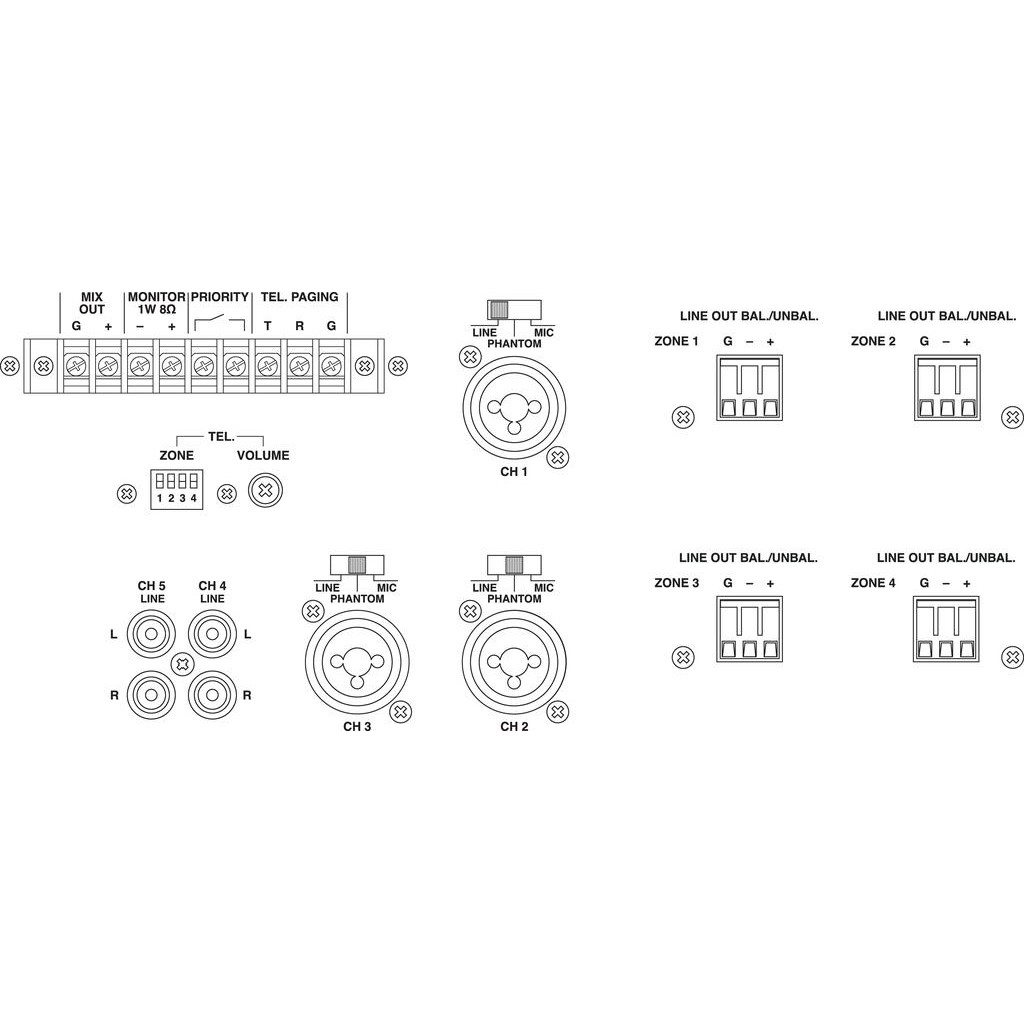

• Connections: 3 x combo 6.3 mm/XLR (mic/line), 2 x RCA L/R (line), 4 x plug-in screw terminal (zones), screw terminal (monitor speakers), screw terminal (mix out), screw terminal (paging), screw terminal (priority)

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
