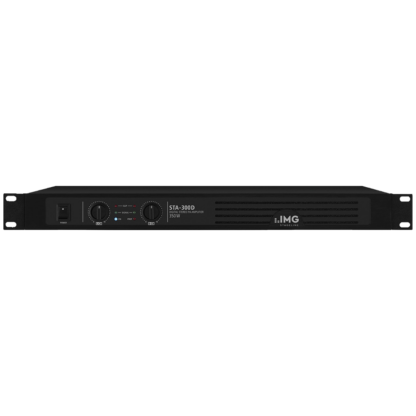

IMG Stageline STA-300D digital power amplifier

£109.15 £130.98 incl. VAT

150+150w stereo digital slave power amplifier

PDF

Description

IMG Stageline STA-300D 150+150w digital stereo power amplifier

  • Class D concept
  • 2 operating modes can be selected (stereo or bridged)
  • Limiter function can be switched on additionally
  • 2 level controls
  • Temperature-controlled fan
  • Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
  • Each channel with LEDs for indicating overload (clip) and signal
  • Channels: 2
  • Power rating: 300w
  • Power rating at 4 Ω: 2 x 150w
  • Power rating at 8 Ω: 2 x 100w
  • Power rating with 8 Ω bridged operation: 1 x 300w
  • Peak music power output (PMAX): 350w
  • Inputs: 1 V/12 kΩ
  • Frequency range: 20-20,000 Hz
  • Integrated limiter: yes
  • S/N ratio: > 96 dB
  • Crosstalk attenuation: > 70 dB
  • THD: < 0.05%
  • Power supply: ˜ 230 V/50 Hz/510 VA
  • Mains voltage: ˜ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation: 510 VA
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 482 x 52 x 290 mm, 1 RS
  • Width: 482 mm
  • Height: 52 mm
  • Depth: 290 mm
  • Rack spaces, RS: 1
  • Weight: 3.7 kg

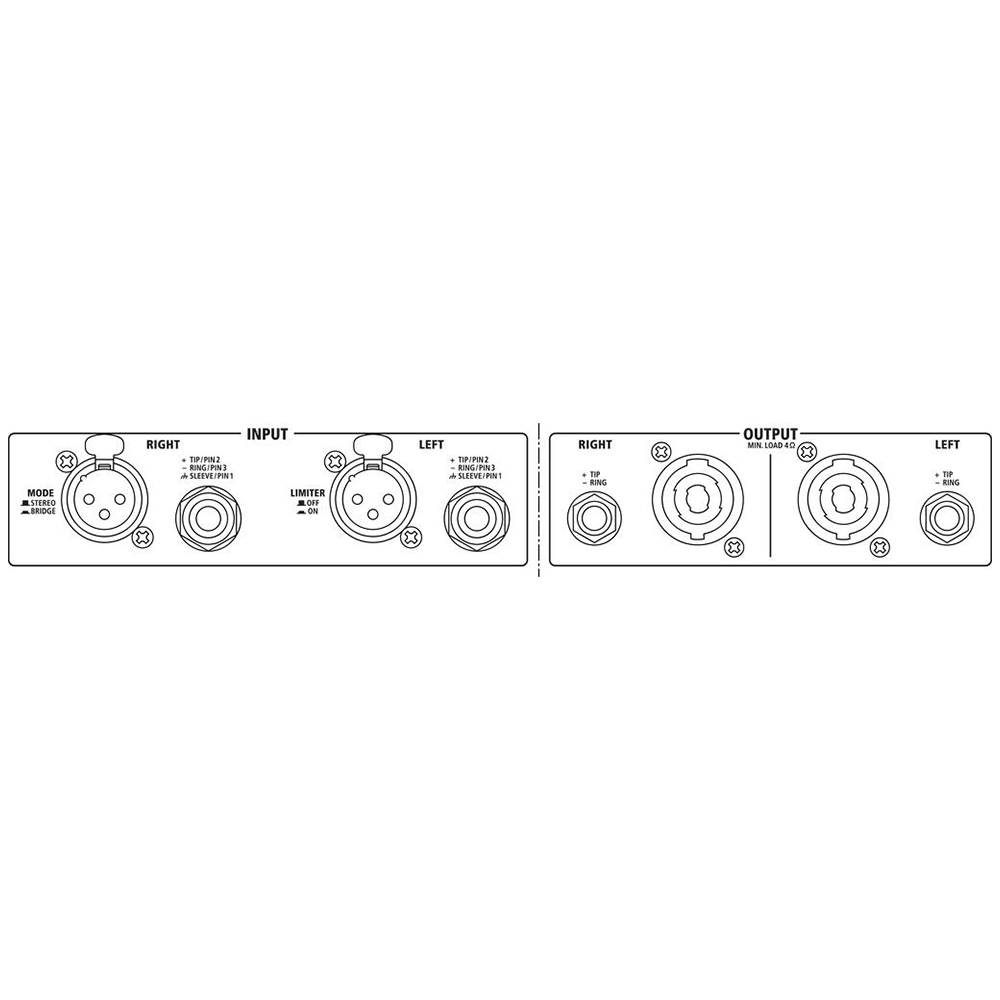

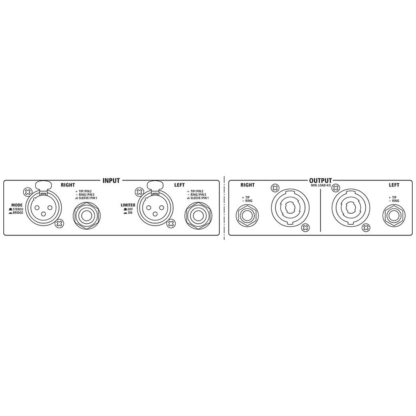

  • Connections: 1 x 3-pole XLR L/R, 1 x 6.3 mm jack L/R, 1 x Speaker L/R

Brand

IMG Stageline

Additional information

Weight 3.7 kg
Dimensions 29 x 48.2 x 5.2 cm
