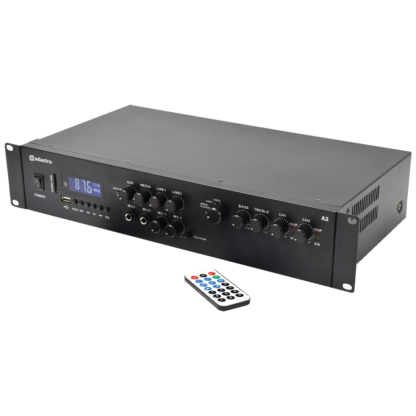

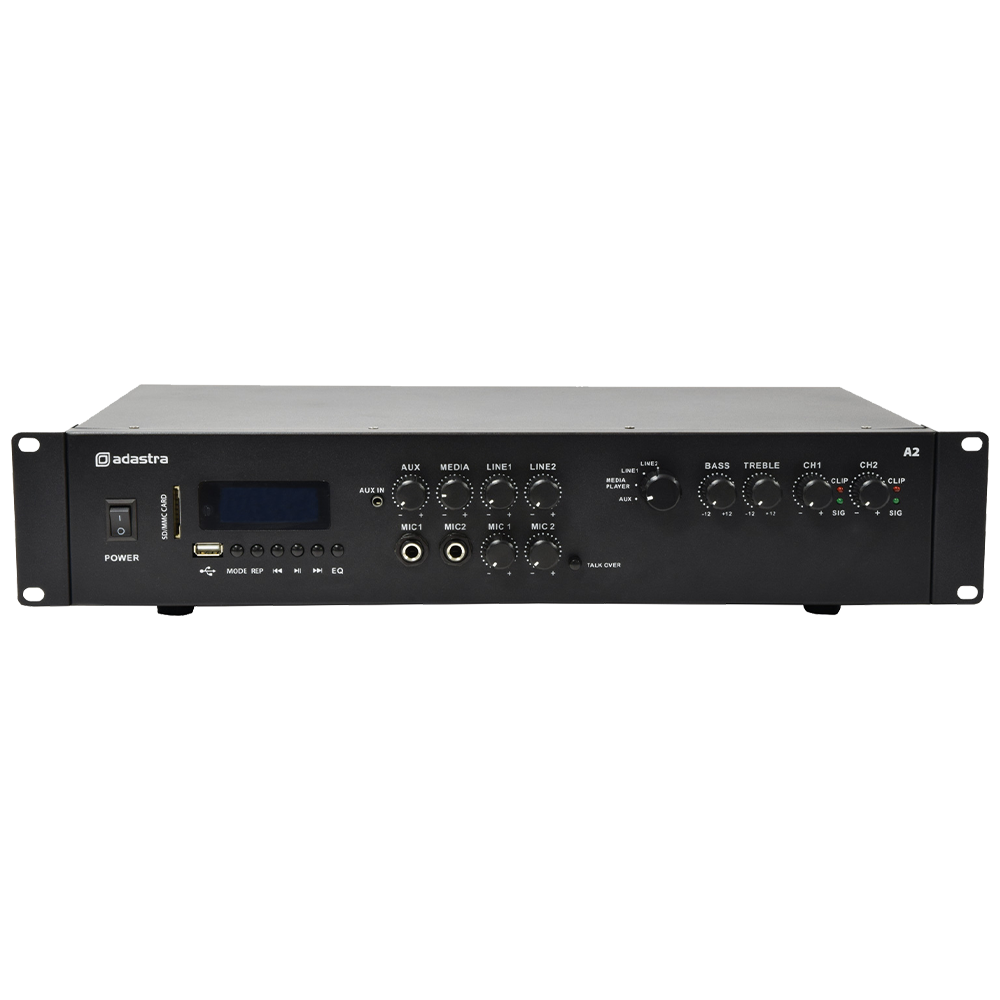

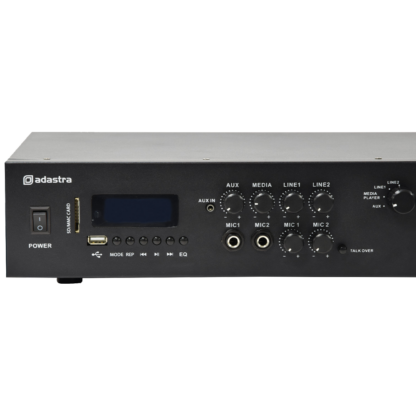

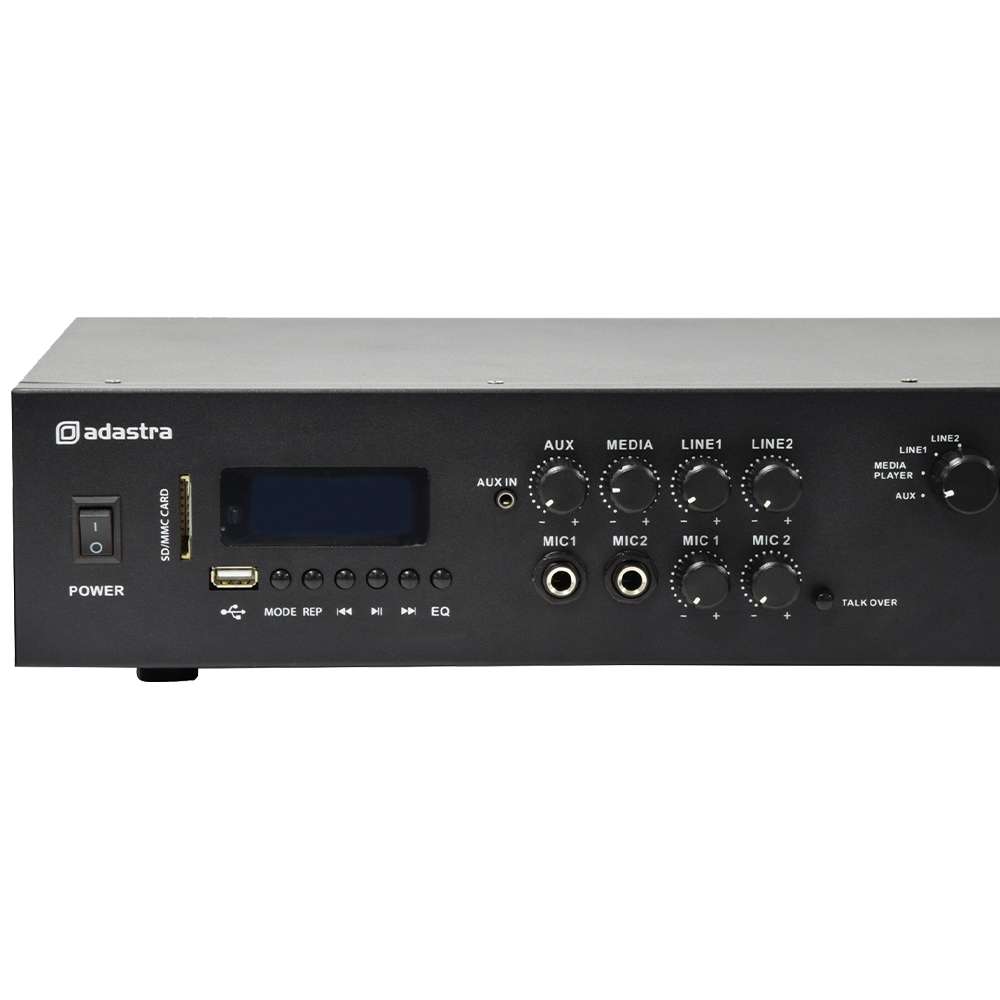

Adastra A2 2 x 100w stereo mixer amplifier with Bluetooth and media player

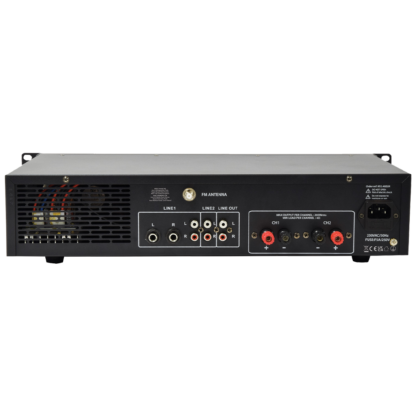

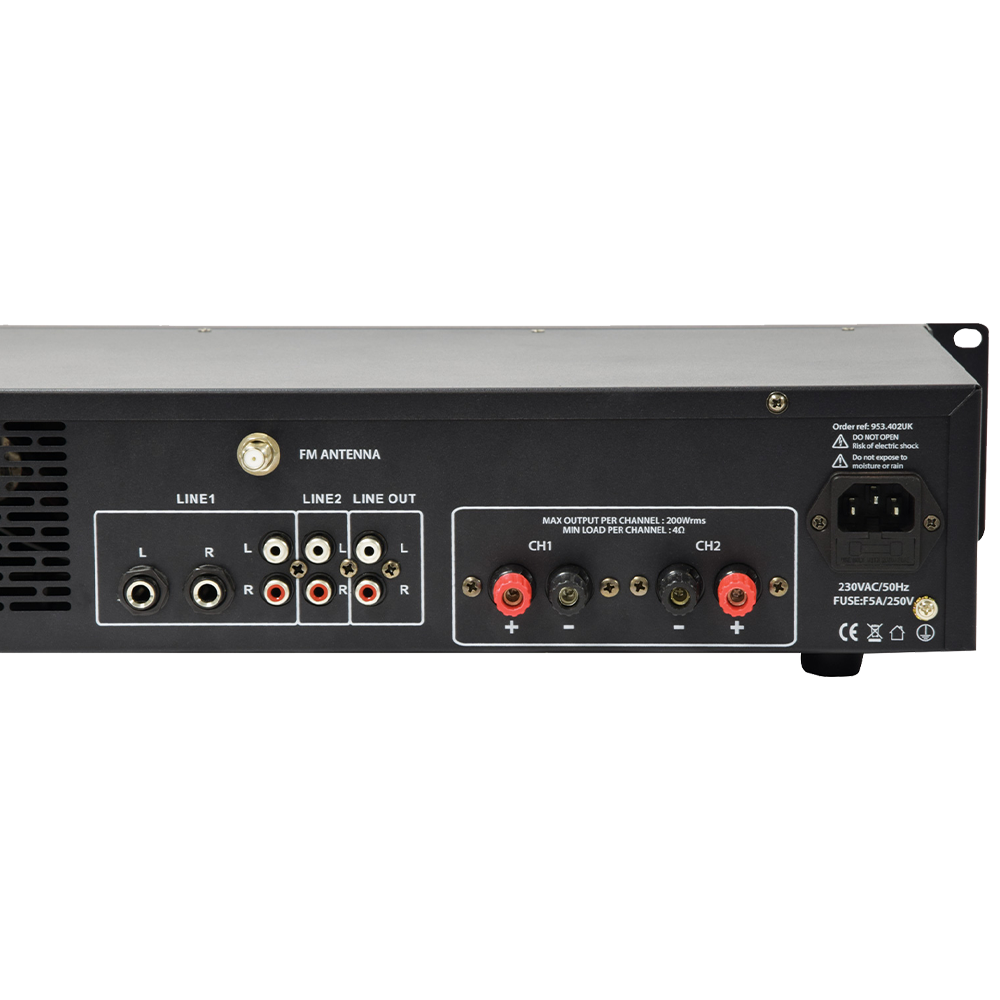

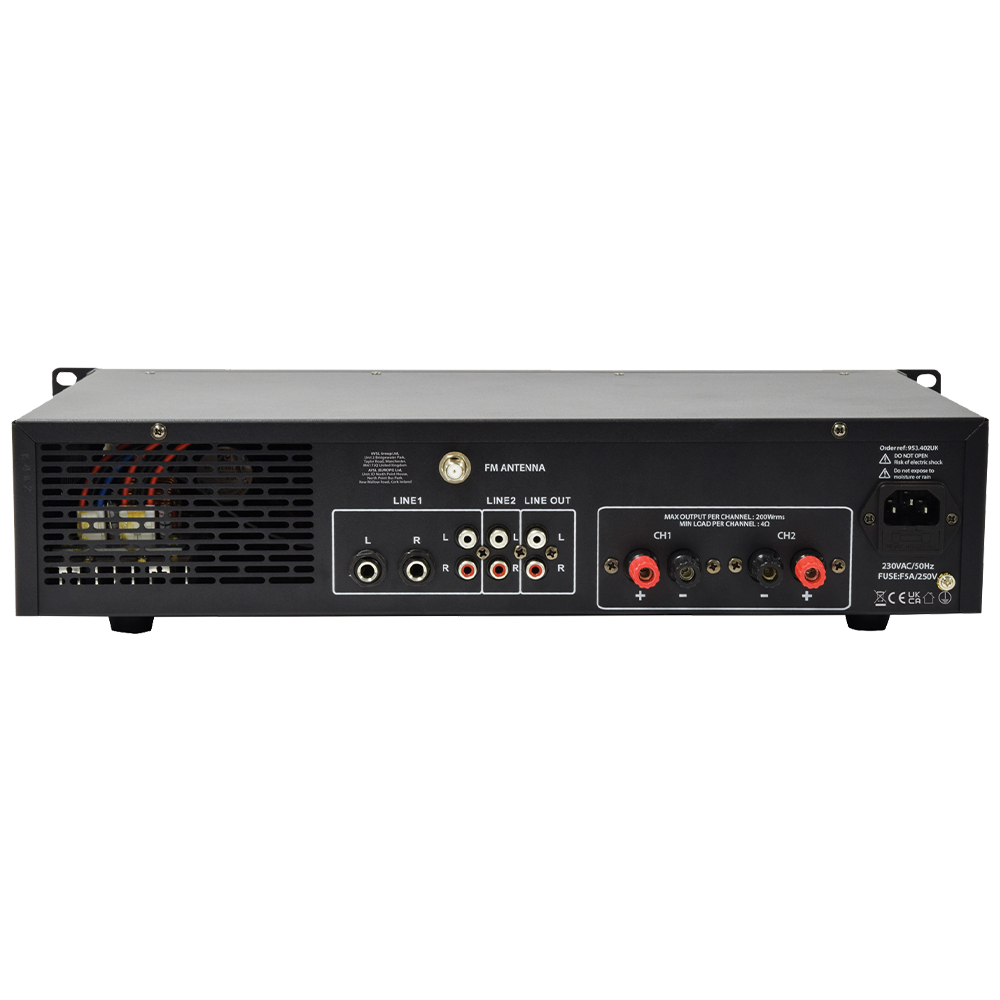

Fully featured stereo amplifier with mixer section for 2 microphones and a stereo audio source. An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a Bluetooth receiver and FM radio tuner. A rotary switch selects between 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2 x 8 Ohm speakers per channel to deliver 2 x 200W with the A2 amplifier. Designed to offer installers a flexible solution for PA and music playback in bars, restaurants, function rooms and the home.
- Stereo / 2 zone version
- Power consumption max.: 280W
- Output power rms @ 4 Ohms: 2 x 200W
- Output power rms @ 8 Ohms: 2 x 100W
- Media player with USB/SD playback
- FM radio tuner with external aerial connection
- Bluetooth receiver
- Power supply: 230Vac, 50Hz (IEC)
- Fuse: F5A, 250V
- Amplifier : construction: Class D
- Frequency response: 20Hz – 20kHz ±0.5dB
- Microphone inputs: 2 x 6.3mm jack (mono)
- Line inputs: Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
- Input sensitivity : line: 0.775Vrms
- Auxiliary input: 3.5mm stereo jack
- Input sensitivity : aux: 0.480Vrms
- Input impedance: 20k Ohms (balanced), 10k Ohms (unbalanced)
- Audio source: USB/SD mp3 playback, FM tuner, BT receiver

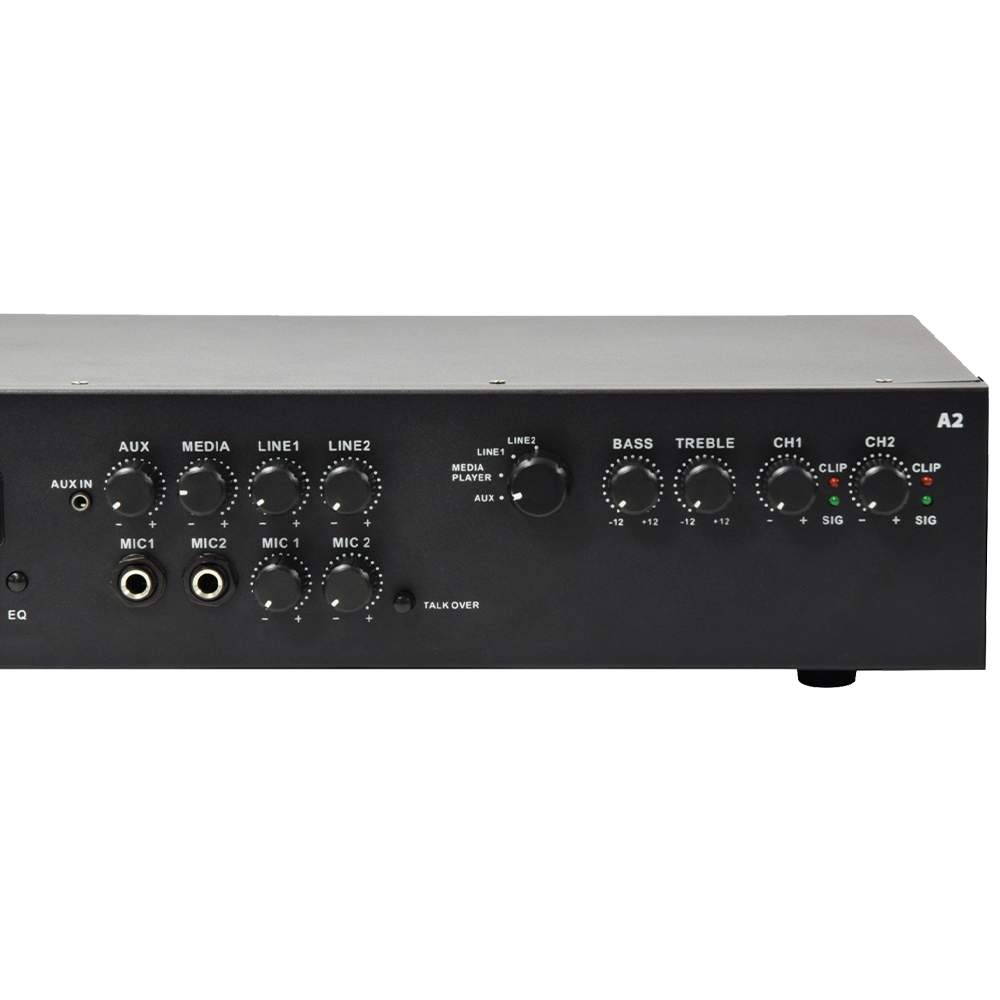

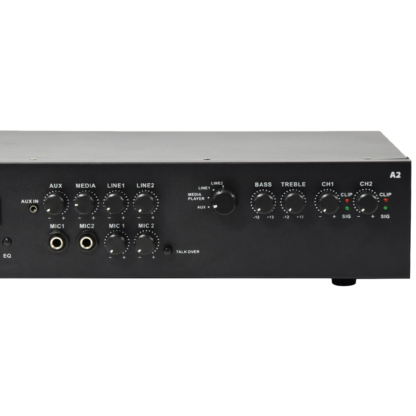

- Input controls: Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
- Antenna connection: F type (FM tuner)
- Dynamic range: 92dB
- THD +N: <0.1%
- Protection: Thermal, over-current, over-voltage, short-circuit
- Dimensions: 482 x 240 x 88mm
- Line output: 2 x RCA
- Speaker outputs: 4mm binding posts (2 channels)
- Output controls: Source select, Bass, Treble, Ch1, Ch2
- Weight: 5.24kg
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
