Description
SF 120w ‘soundfield’ sound reinforcement systems are for classrooms, meeting and conference rooms etc.
Available with up to 12 x white wall ceiling speakers
SF Series public address PA sound and music systems include a professional 120w, 4 input mixer amplifier with Bluetooth connectivity, integral MP3 media player, twin wireless microphone set with two handheld microphones and a headworn microphone and bodyworn transmitter option for the teacher (only two of the wirless mics can be used at the same time) and up to 8 x white ceiling loudspeakers
Each system is complete with loudspeaker cable, MP3 audio input leads etc. and installation guide ready for you to install
‘Soundfield’ systems are easily expandable to include induction loops for the hard of hearing, links to your multimedia installation and inputs and outputs to your laptops, media recorders etc.
This package must be wired as a 100v line sound system – please see user manuals tab
Mixer Amplifiers:
- 120w RMS
- Power supply: 170-264Vac, 50Hz (IEC)
- DC power: 24Vdc (screw terminals)
- Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
- Input sensitivity : mic 1 (balanced): -53dBV
- Input impedance : mic 1: 5k Ohms
- Input sensitivity : line (unbalanced): -15dBV (-18.5dBV line 5)
- Input impedance : inputs 2-5: 1k Ohms
- Line output: RCA
- Speaker outputs: 4 switched + 1 non-switched 100V / 4-16 Ohms / COM
- Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
- Equaliser : bass: 100Hz ±10dB
- Equaliser : treble: 10kHz ±10dB
- Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
- Phantom power: +20V (mic 1 XLR, switchable)
- Audio source: DAB+/FM tuner, USB/SD player, Bluetooth receiver
- Emergency control: 24V contacts – mute all except Mic.1 when triggered
- Bluetooth version: 5.0
- THD: <1.0%
- Output power : rms: 120W
- Fuse: T3.15A
- Dimensions: 433 x 320 x 88mm
- Weight: 6.36kg
- Use terminal block to extend speaker cable
- Do not short speaker cables together

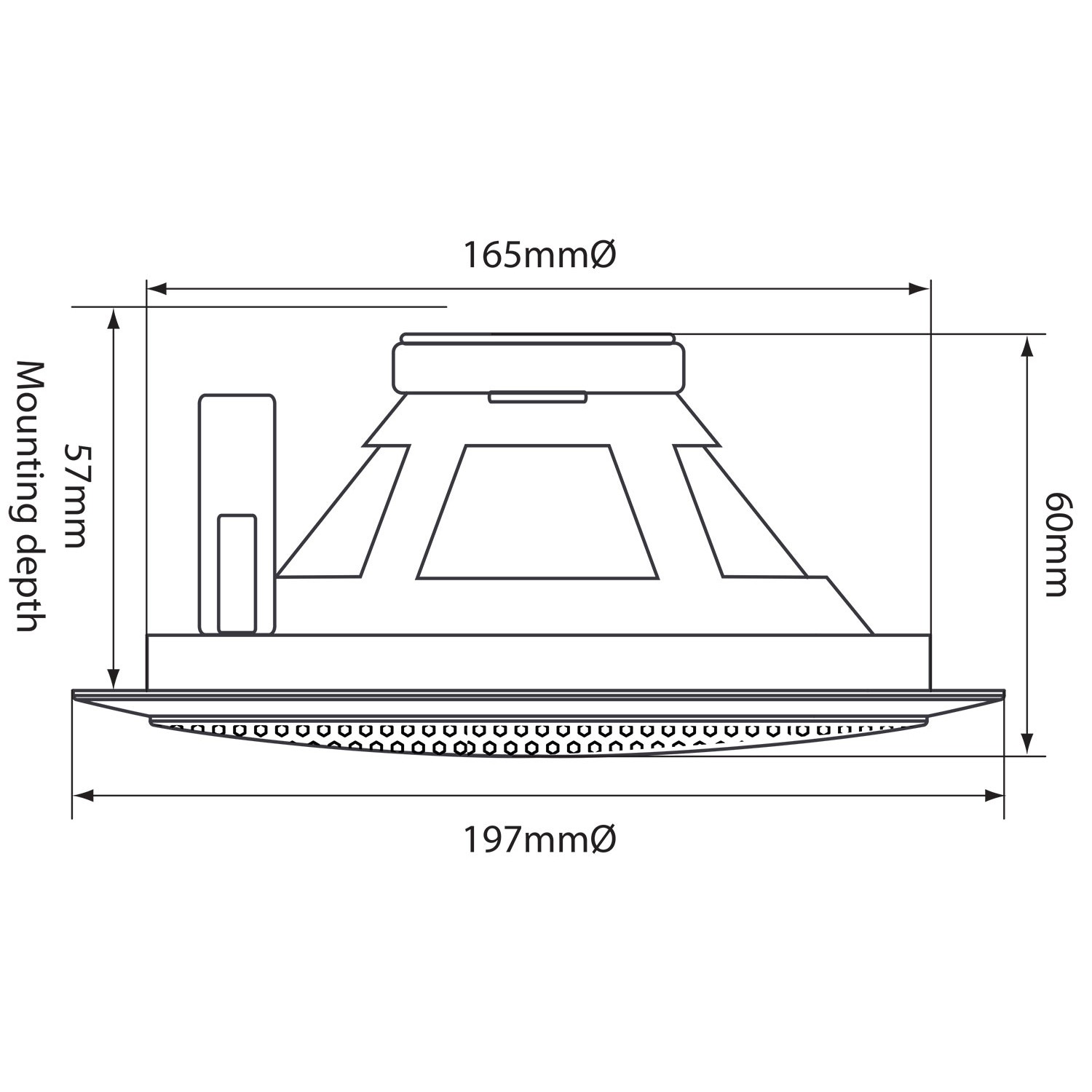

Ceiling Speakers:
- 100V line operation with power tap selector
- For a ceiling thickness from 5 to 22mm
- Full range speaker
- Metal basket and protective grille construction
Wireless Microphones:
- UHF hand-held wireless microphone
- UHF bodyworn wireless microphone with headband mic
- UHF twin wireless microphone receiver
- Free standing or rack installation
- Channel 70 – UK licence free

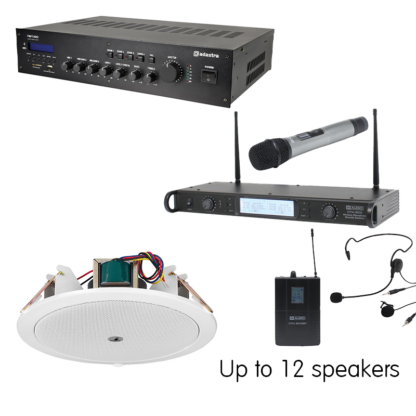

System Includes:
- 1 x 120w mixer amplifier with Bluetooth and media player
- Up to 12 x white ceiling speakers – see options
- 1 x Handheld wireless microphone
- 1 x Beltpack wireless microphone with headmic
- 2 x Input connector leads for MP3 players etc.
- 100m speaker cable
Sound Services deliver this complete sound system without extra charge to most mainland UK addresses
Speaker cable assembly and installation of these systems require some DIY assembly skills – you should only require basic DIY tools together with speaker, amplifier and cable fixings etc.
Constant development means that illustrations are only representative and items supplied may be newer or improved models that are available at the time of your order
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
Not quite right for you?
Ask us to quote a custom PA sound system
