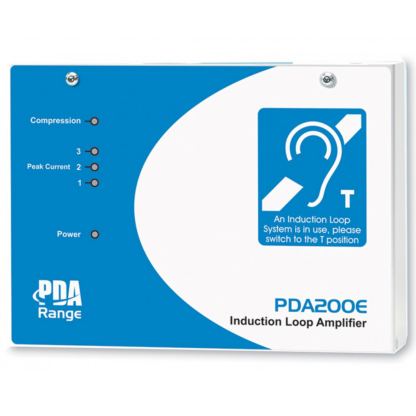

Signet PDA200E induction loop amplifier

£219.60 £173.60 £208.32 incl. VAT

200m² wall mount induction loop amplifier

In stock

induction loop

PDF

Description

Signet PDA200E is a cost-effective induction loop amplifier that is designed to drive a perimeter loop of up to 200 square metres in Churches, public buildings, meeting halls, sports venues and schools etc.

  • Fully compliant as a perimeter loop system as described in BS7594, clause 10 A3 & BS EN 60118-4 when correctly installed
  • Up to 200m² (metal free) coverage – ideal for most ‘free space’ applications
  • Two balanced / unbalanced line level inputs
  • One microphone input with phantom power for electret microphones (12V)
  • Full compatibility with the Outreach plate audio input extension system
  • Metal compensation control to improve intelligibility in rooms with high metal content
  • Fully automatic compressor-limiter which maintains the loop signal for improved intelligibility
  • Each input has a separate internal tamper-resistant control that can be manually adjusted
  • Compression, output (Peak Current 3, 2, 1) and power on (Power) front panel indicators
  • Short circuit protection
  • Internal temperature safety cut-out to stop over heating
  • Wall-mounted metal enclosure for a permanent robust installation
  • Wall-mounted metal enclosure for a permanent robust installation
  • Complete with installation kit, instructions and ‘loop fitted’ sticker
  • Contractor kits available – suitable for use in meeting rooms, TV lounges, places of worship, etc.
  • External Depth: 77mm
  • External Length / Height: 200mm
  • External Width: 273mm
  • Frequency Response Max: 5kHz
  • Frequency Response Min: 100Hz
  • Supply Voltage V AC: 230V
  • Weight: 2.9kg

Brand

Signet

Since its formation in 1994, SigNET has firmly established itself at the forefront of the life safety audio communication industry. As one of the world’s leading manufacturers of audio life-safety equipment, we design products to meet the needs of our customers and the requirements of the relevant British and European standards. SigNET’s portfolio of market-leading products includes the UK’s widest range of audio-frequency induction loop equipment (AFILS), multiple award-winning voice alarm/public address systems and one of Europe’s most respected disabled refuge/emergency voice communication systems.

Additional information

Weight2.9 kg
Dimensions7.7 × 27.3 × 20 cm
Induction Loop Coverage

Up to 200m²

Connection

Screw Terminals

Condition

New

Colour

Blue, White

User Manuals

Manual

Loop System Installation
