Description

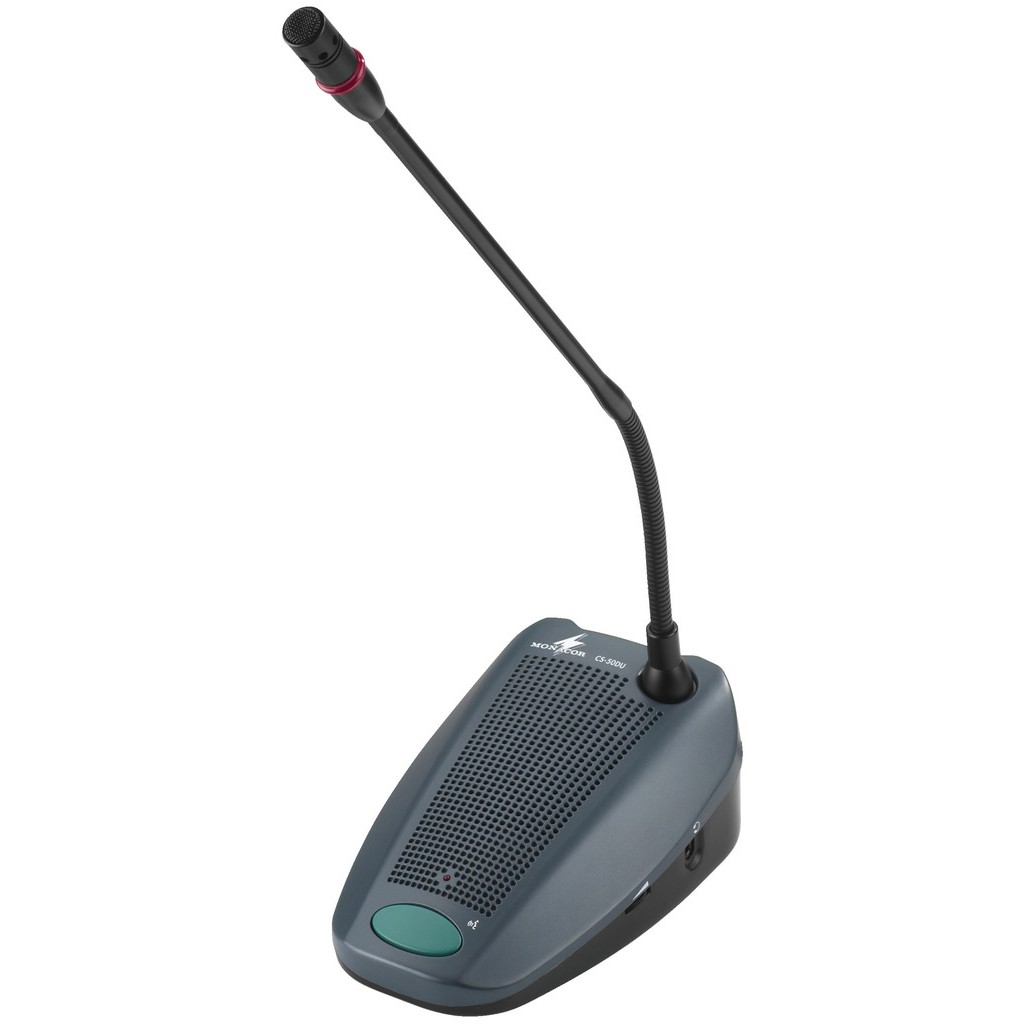

JTS CS-1DU delegates’ conference microphones
Part of the CS-1 Conference system. The CS-1 DU Delegate unit enables the attendants to participate in a discussion by speaking through a microphone, controlled by a microphone ON/OFF push-button, and listening to discussion by the internal loudspeaker and external headphone. Requires an optional Chairman unit and optional delegate units for a complete system.
The delegate unit enables the attendants to participate in a discussion by speaking through a microphone, controlled by a microphone ON/OFF push-button, and listening to discussion by the internal loudspeaker and external headphone.
Professional conference sound system for council chambers, boardrooms and meeting venues control unit requires 1 chair person microphone and up to 49 delegate units – delegate microphones can be converted to passive or press / reporter units by removing the microphone stem.
The microphone station for the chairperson CS-1CH and the microphone station for conference delegates CS-1DU together form a conference discussion system with extensive configuration facilities for maximum flexibility.
- Back electret cartridge of cardioid characteristic optimised for voice transmissions
- Built-in speaker and connection for optional headphones
- Convenient operation due to large function button
- Status displays on the microphone and desktop station
- System: back electret
- Audio frequency range: 50-18,000 Hz
- Power supply: via control unit CS-1CU
- Gooseneck length: 400 mm
- Dimensions: 115 x 65 x 170 mm (console housing)
- Weight: 1.1 kg
- Connection: 2 x 3.5 mm jack, 1 x 2 m connection cable with 7-pole DIN plug, 1 x 7-pole DIN jack
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
