Description

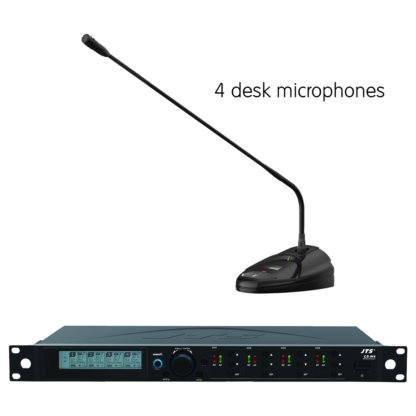

JTS CS-W4 Series conference wireless microphone set with 4-channel wireless conference receiver and 4 desktop wireless conference microphones
The CS-W4 wireless microphone conference system uses our latest technology to build a modular conference system which grows with your increasing needs. Offering 4 channels of wireless conference, more receiver units can be cascaded from the master using built-in antenna and mains distribution. With the W4-CH12 charging case, the CS-W4 system offers the ultimate of versatility, ease of use and price. The CS-W4T is the wireless conference microphone and transmitter for the CS-W4C. Incredibly easy to set up using Patended 2.4GHz REMOSET technology. Any microphone can be programmed to be chairman or delegate unit. Single or 12 way charging station available.
System Includes:
- 1 x CS-W4C wireless conference receiver
- 4 x CS-W4T wireless conference microphone
- 4 x XLR leads
CS-W4C
- Frequency oscillation: PLL Synthesized Control
- Carrier frequency: 470~960 MHz
- No. of channels: 4 channels
- Channel pairing: RF 2.4G (Remoset)
- Diversity antenna: diversity
- Bandwidth: 36MHz
- Signal/noise ratio: >105dB(A)
- Total harmonic distortion: <0.6%@1KHz
- Sensitivity: -95dBm，S/N>80dB
- Audio frequency response: 60Hz~16KHz±2dB
- Antenna connector: BNC female
- Antenna booster power: DC12V/100mA
- Display: LCD+LED
- Controls: Power On/Off, Groups, Channels, Frequency, Sensitivity, Key Lock, Volume, Output Attenuation (Xlr), Frequency Scan (On/Off), Antenna Power, Display Setting, Priority Setting, Remoset Id
- Number, Remoset Setting
- Audio output level (MAX): ψ6.3 Phone Jack：+4dBu, XLR Jack：+10dBu(Line)、-10dBu(MIC)
- Audio output impedance: 600Ω
- Mute: Noise mute and Pilot Tone
- Output port: 5 balance XLR ports, 1 unbalance φ6.3mm jack
- Logic Controller & Voltage Output: +5Vdc
- Automix Control Socket: in/out (8 pin mini DIN connecter)
- Power: AC 100~240 VAC
- Dimensions: 485mm L x 260mm W x 45mm H
- Weight: 2.4 kg
- Note: Actual Product specifications may vary depending on model and region

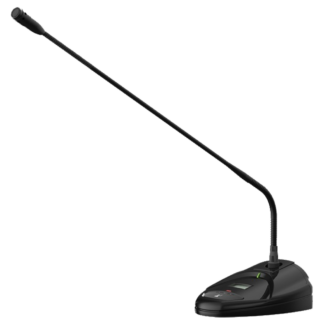

CS-W4T
- (This wireless microphone can also be used with the JTS R-4 wireless receiver to provide wireless gooseneck microphone)
- Frequency oscillation: PLL Synthesized Control
- Carrier frequency: 470~960MHz
- Bandwidth 108MHz (MAX): Pairing 2.4G RF (Remoset)
- RF power output: Low / High
- RF stability: <±10KHz＠Fc
- Frequency deviation: ±48KHz
- Spurious Emissions: <-50dBc
- Display: LCD
- Controls: Power ON/OFF, Talk, groups, channels, frequency, sensitivity adjustment, Remoset ID pairing, RF output, key lock, Low cut, Sync
- Battery: UM3, AA x 2
- Charging: Yes
- Dimension: 138mm(D)x 116mm(W)x 29mm(H)
- Weight: 0.76 kg
- Note: Actual Product specifications may vary depending on model and region
Sound Services deliver this conference wireless microphone set without extra charge to most mainland UK addresses
Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa
Please note that a maximum of 12 x CS-W4T series wireless microphone transmitters can be used with the appropriate 3 x number of CS-W4C receivers at any one time
Wireless microphone systems need to be connected to a public address PA sound system to work
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
