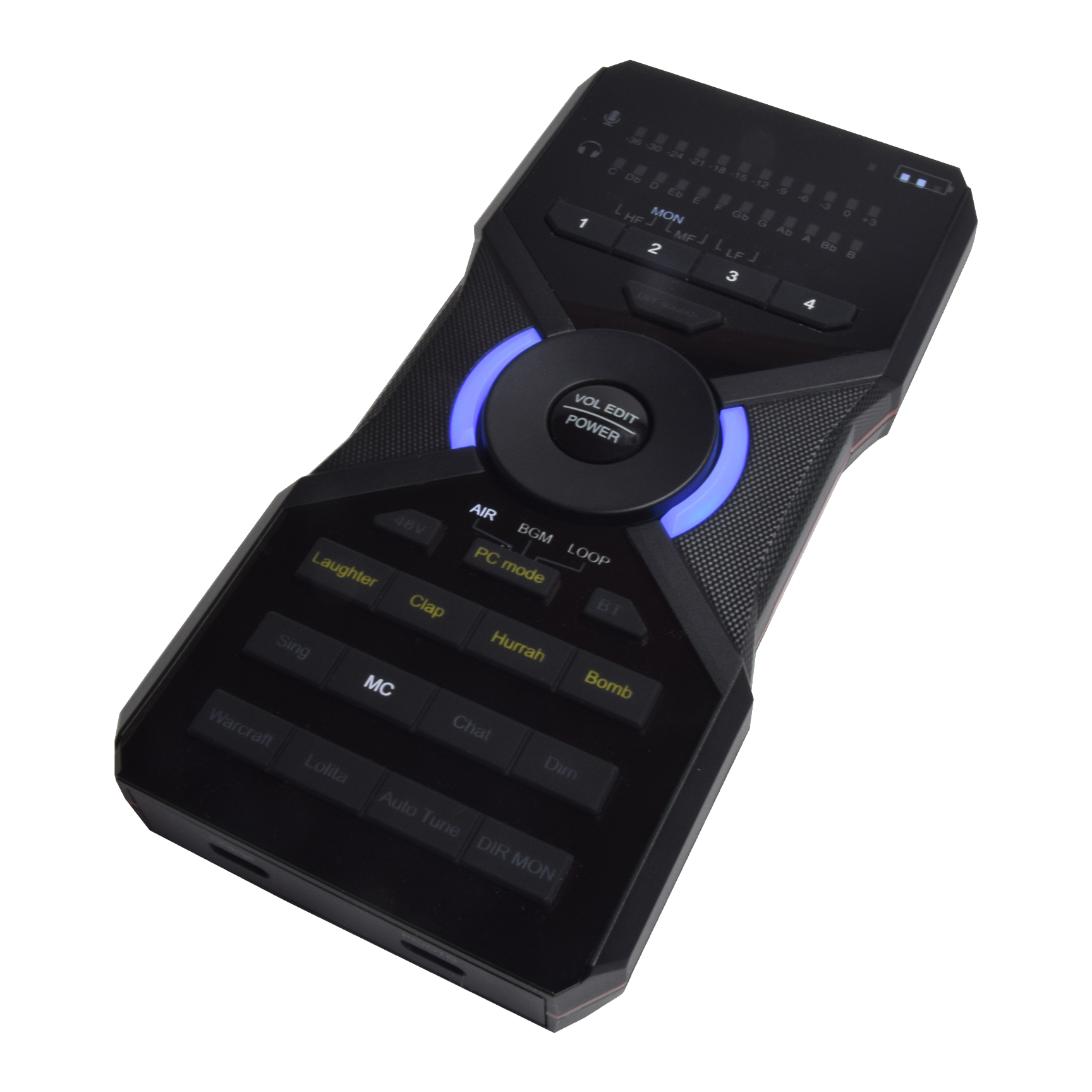

Citronic X-PAD Portable Audio Device

SKU: 173.640

£68.10 + VAT    £81.72 incl. VAT

Portable audio interface and microphone processor for podcasting

In stock

bluetooth
USB Type C
DSP

PDF

Description

Citronic X-PAD portable audio interface and microphone processor for podcasting

Fully portable audio interface and microphone processor for on-the-go podcasting and recording sessions. The X-PAD brings professional audio processing to a compact and convenient handheld device, cutting the need for bulky equipment out of the creative process. USB-C connection to a smart phone or laptop computer provides a full audio workstation with duplex recording and playback. Microphone input with phantom power option, digital reverb, pitch change and auto-tune processing. Multiple output connections for playback and monitoring via headphones or active speakers. Preset sound effects and user memory for soundbites and loops. All operation is from an internal Li-ion battery, rechargeable via USB. An indispensable companion for podcasts, singing demos and recording on location.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

  • Preset vocal effects and Auto-Tune
  • USB-C link to smart phone or laptop
  • Bluetooth connection for playback
  • Rechargeable via dedicated USB-C socket
  • Preset and user-recorded sound effects

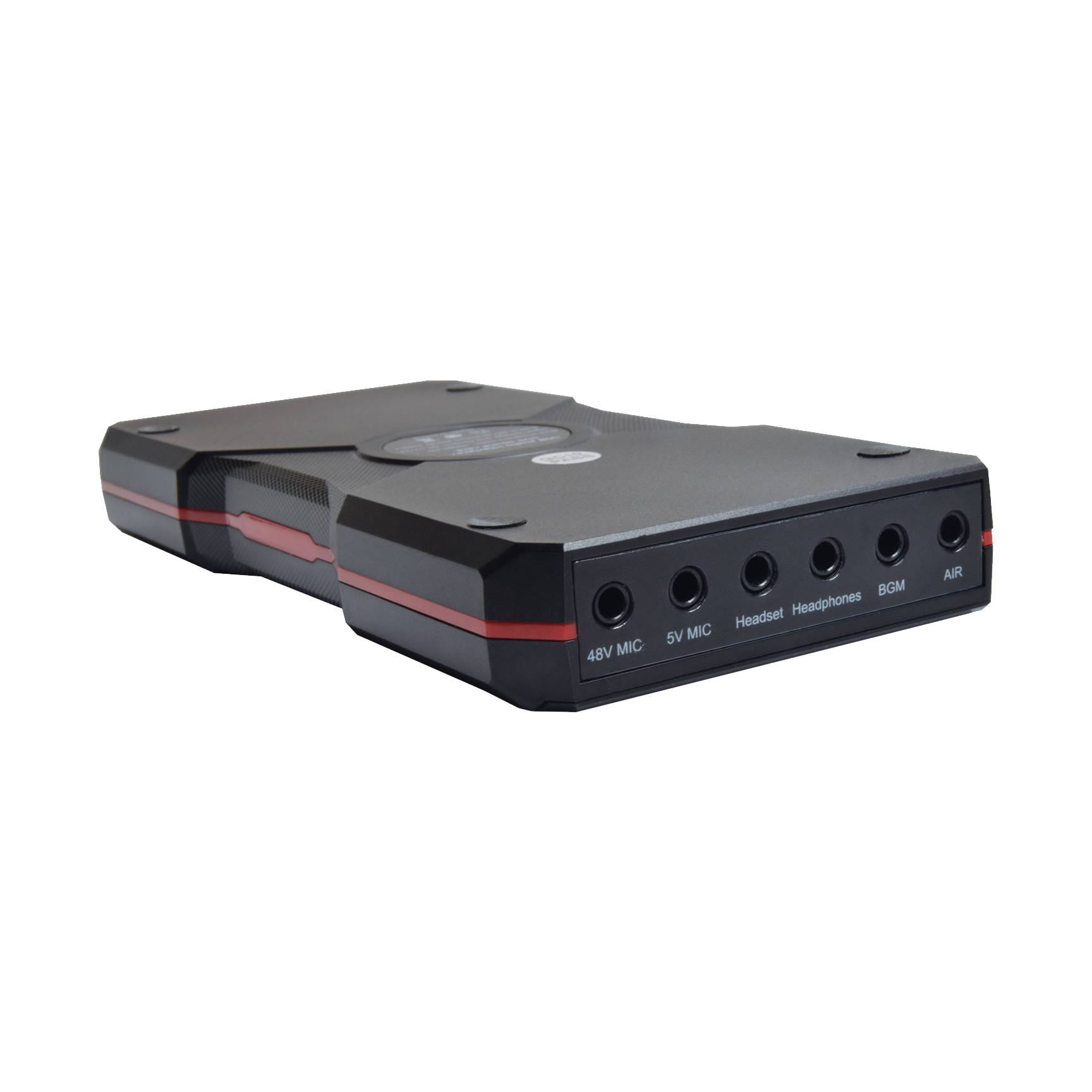

  • 3.5mm sockets for microphones, headset, phones, BGM and AIR
  • Inputs with 5V or 48V phantom power
  • Power source 3000mAh Li-ion battery or USB 5Vdc 2A

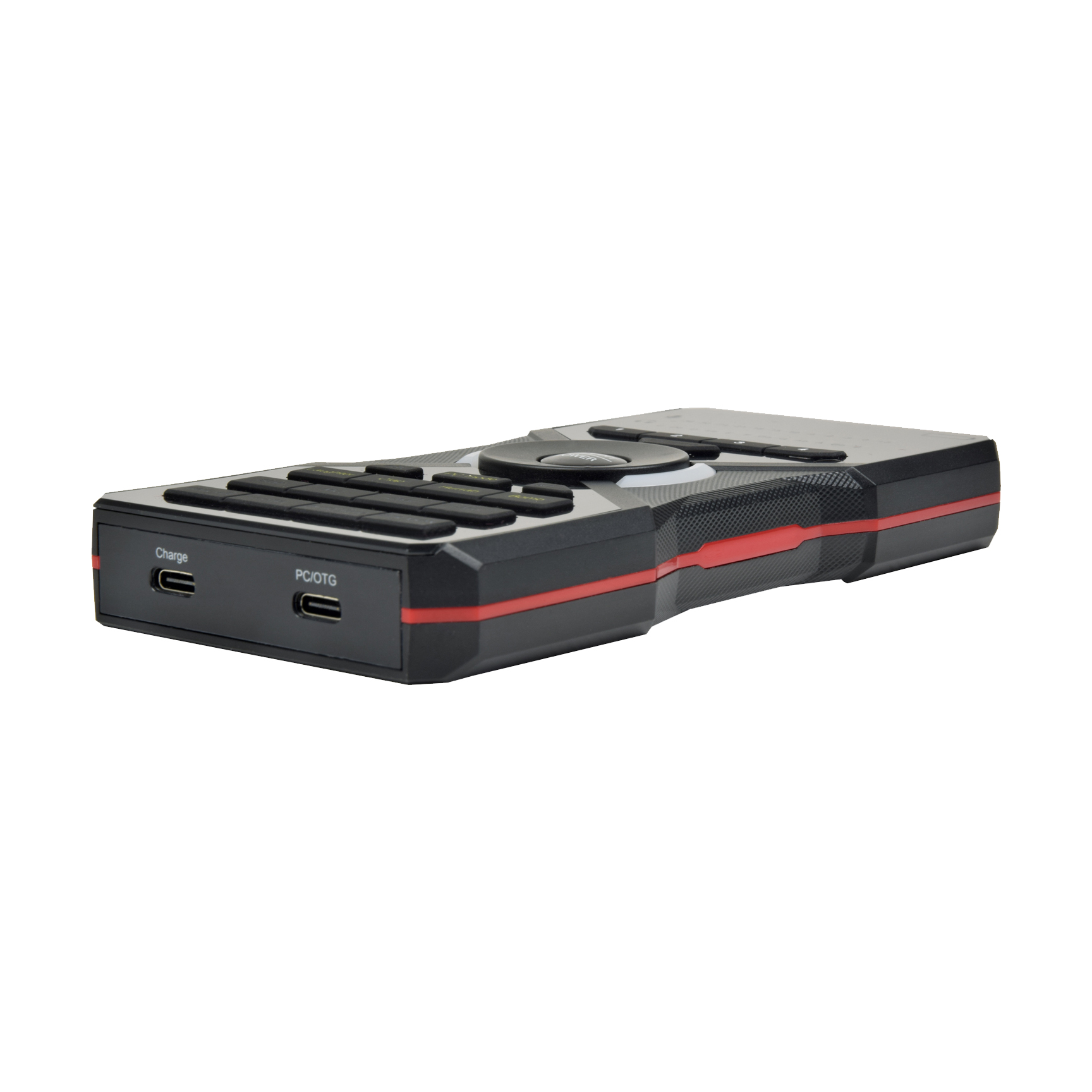

  • USB USB-C (PC/OTG – audio v.1.1) + USB-C (charge)
  • DSP sample rate: 48kHz, 16-bit (S/N 98dB)
  • Microphone : inputs: 3 x 3.5mm jack (Mic.1, Mic.2, headset)
  • Input impedance : mic: 2.2k Ohms (Mic.1), 10k Ohms (Mic.2 & headset mic)
  • Sensitivity : mic: -36dB (Mic.1), -26dB (Mic.2 & headset mic)
  • Sensitivity : line: -2dB
  • Phantom power: +48V (Mic.1), +5Vdc (Mic.2 & headset mic)
  • Frequency response: 100Hz-16kHz (mic), 20Hz-20kHz (line in) ±1dB
  • S/N ratio: ≥90dB (mic), ≥96dB (line in)
  • Dynamic range: ≥92dB (mic), ≥98dB (line in)
  • THD: ≤0.05% (mic), ≤0.02% (line in) @1kHz
  • Line input: 3.5mm stereo BGM input
  • Gain: Line in 12dB max.
  • Smart phone audio connection: 3.5mm TRRS jack (or via USB-C)
  • Headphone : connector: 3.5mm stereo jack
  • Headphone : impedance: 16-300 Ohms
  • Headphone : power: 100mW @16 Ohms (1kHz, ≤0.1% THD)
  • Dimensions: 162 x 78 x 21mm
  • Weight: 280g

Additional information

Weight0.28 kg
Dimensions16.2 × 7.8 × 2.1 cm

Brand

Citronic

A brand with history, Citronic is still going strong after 40 years. It has evolved to become a leader in the professional audio market and is now the ideal choice for installers, hire companies and mobile DJs. The comprehensive Citronic range offers reliable and durable products from loudspeakers through to DJ headphones. As a DJ and PA industry pioneer, Citronic developed many of the features that have since become industry standards. The Citronic philosophy has always been to push the barriers of quality and innovation, yet maintain a reputation for “out of the box” reliability with fully featured and affordable products. Over the last 10 years Citronic has taken strides to grow from a humble 30 products to over 200. This versatile range now covers simple home DJ plug & play set-ups and fully featured outboard equipment, right through to high-powered installations. This allows Citronic to service many sectors of the entertainment industry including pubs, nightclubs, hotels and studios, as well as supplying distinctive products DJs. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

User Manuals

What's in the Box?

  • X-PAD handheld portable audio device
  • USB A to C lead
  • USB-C OTG (on-the-go) lead
  • XLR to 3.5mm TRS jack microphone lead
  • 3.5mm 4-pole jack lead
