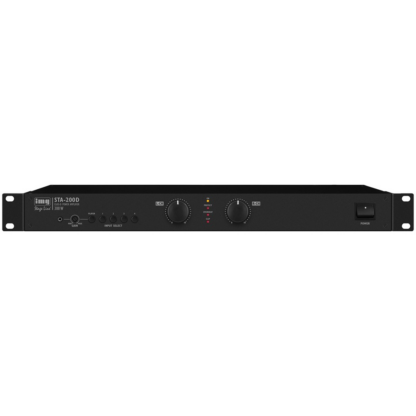

IMG Stageline STA-200D 2 x 75w RMS @ 8Ω digital stereo slave amplifier with 5 switchable line inputs
- Class D design
- Silent operation due to fanless cooling
- High power reserves due to generously dimensioned toroidal core transformer
- High-efficiency power amplifiers
- 3.5 mm connection with variable sensitivity on the front panel
- 2 level controls
- Protected against short circuit, overvoltage and overtemperature
- LEDs for indicating power, overload (clip), protect and overheating
- Slim, robust design
- Free standing or 1u 19″ rack mounting
- Power
4Ω: 2 x 125w RMS
8Ω: 2 x 75w RMS - Inputs: 1 V/23 kΩ (RCA), 90 mV-1 V (jack)
- Frequency range: 20-20,000 Hz
- S/N ratio: > 100 dB, A-weighted
- Crosstalk attenuation: > 56 dB
- THD: < 0.05 %
- Power supply: 230v AC operation
- Dimensions: 483 x 44 x 268 mm, 1u
- Weight: 4.7 kg

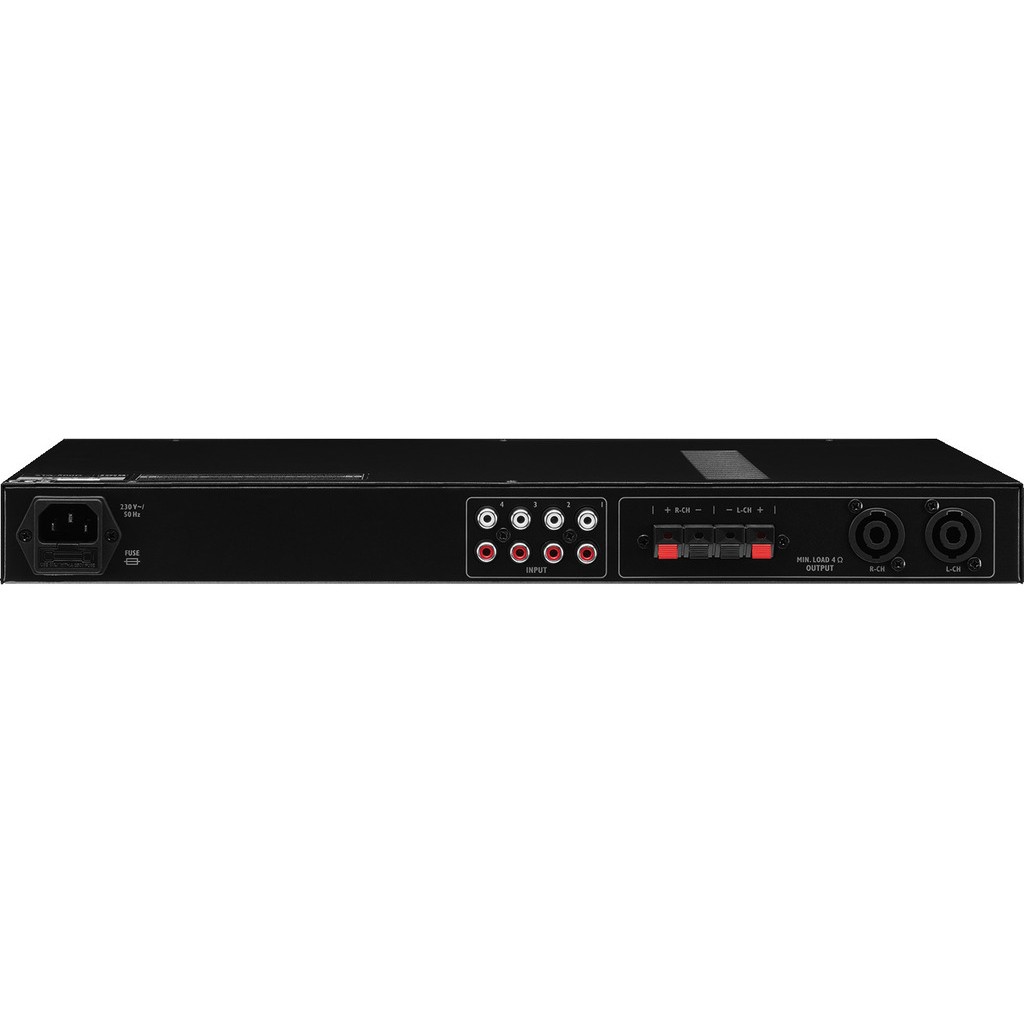

- Connections: 1 x 3.5 mm stereo jack, 4 x RCA L/R, 1 x Speaker L/R, 1 x spring-loaded speaker terminals L/R
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
