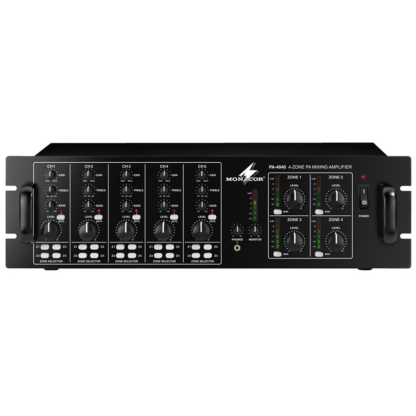

Monacor PA-4040 4-Zone Amplifier

Description

Monacor PA-4040 4 x 40w per zone public address mixer amplifier allows you to have music in one area while running the quiz night in another. The amplifier produces 40w RMS into each of the four (4) output zones into either 100v line or 8 ohm low impedance loudspeakers. Ideal for clubs, pubs and bars etc. Also available as PA-4040MPX mixer / pre-amp only

• 4 x 40w RMS, 100V and 4Ω/8Ω operation
• Perfect utilisation of the capacity and reliable protection of the connected speakers due to an integrated limiter
• 3 inputs microphone/line via combination jacks
• 2 inputs line stereo via RCA jacks
• Each input channel with gain control, 2-way tone control, channel mute switch and routing switch for zones
• Microphone inputs with +15V phantom power, can be switched on additionally as required
• Priority function for channels 1-3, switchable
• Independent paging input, can be routed to all zones
• 4 zone outputs, can be controlled individually
• Zone and monitor line outputs for additional amplifiers or recorders
• Connection for monitor speakers
• Level control via VU meters for zone and monitor
• Adjustable headphone output
• Temperature-controlled fan, continuously adjustable
• 230V mains operation
• Dimensions: 482 x 133 x 310 mm, 3 RS
• Weight: 15 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
