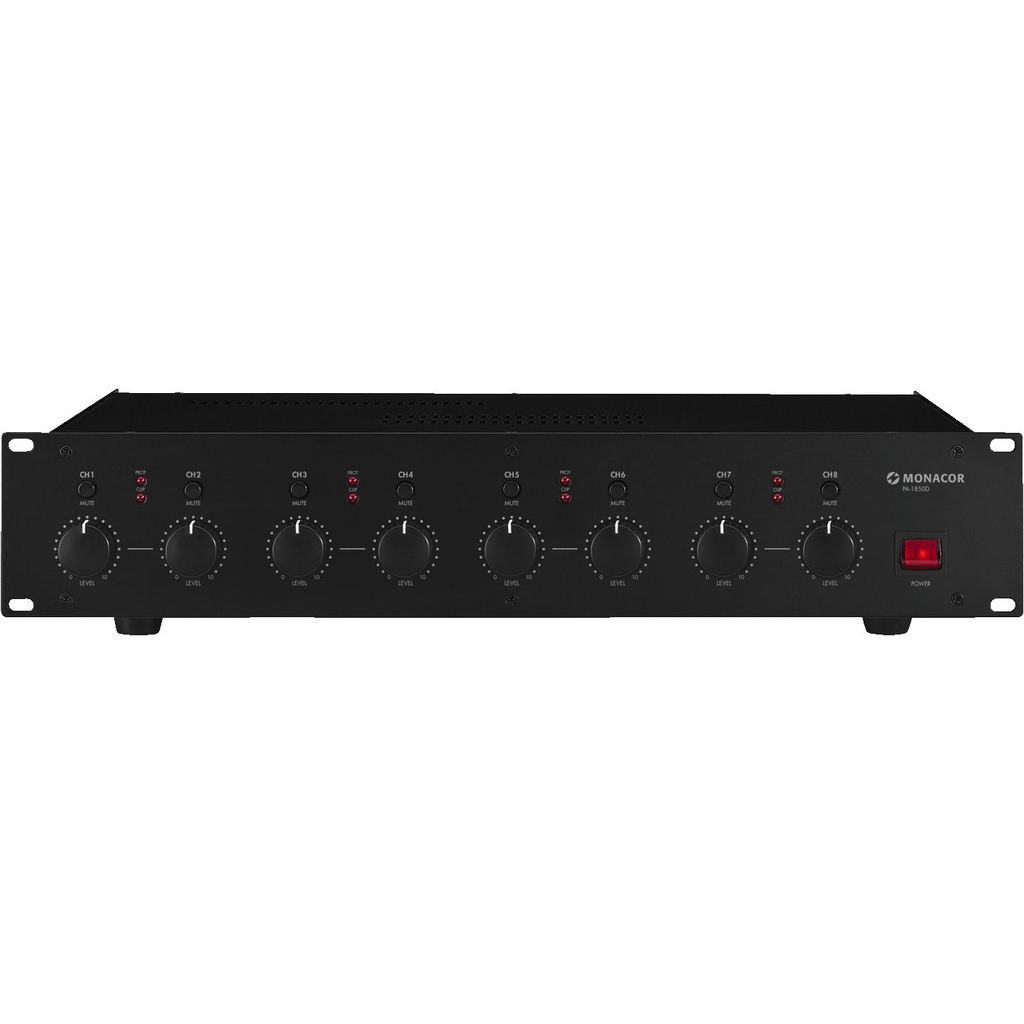

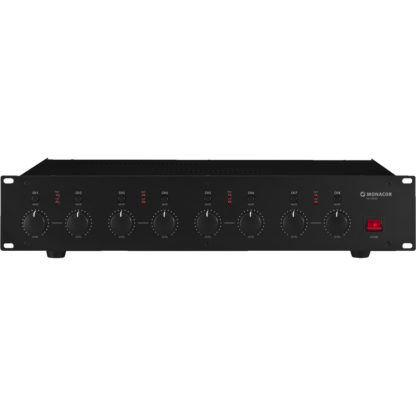

Monacor PA-1850D digital power amplifier

£472.90 £567.48 incl. VAT

8 x 50w 100v line digital slave power amplifier

stereo

PDF

Description

Monacor PA-1850D 8 channel 100v line digital PA power amplifier

  • 8 x 50 W
  • Class D concept with a high efficiency to cut energy costs
  • Requires a lower rechargeable battery capacity for emergency power operation than 100 V analogue amplifiers
  • Clearly reduced cooling requirements due to low heat loss
  • Silent operation due to fanless cooling concept
  • Mute function for each channel
  • Level control for each channel
  • LED indication for clip and protect for each channel pair
  • Protected against short circuit
  • Mains operation or 24 V emergency power operation
  • Output power: 8 x 50 WRMS/100 V, 8 x 50 WRMS/4 Ω
  • Input sensitivity: 1 V/20 kΩ unbal., 550 mV/20 kΩ bal.
  • Speaker output: 4 Ω, 70/100 V
  • Frequency range: 10-20,000 Hz
  • S/N ratio: > 65 dB
  • THD: < 0.5 %
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: 230 V˜/50 Hz/600 VA, 24 V DC current /18 A
  • Dimensions: 483 x 90 x 330 mm, 2 RS
  • Weight: 12.7 kg

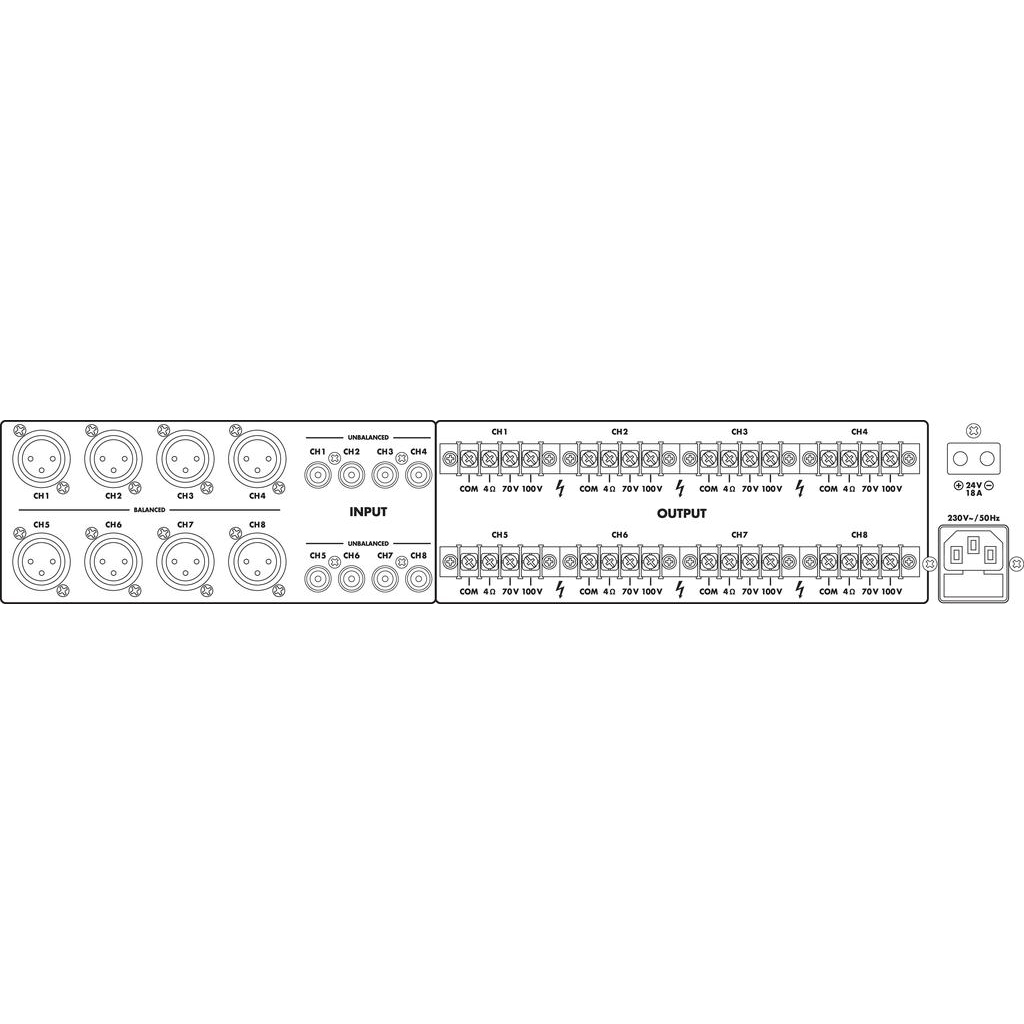

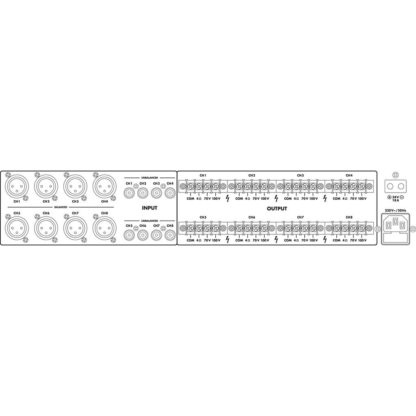

  • Signal input: 8 x XLR, bal., 8 x RCA
  • Speaker output: screw terminals

Brand

Additional information

Weight12.7 kg
Dimensions33 × 48.3 × 9 cm
