IP66
100v Line

Monacor IT-20 Horn Speaker

SKU: 160660

£46.85 £56.22 incl. VAT

100v line horn speaker

Available on back-order

PDF

Description

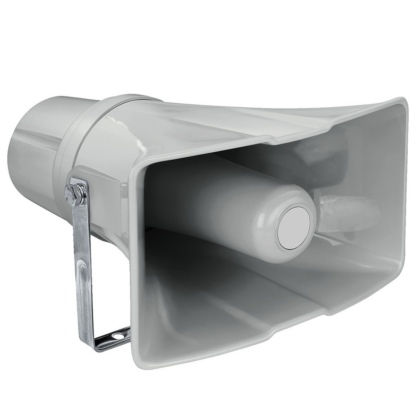

Monacor IT-20 15w 100v line horn speaker

Supplied singularly these horn speakers are available as:
IT-20: 15w RMS @ 100v (16.0660)

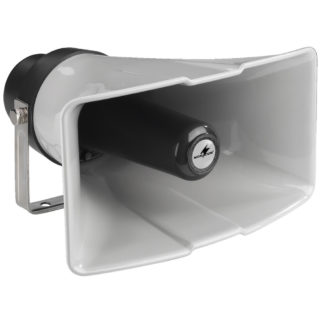

IT-35: 25w RMS
@ 100v (16.0870)
IT-40: 40w RMS @ 100v (16.1360)

High quality rectangular horn loudspeakers are suitable for 100v line sound systems only

Spare voice coil diaphragms available

  • 100V line operation
  • Weatherproof and IP66 tested
  • Protected against powerful water jets
  • Suitable for general large factory and outdoor applications
  • Robust plastic housing
  • Stainless steel mounting bracket
  • 4-step power selector switch
  • Power rating: 15/10/5/2.5 W
  • Frequency range: 275-7,000 Hz
  • Sensitivity: 106 dB/W/m
  • Radiation angle, horizontal: 100°
  • Radiation angle, vertical: 50°
  • Material (housing/cabinet): plastic
  • Protective class: IP66
  • Weather resistance: yes
  • Mounting facility: stainless steel mounting bracket
  • Features: power selector switch
  • Replacement voice coil: IT-230/VC
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: 250 x 145 x 300 mm
  • Weight: 2.0 kg

Brand

Monacor

One of Europe’s largest distributors of PA sound and lighting equipment. Here at Monacor UK, we understand sound reinforcement in a very comprehensive sense. We therefore offer our customers a diverse range of products for all of their sound and lighting needs. In addition to classic systems for sound reinforcement such as music systems, amplifiers, loudspeakers, and mixing consoles, our portfolio also includes complex conference systems, accessories for voice alarm or mobile amplifier systems, as well as inductive sound systems, 100v line PA and megaphones. Whether you want to bring sound to one person or thousands: Monacor UK has the right solution for you.

Additional information

Weight2 kg
Dimensions30 × 25 × 14.5 cm
Wattage (RMS)

15w

IP Rating

IP66

Colour

Grey
