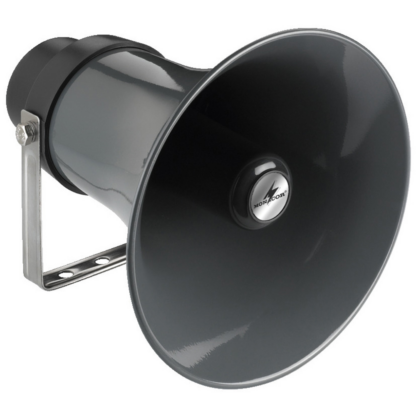

Monacor IT-30 Horn Speaker

Monacor IT-30 20w 100v line weatherproof horn speaker

• 100 V line operation
• Weatherproof and IP66 tested
• Protected against powerful water jets
• Suitable for general outdoor applications
• Aluminium housing
• Mounting bracket and screws made of stainless steel
• 4-step power selector switch
• Frequency range 250-10,000 Hz
• Power rating: 20/15/10/5 W
• Sensitivity: 108 dB/W/m
• Radiation angle, horizontal: 80°
• Radiation angle, vertical: 80°
• Features: power selector switch
• Material (housing/cabinet): aluminium
• Mounting facility: stainless steel mounting bracketActive/passive: passive
• Line operation: 100 V
• Frequency range: 250-10,000 Hz
• Power rating: 20/15/10/5 W
• Sensitivity: 108 dB/W/m
• Radiation angle, horizontal: 80°
• Radiation angle, vertical: 80°
• Features: power selector switch
• Material (housing/cabinet): aluminium
• Colour: dark grey
• Mounting facility: stainless steel mounting bracket
• Protective class: IP66
• Admissible ambient temperature: -20-+50 °C
• Width: Ø 265 mm
• Depth: 310 mm
• Weight: 2.3 kg
• Replacement voice coil: IT-230/VC
• Other features: weatherproof

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
