Monacor EDL-82HQ Wall and Ceiling Speaker

SKU: EDL-82HQ

£90.59 + VAT    £108.71 incl. VAT

White 8″ 50w 100v line or 8Ω two-way ceiling music speaker

In stock

100V Line
Low Impedance 8 Ohms

PDF

Description

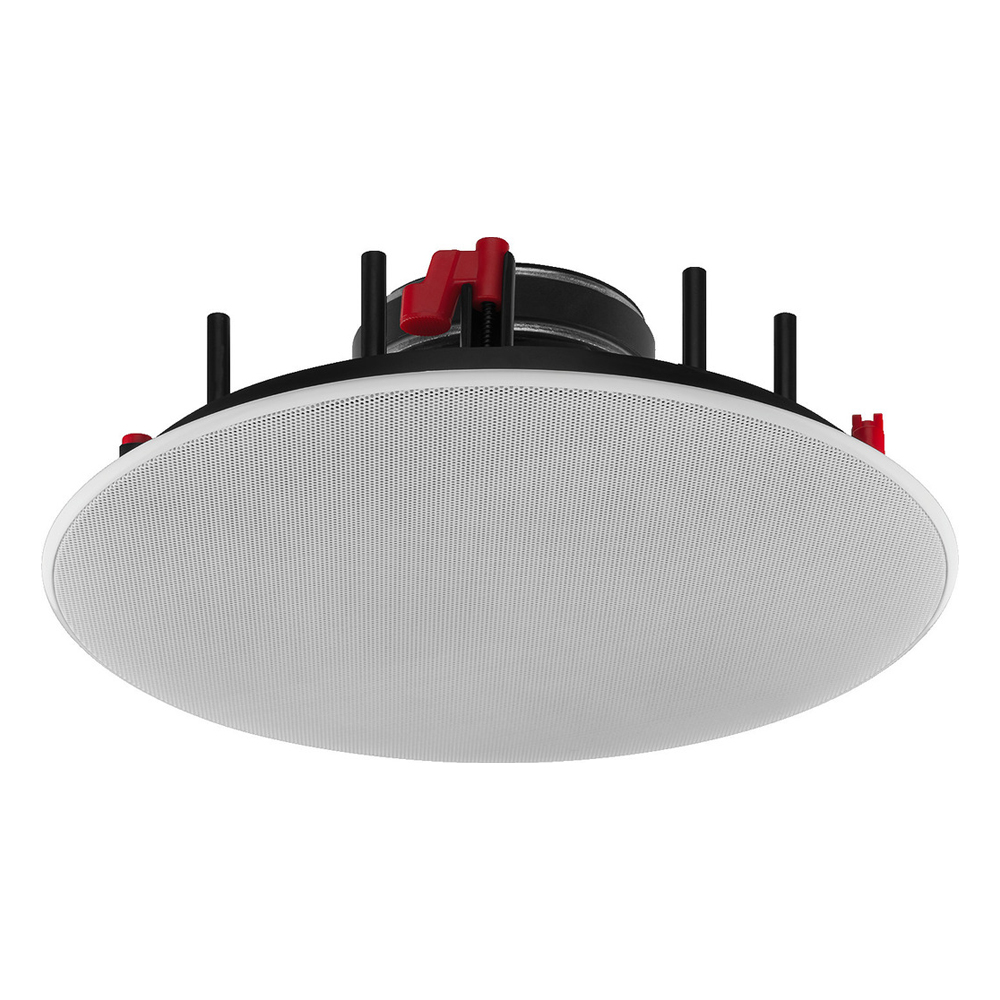

Monacor EDL-82HQ 50w 100v line wall and ceiling speaker

  • PA hi-fi wall and ceiling speaker, 30 W
  • 100 V transmission technology or 8 Ω operation

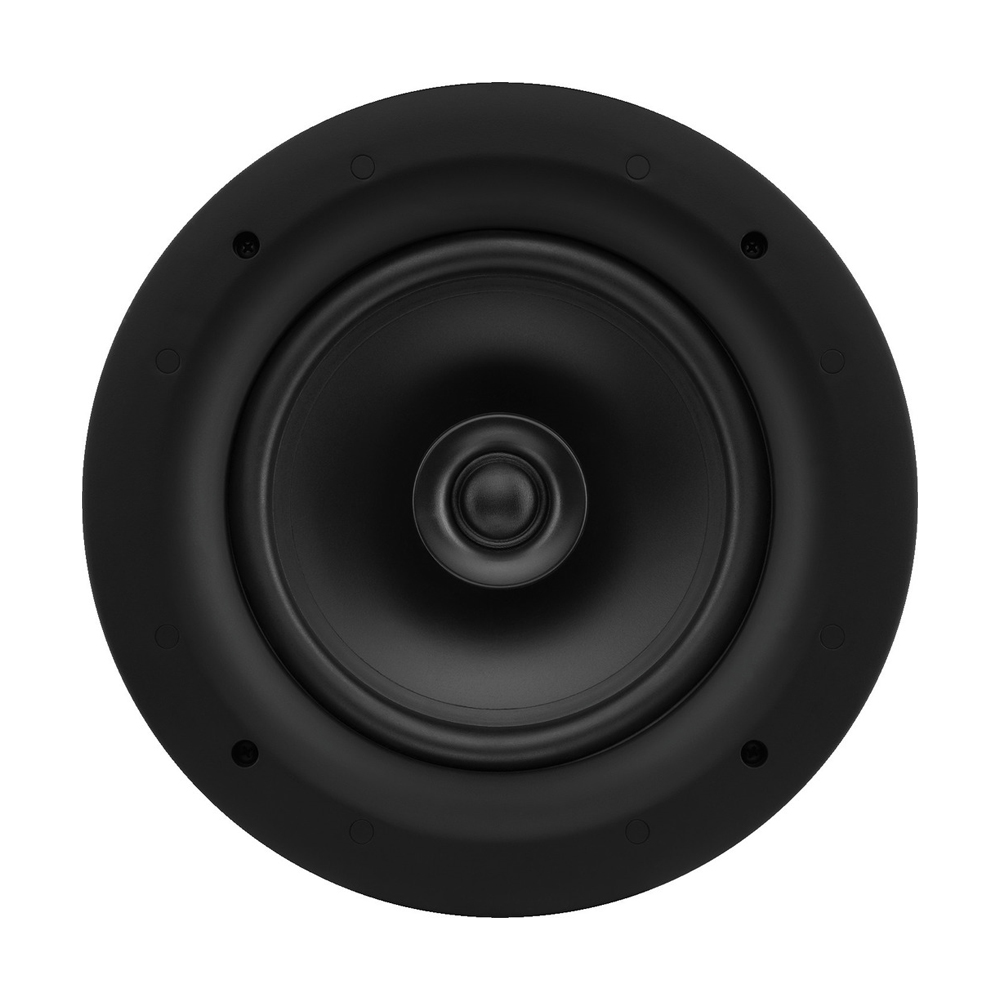

  • 2-way version with coaxial dome tweeter
  • 20 cm (8″) bass speaker with waveguide and 25 mm (1″) silk dome
  • Pivoting tweeter via ball joint
  • Excellent sound characteristics
  • Stylish flush fit protective metal grille with slim plastic frame
  • Protective grille magnetically attached to speaker front
  • For a wall thickness/ceiling thickness from 6 to 35 mm

Technical specifications:

  • Impedance (Z): 8 Ω
  • Transmission technology: 100 V or low-impedance

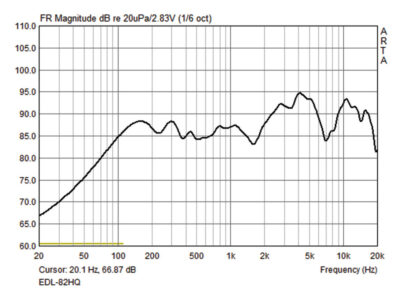

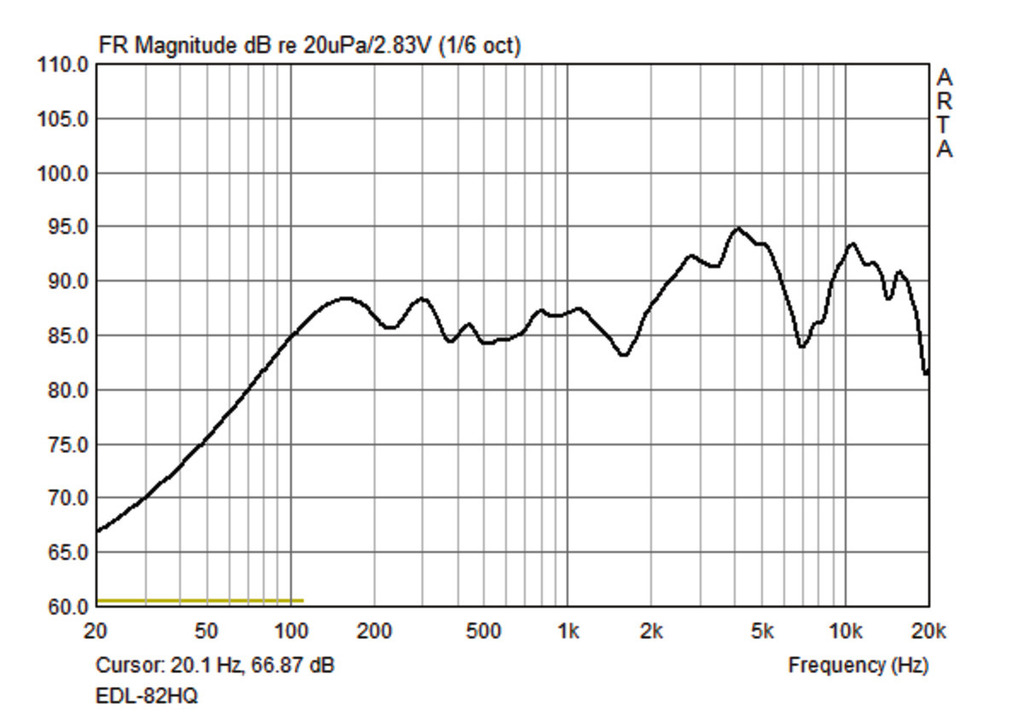

  • Frequency range: 30-20,000 Hz
  • Resonant frequency (fs): 40 Hz
  • Power rating (RMS): 50 W (8 Ω), 30/16/8/4 W (100 V)
  • Peak music power output (MAX): 100 W
  • SPL: 89 dB/W/m

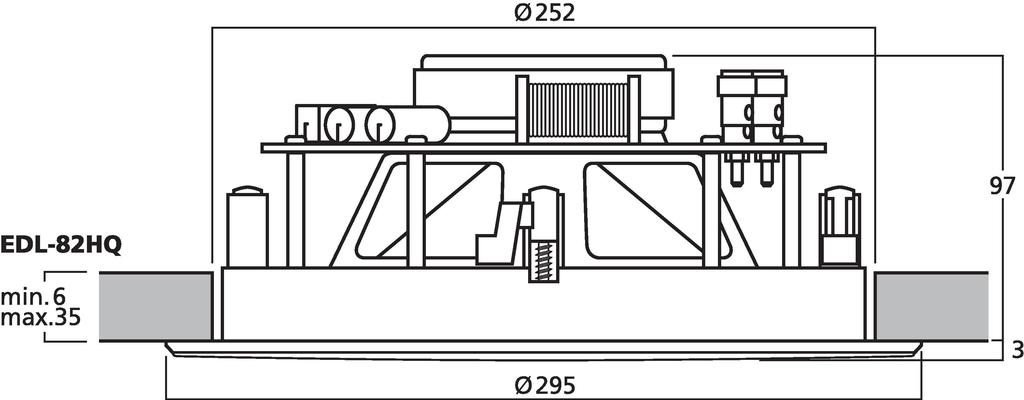

  • Mounting cutout: Ø 252 mm
  • Mounting depth: 97 mm
  • Dimensions Ø: 295 mm x 100 mm
  • Outside diameter Ø: 295 mm
  • Width Ø: 295 mm
  • Depth: 100 mm
  • Colour: white/black
  • Admissible ambient temperature: 0-40 °C
  • Weight: 2 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight2 kg
Dimensions10 × 29.5 cm
Colour

Black, White

Condition

Clearance, New

Brand

Monacor

Monacor is one of Europe’s largest distributors of PA sound and lighting equipment. Monacor understand public address and sound reinforcement comprehensively and offer a diverse range of products for all commercial sound and lighting needs. In addition to classic sound systems for sound reinforcement such as music systems, amplifiers, loudspeakers, and mixing desks, the full portfolio also includes complex conference systems, accessories for voice alarm or mobile amplifier systems, as well as induction loop sound systems, 100v line PA and megaphones. Whether you want to bring sound to one person or thousands: Monacor has the right solution for you. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

User Manuals

User Manual

Loudspeaker Connection Wiring Guide
