Monacor EDL-110/WS projection speaker

SKU: 161930

£45.90 £55.08 incl. VAT

10w 100v line projection speaker

Available on back-order

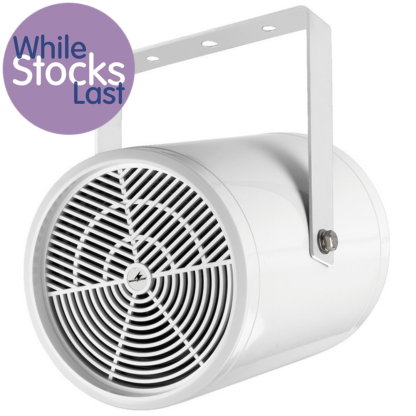

Monacor EDL-110/WS 10w 100v line projection speaker

Supplied singularly these projection speakers are available as:
EDL-110/WS: 1 speaker – 10w RMS @ 100v (16.1930)
EDL-220/WS: twin speakers – 20w RMS @ 100v (16.1940)

Weather protected PA wall or ceiling speakers for indoor or sheltered outdoor use

  • 100V line operation
  • EDL110 – single ended output
  • EDL220 – twin ended output for bilateral radiation
  • Weather protected polypropylene speaker cone
  • Splashproof plastic cabinet with rubber seals and high-strength cable gland to IP44
  • Connection cable with 3 x 100v line power taps
  • Stainless steel mounting bracket and screws
  • Active/passive: passive, 100 V
  • Frequency range: 120-20,000 Hz
  • Number of speakers: 1
  • Power rating: 10/5/2.5 W
  • Sensitivity: 94 dB/W/m
  • Material (housing/cabinet): plastic
  • Colour: white
  • Mounting facility: mounting bracket
  • Protective class: IP44
  • Admiss. ambient temp.: 0-40 °C
  • Width: Ø 180 mm
  • Depth: 270 mm
  • Weight: 2kg
  • Inputs: connection cable with 3 power taps



One of Europe’s largest distributors of PA sound and lighting equipment. Here at Monacor UK, we understand sound reinforcement in a very comprehensive sense. We therefore offer our customers a diverse range of products for all of their sound and lighting needs. In addition to classic systems for sound reinforcement such as music systems, amplifiers, loudspeakers, and mixing consoles, our portfolio also includes complex conference systems, accessories for voice alarm or mobile amplifier systems, as well as inductive sound systems, 100v line PA and megaphones. Whether you want to bring sound to one person or thousands: Monacor UK has the right solution for you.

Additional information

Weight2 kg
Dimensions27 × 18 × 18 cm
Wattage (RMS)


Speaker Size

6 ½″

IP Rating
