100v & Low Z

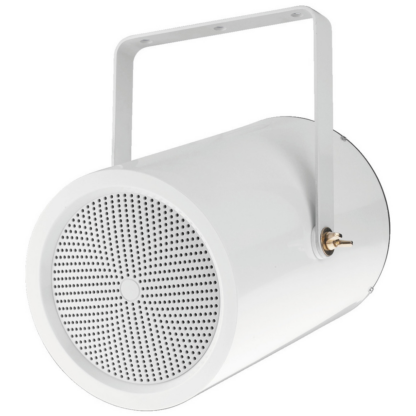

Monacor EDL-255/WS projection speaker

SKU: 160860

£55.30 £66.36 incl. VAT

15w 100v line or 8 ohms projection speaker

Available on back-order



Weather protected to IPX5 Monacor EDL-255/WS sound projector speakers are suitable for indoor and sheltered outdoor use depending upon conditions and mounting position. Made from strong robust plastic and fitted with a strong metal mounting bracket. Fitted with a quality 138mm (5.5″) speaker and 100V line transformer tapped at 2, 4, 8, 15W and 8 Ohms selectable by a rotary switch mounted on the rear panel. These wall mount speakers can be used with either 100v line or 8 ohm low impedance sound systems

  • 100V line or 8Ω operation
  • 6-step power selector switch for 15/8/4/2w RMS @ 100v,off or 8Ω operation
  • White plastic cabinet with movable mounting bracket
  • Active/passive: passive, 100 V
  • Impedance: 8 Ω
  • Frequency range: 100-15,000 Hz
  • Power rating: 15/8/4/2 W
  • Sensitivity: 92 dB/W/m
  • Material (housing/cabinet): plastic
  • Colour: white
  • Mounting facility: mounting bracket
  • Width: Ø 180 mm
  • Depth: 280 mm
  • Weight: 3 kg



One of Europe’s largest distributors of PA sound and lighting equipment. Here at Monacor UK, we understand sound reinforcement in a very comprehensive sense. We therefore offer our customers a diverse range of products for all of their sound and lighting needs. In addition to classic systems for sound reinforcement such as music systems, amplifiers, loudspeakers, and mixing consoles, our portfolio also includes complex conference systems, accessories for voice alarm or mobile amplifier systems, as well as inductive sound systems, 100v line PA and megaphones. Whether you want to bring sound to one person or thousands: Monacor UK has the right solution for you.

Additional information

Weight3 kg
Dimensions28 × 18 × 18 cm
Wattage (RMS)


Speaker Size

5 ½″

IP Rating
