Description

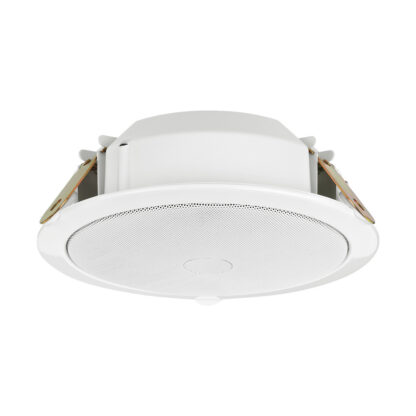

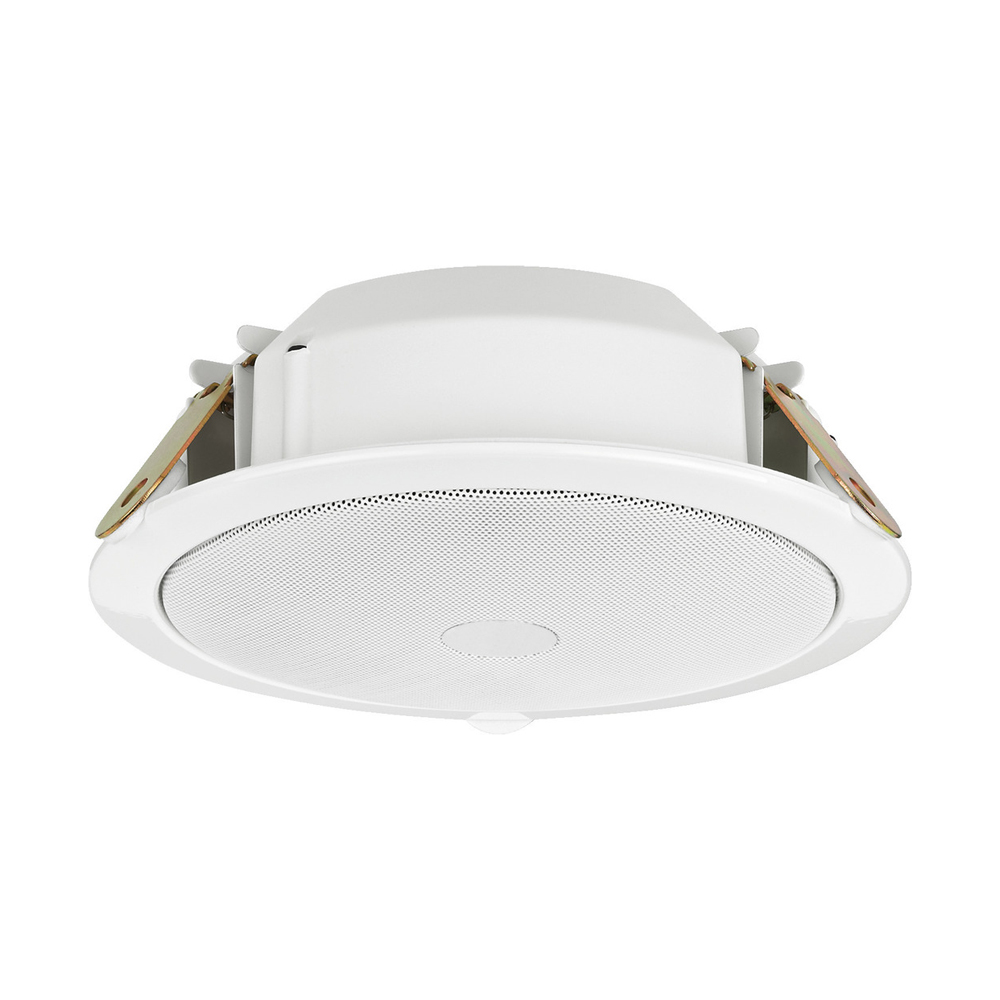

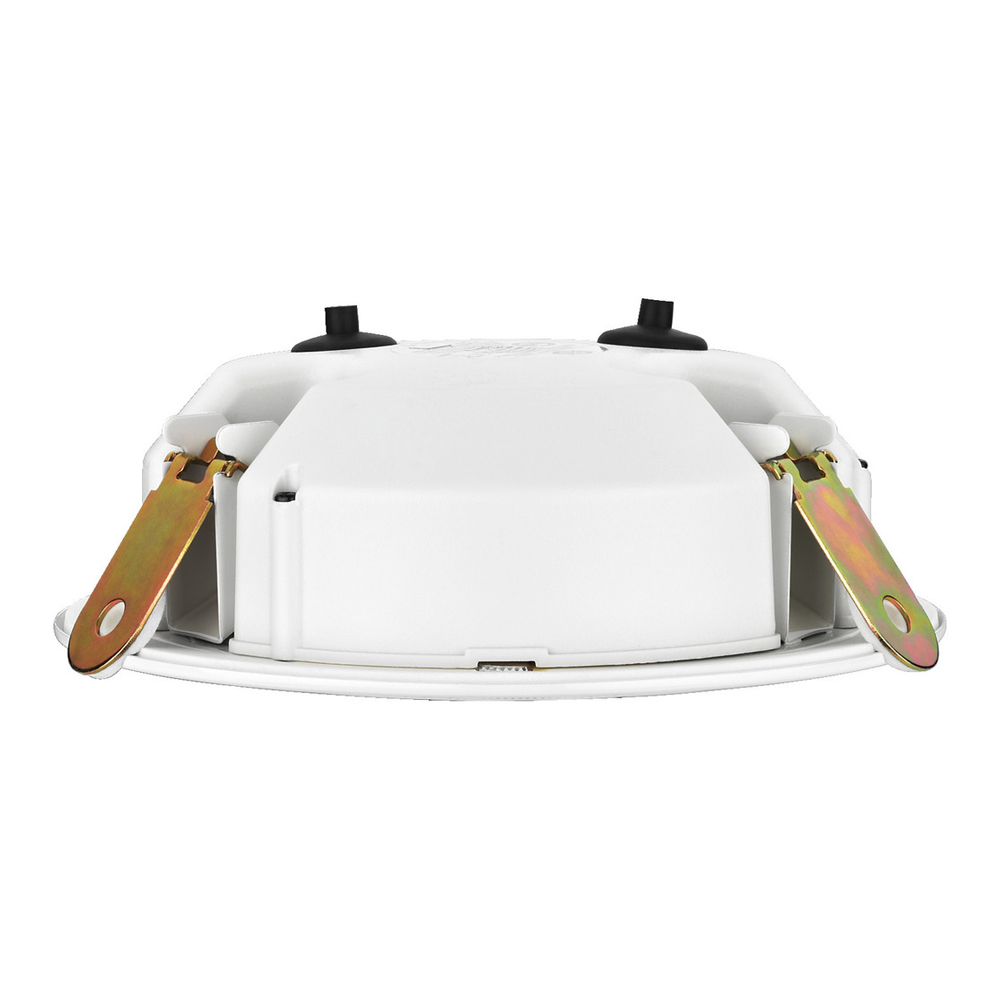

Monacor EDL-612EN 12w 100v line PA ceiling speaker
PA ceiling speaker with EN 54-24 certification.
- 100 V transmission technology with 3 power taps 12/6/3 W
- 165 mm full range speaker with optimised voice reproduction
- Plastic cover with low mounting depth
- For a ceiling thickness from 5 to 22 mm
- Quick installation
- Robust metal basket and protective grille
Technical specifications:
- Transmission technology: 100 V
- Frequency range: 120-15,000 Hz
- Power rating (RMS): 12/6/3 W
- SPL: 93 dB/W/m

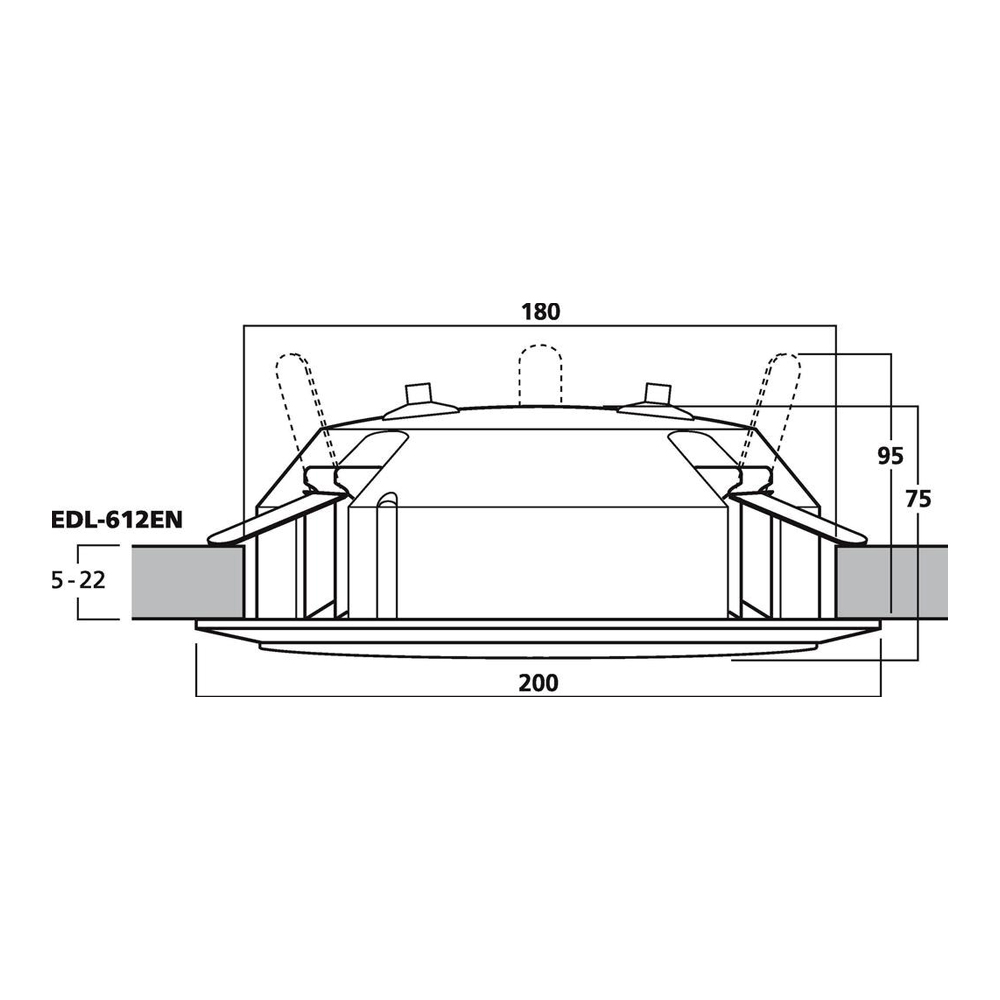

- Mounting cutout: Ø 180 mm
- Mounting depth: 60 mm
- Dimensions: Ø 200 mm x 70 mm
- Outside diameter: Ø 200 mm
- Width: Ø 200 mm
- Depth: 70 mm
- Colour: white
- Admissible ambient temperature: 0-40 °C
- Weight: 950 g
- Size of speaker: 165 mm
All used and ex-display items are tried and tested before leaving our warehouse, but will have usage marks and some signs of wear – used, ex-display and clearance items include a 90 day return-to-base warranty.
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
