W Audio DTM 800 Series wireless microphone systems


UHF Ch 70 dual radio microphone system with handheld or bodyworn transmitters




W Audio DTM 800 twin diversity wireless microphone systems on Ch 70 (863-865 MHz)

Available as:

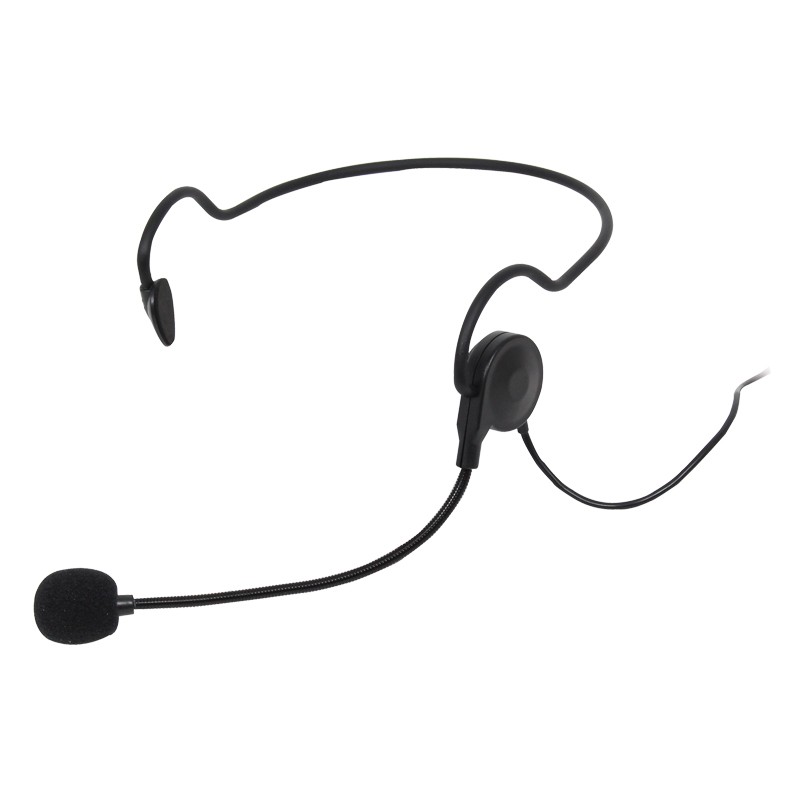

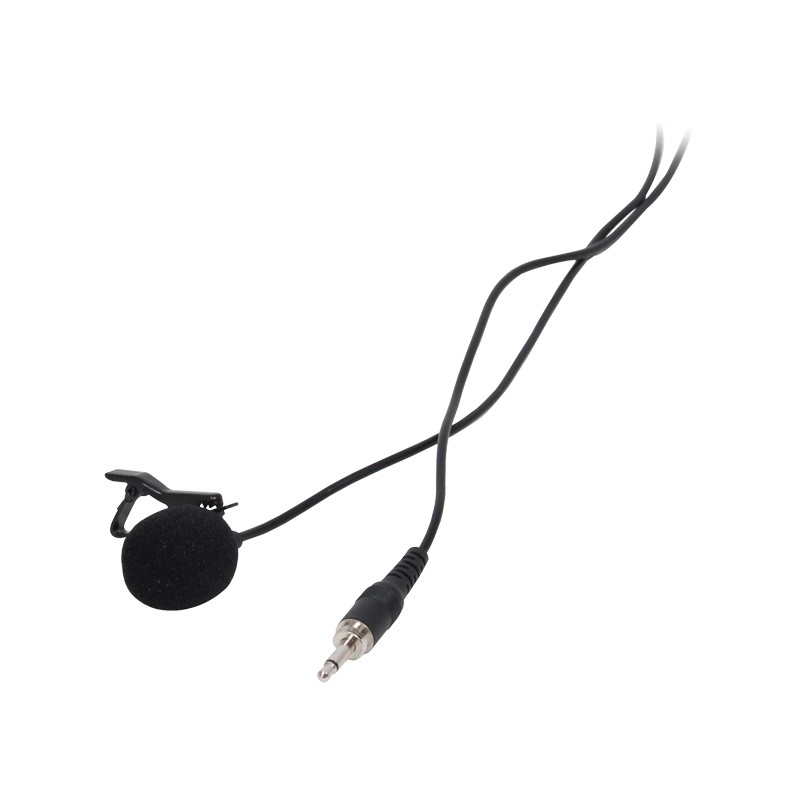

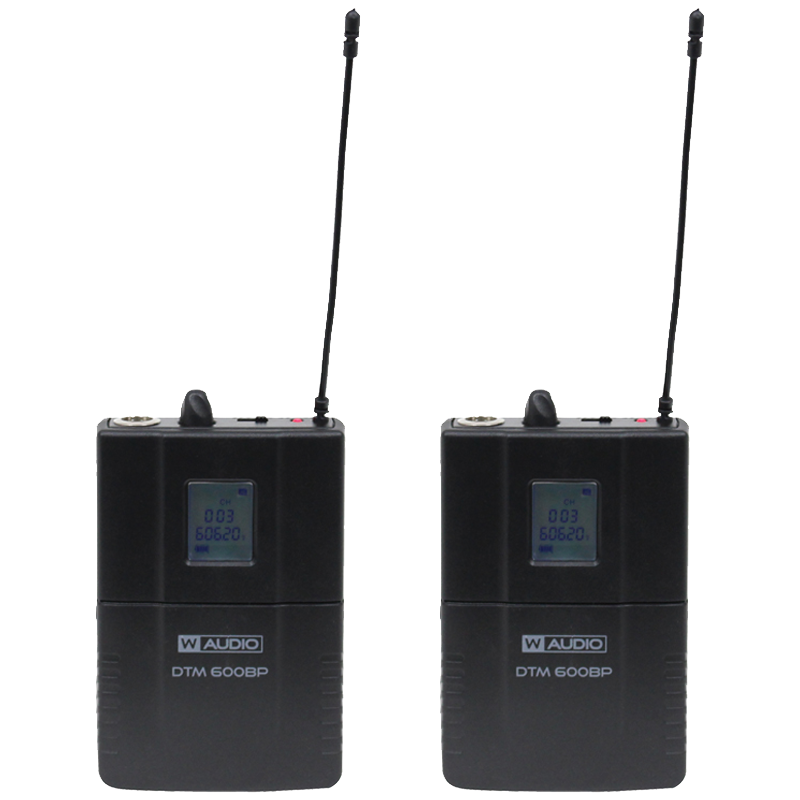

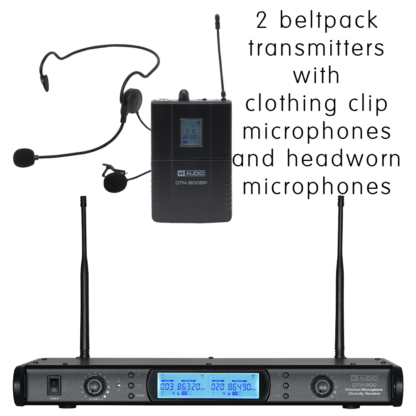

  • DTM 800 twin beltpack wireless microphone system with clothing clip mics and headmics
  • DTM 800H twin handheld wireless microphone system
  • Special Order – DTM 800C twin combo wireless microphone system including one beltpack transmitter with clothing clip mic and headmic and one handheld transmitter

DTM series wireless microphones are available as twin UHF beltpack or handheld diversity wireless systems. Available as either DTM600 Channel 38 (606-614 MHz) with 80 selectable frequencies or as DTM800 Channel 70 (863-865 MHz) with 20 selectable frequencies; both systems utilise a true diversity, full width 19″ rack mountable receiver for the ultimate in RF stability. Outstanding vocal reproduction and stable wireless connectivity allow freedom of movement on stage. These systems offer crystal clear sound reproduction and rock solid reliability. Metal bodied handheld transmitters feature ergonomic design with a rugged housing to stand up to the rigours of the road

  • Up to 4 microphones (2 x DTM 800 or DTM 800H) can be used at the same time
  • Phase Lock Loop (PLL)
  • IR sync facility for simple setup – NB: transmitter has to re-sync when you change configuration
  • True diversity receiver
  • 20 preset Ch 70 frequencies
  • Large LCD receiver display including RF level, AF level, channel and frequency
  • LCD transmitter display
  • Auto frequency scanning and spectrum display
  • Balanced XLR output for each channel plus unbalanced mixed output
  • Frequency response (handheld): 40Hz-15kHz
  • Transmitter battery configuration: 2 x 1.5V AA (not supplied)
  • Audio output level: 400mV
  • Dynamic range: 96dB
  • Receiver power supply: 12V DC (mains adaptor supplied)
  • 1U full width rack mount receiver
  • Non removable receiver aerials

Wireless microphone systems need to be connected to a public address PA sound system to work
