Description

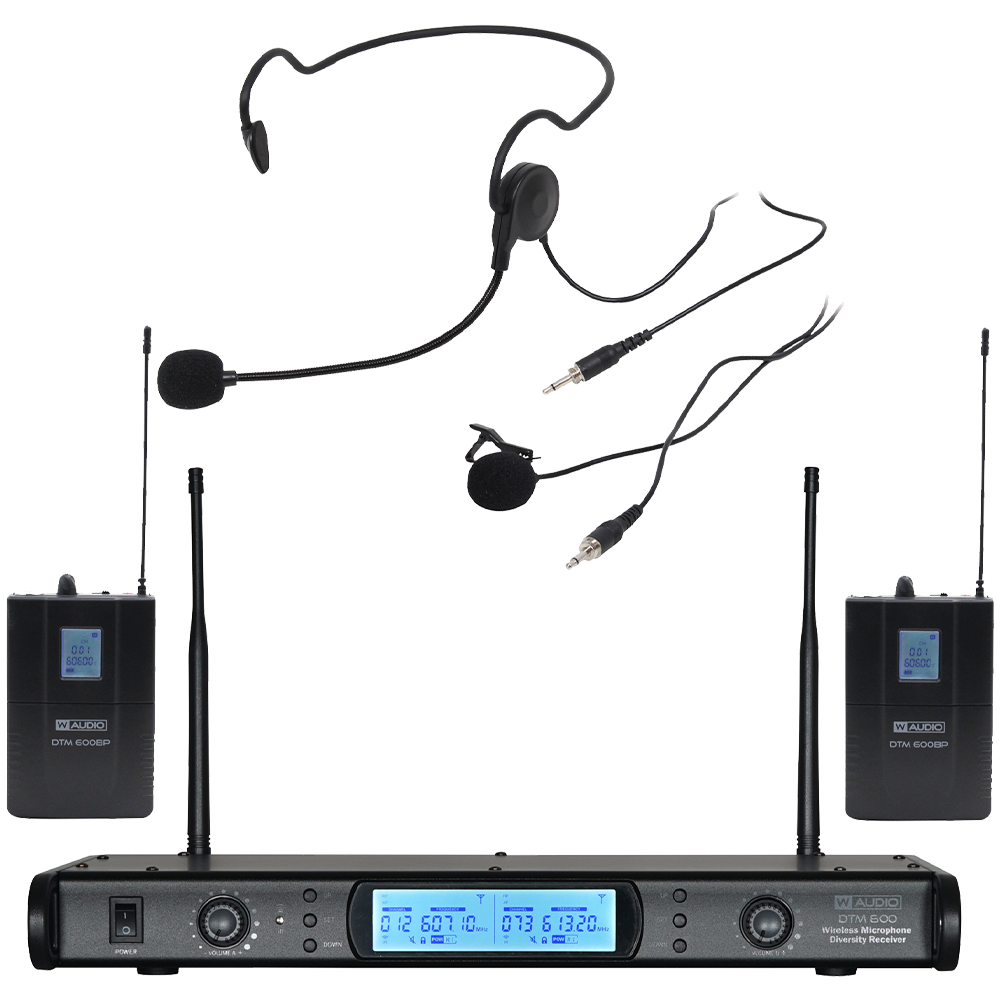

W Audio DTM 600 V2 twin diversity wireless microphone system on Ch. 38 (606-614 MHz) – with V2 software
DTM series wireless microphones are available as twin UHF beltpack or handheld diversity wireless systems. Available as DTM600 Channel 38 (606-614 MHz) with 80 selectable frequencies these systems utilise a true diversity, full width 19″ rack mountable receiver for the ultimate in RF stability. Outstanding vocal reproduction and stable wireless connectivity allow freedom of movement on stage. These systems offer crystal clear sound reproduction and rock solid reliability. Metal bodied handheld transmitters feature ergonomic design with a rugged housing to stand up to the rigours of the road.
Up to 8 wireless microphone channels may be used simultaneously in Channel 38 using this and additional equipment.
Available as:

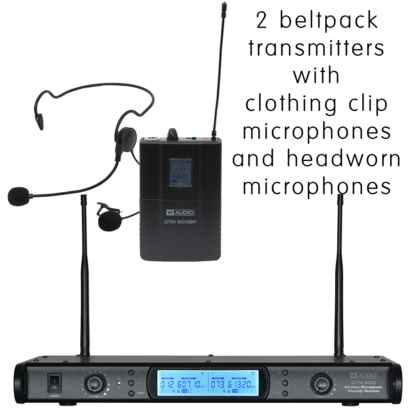

- DTM 600 twin beltpack wireless microphone system with black clothing clip mics and headmics – with V2 software
- DTM 600H twin handheld wireless microphone system – with V2 software
- DTM 600BP spare beltpack wireless microphone transmitter on Ch 38 (606-614 MHz). Supplied with black clothing clip mic and headmic for use with various versions of the DTM 600 and DTM 600H wireless microphone receivers – please see options
- DTM 600HTX spare handheld wireless microphone transmitter on Ch 38 (606-614 MHz) for use with various versions of the DTM 600 and DTM 600H wireless microphone receivers – please see options
- Up to 4 microphones (2 x DTM 600 or DTM 600H) can be used at the same time
- Phase Lock Loop (PLL)
- IR sync facility for simple setup – NB: transmitter has to re-sync when you change configuration
- True diversity receiver
- 80 preset Ch 38 frequencies
- Large LCD receiver display including RF level, AF level, channel and frequency
- LCD transmitter display
- Auto frequency scanning and spectrum display
- Balanced XLR output for each channel plus unbalanced mixed output
- Frequency response (handheld): 40Hz-15kHz
- Transmitter battery configuration: 2 x 1.5V AA (not supplied)
- Audio output level: 400mV
- Dynamic range: 96dB
- Receiver power supply: 12V DC (mains adapter supplied)
- 1U full width rack mount receiver
- Non removable receiver aerials
DTM 600BP beltpack transmitter
- Please ensure that you purchase the correct transmitters to match your reveiver type (fixed or removeable BNC aerials)
- Beltpack transmitter with clothing clip and head mic only
- IR sync facility for simple setup with matching receiver – NB: transmitter has to re-sync when you change configuration
- 80 preset CH 38 frequencies
- LCD transmitter display
- Transmitter battery configuration: 2 x 1.5V AA (not supplied)
DTM 600HTX handheld transmitter
- Please ensure that you purchase the correct transmitters to match your reveiver type (fixed or removeable BNC aerials)
- Handheld transmitter only
- IR sync facility for simple setup with matching receiver – NB: transmitter has to re-sync when you change configuration
- 80 preset CH 38 frequencies
- LCD transmitter display
- Transmitter battery configuration: 2 x 1.5V AA (not supplied)
Wireless microphone systems need to be connected to a public address PA sound system to work
