240w Sound System with 600m² Induction Loop System for Places of Worship

Description

The CHU-240 240w complete Church PA sound re-enforcement and induction loop systems are ready for you to install into your Church, Chapel, hall or other Places of Worship such as Chapels, Synagogues, Mosques, Temples, Kingdom Halls etc.

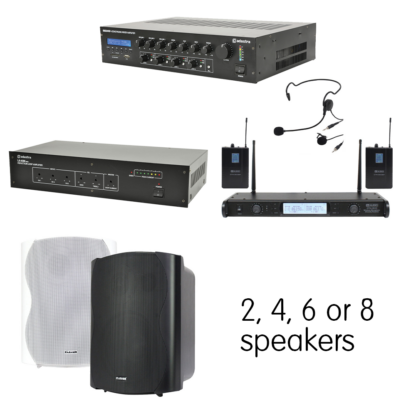

CHU-240 240w Church sound system with 600m² induction loop system and 2 to 8 black or white cabinet speakers

Each sound system is supplied with 240w mixer amplifier, 600m² induction loop amplifier, loop receiver with headphones, 2 to 8 x black or white wall mount loudspeakers, 2 x clothing clip wireless microphone, loudspeaker and induction loop cable and interconnect leads, instructions etc.

Please note that the speakers are packed and sold in pairs

This package must be wired as a 100v line sound system – please see user manuals tab

Mixer Amplifier:

• 240w RMS
• Microphone & Aux inputs
• Speaker outputs via screw terminals
• Line output
• Input and output level controls
• Bass and treble controls
• Phantom power
• Mains operation or 24v DC emergency power operation
• Free standing or rack installation
• Use terminal block to extend speaker cable
• Do not short speaker cables together

Wireless Microphones:

• Two wireless microphones supplied – pocket transmitters & clothing clip mics
• True diversity UHF systems
• License free in the UK & EU
• Volume and squelch controls
• Optional handheld wireless mic system available

Speakers:

Loop Amplifier:

• Coverage: 600m²
• Suitable for hearing aids fitted with a “T” switch
• Mic/line level switch for each input
• Phantom power switch for each input
• Tamper proof channel volume, bass & treble and loop current level controls
• Adjustable metal loss correction
• Alarm contacts for built-in siren
• Priority switchable for channel 1
• Peak current LED indication
• 19″ rack mountable
• Power supply: 110/240Vac, 50/60Hz (IEC)
• Frequency response: 50Hz – 5kHz (±3dB)
• Input sensitivity : line: -6dBu/6k Ohms
• Input sensitivity : mic: -56dBu/2k Ohms
• Signal to noise ratio: 75dB (line), 60dB (mic)
• THD: <1%
• Fuse: T2A 250V
• Rack height: 2U
• Area coverage: 600m² max.
• Dimensions: 483 x 235 x 88mm
• Weight: 4.22kg

System Includes:

• 1 x 240w mixer amplifier with Bluetooth and media player
• Up to 8 x black or white wall mounted speakers (please note that speakers are packed and supplied in pairs) – see options
• 2 x Input connector leads for MP3 players etc.
• 1 x 600m² induction loop amplifier
• 1 x matching pre-amp to maintain signal level between main amplifier and loop amplifier
• 1 x Induction loop receiver and earphones and headphones
• 1 x Twin bodyworn wireless microphones with clothing clip microphones (clothing-clip mic)
• 2 x Wireless receiver to amplifier cables
• Speaker cable
• Induction loop cable

Sound Services deliver this complete sound system without extra charge to most mainland UK addresses

Speaker cable assembly and installation of these systems require some DIY assembly skills – you should only require basic DIY tools together with speaker, amplifier and cable fixings etc.

Constant development means that illustrations are only representative and items supplied may be newer or improved models that are available at the time of your order

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
