Monacor ATS-80T PLL Transmitter

Description

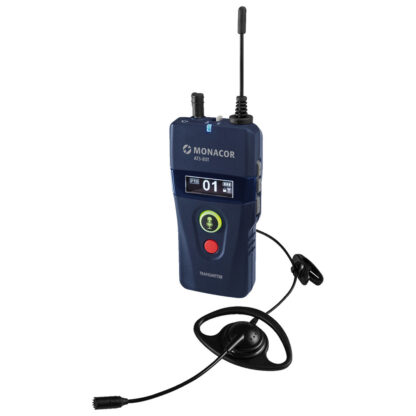

Monacor ATS-80T 42-channel PLL transmitter on channel 65 and 70

• 42-channel digital PLL voice transmission system, 823-832 MHz and 863-865 MHz
• As a tour guide system also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers and group tours or factory tours
• High resistance to interference due to digital transmission
• High operating range
• Frequency range optimised for voice transmissions
• Interference-free parallel operation of up to 42 different channels possible

42-channel PLL transmitter, for microphone operation and audio line signals.

• 3 different operating modes: guiding, lecturing and discussions for versatile applications
• Integrated microphone, adjustable gain
• Supplied with additional earphone microphone
• Audio line input via 3.5 mm stereo jack
• High-contrast OLED display
• Battery status indication
• Priority assignment
• Alarm function
• Talk/mute button
• Call button
• Channel lock
• Full-duplex communication
• Attendance monitoring
• Belt clip
• Lanyard
• Adjustable transmitting power (high: ≤ 20 mW/low: ≤ 10 mW)
• Operating range: approx. 100 m
• Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
• Dimensions: 47 x 97 x 35 mm
• Weight: 53 g

Technical specifications:

• Description: 42-channel digital PLL transmitter
• Carrier frequency range: 823-832 MHz, 863-865 MHz
• Admissible ambient temperature: 0-40 °C
• Transmitting power: ≤ 20 mW/≤ 10 mW
• Operating range: 100 m
• Power supply transmitter: 2 x 1.2 V NiMH rech. battery AA size
• Width transmitter: 47 mm
• Height transmitter: 97 mm
• Depth transmitter: 35 mm
• Weight transmitter: 53 g
• Connections transmitter: 3.5 mm jack (microphone/headset),
  3.5 mm jack (line in)

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
