Sennheiser EM100G1 and Monacor TXA-800SET Wireless Link – Used, Good Working Condition

SKU: 172600 | EM100G1

Original price was: £865.00.Current price is: £432.50. + VAT    £519.00 incl. VAT

UHF Ch 70 radio link kit – used – clearance stock

1 in stock

Wireless

PDF

Description

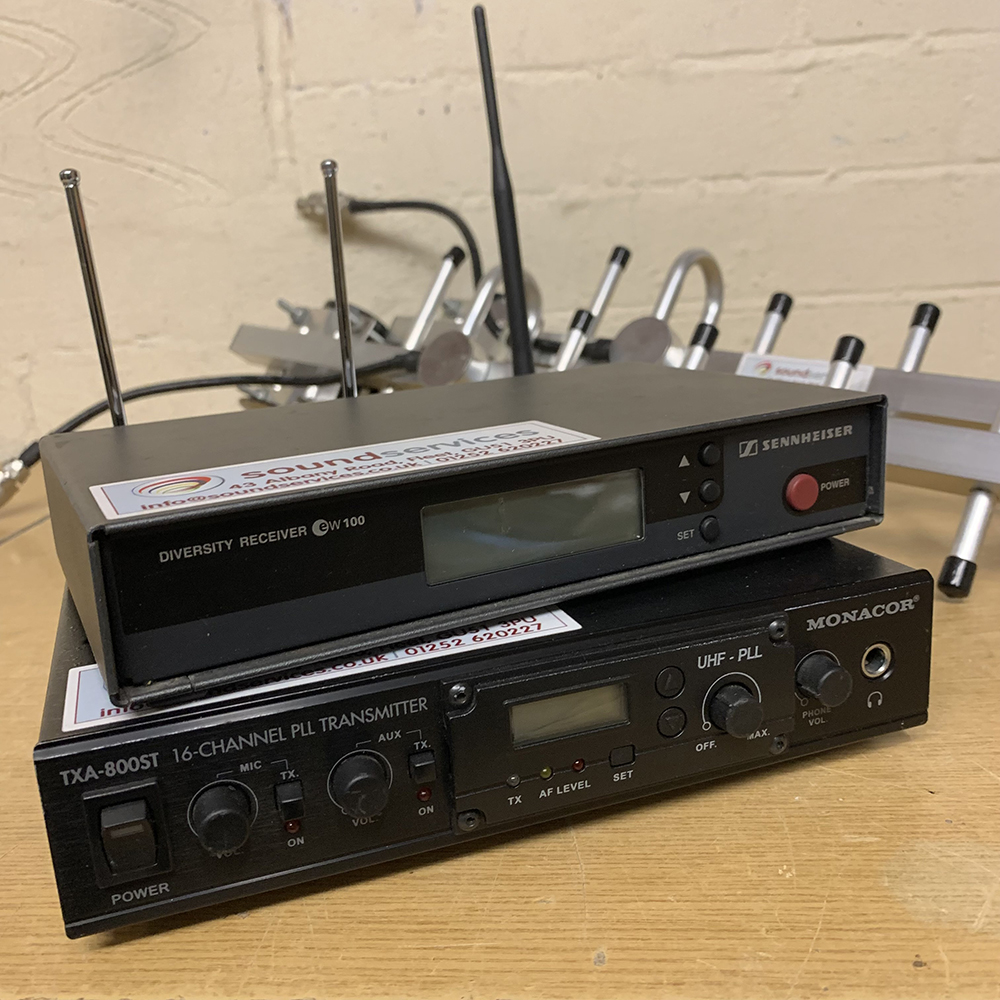

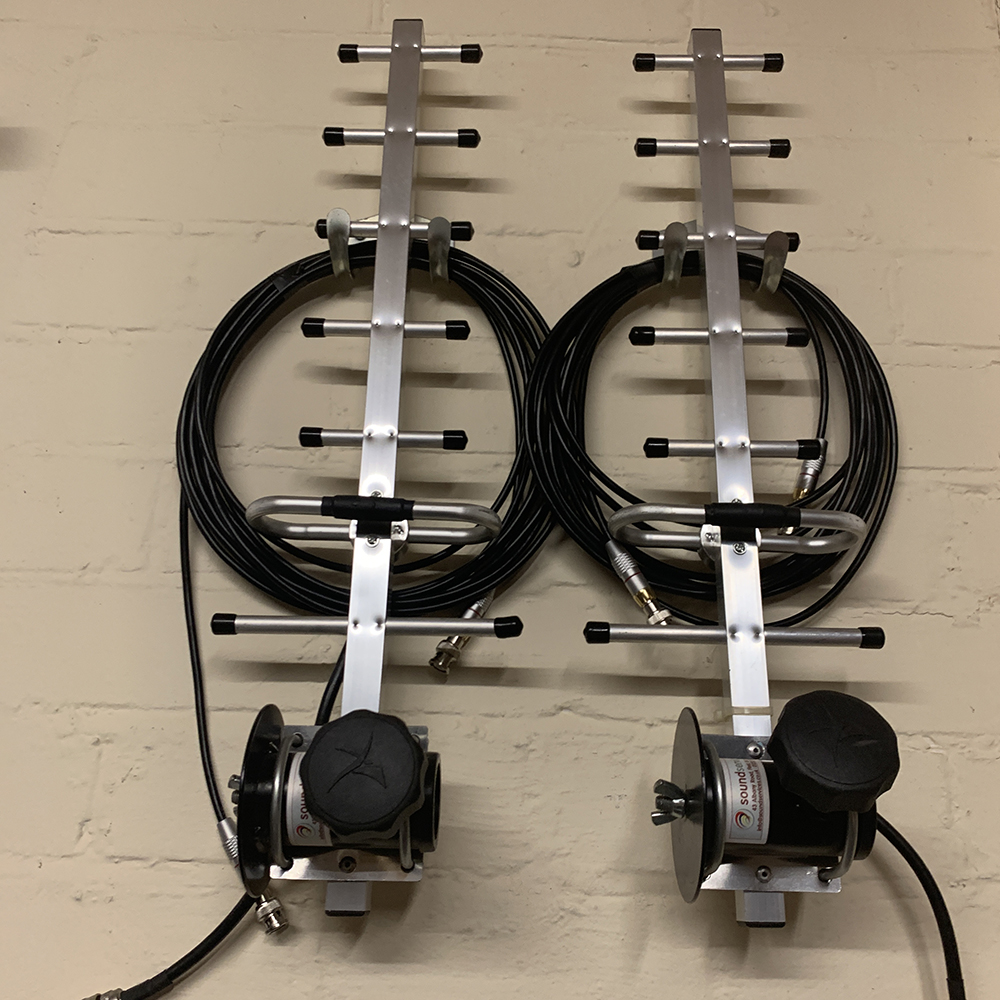

Monacor TXA-800ST wireless audio transmitter on Ch. 70 together with a Sennheiser EM100 G1 receiver creates a  wideband, 16 channel UHF wireless streaming audio link kit. The set is supplied with two high gain Yagi antennas, accessories and leads etc. in a suitable storage case

This set has only been used by us and is in good cosmetic and working condition

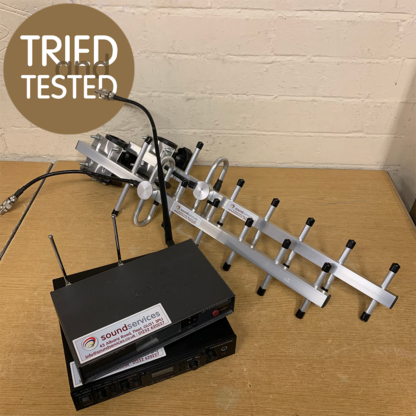

Available as a kit which includes transmitter, receiver, RX & TX antennas, high gain Yagi antennas, mains PSU’s – everything you need ready for use


Used TXA-800ST 16-channel mono PLL audio transmitter on deregulated frequencies of 863-865 MHz (VGC)

  • Compatible with Sennheiser EW100 G1 & G2, TXA-800 & TXA-1000 series portable amplifier systems etc.
  • Can be combined with the TXA-800 series receivers for use as a “tour guide system” and for all other applications in which a certain audio or voice source is to be distributed to one or more receivers
  • Can be combined with the transmitters and receivers of the ATS-16 Series
  • Simultaneous operation of up to 4 transmitters on different frequencies (dep. on distance of transmitters, stationary RF sources of interference and other local conditions)
  • 16-channel PLL transmitter
  • Microphone and line audio inputs
  • Matching the receivers TXA-800R, ATS-16R and portable amplifiers of the TXA-800 series and Sennheiser G1 & G2 receivers
  • 16 selectable UHF frequencies (863.1-864.9mHz)
  • Audio stereo line input via RCA L/R
  • Balanced XLR microphone input and 6.3 mm microphone input
  • Audio mono line output via RCA
  • Adjustable headphone output
  • Backlit LCD for channel/frequency, LEDs for carrier frequency, signal and signal peak
  • Additional DC voltage output 10-15 V DC current  for connecting an additional transmitter
  • Power supply via supplied plug-in PSU
  • Dimensions: 215 x 50 x 210 mm
  • Weight: 1.25 kg

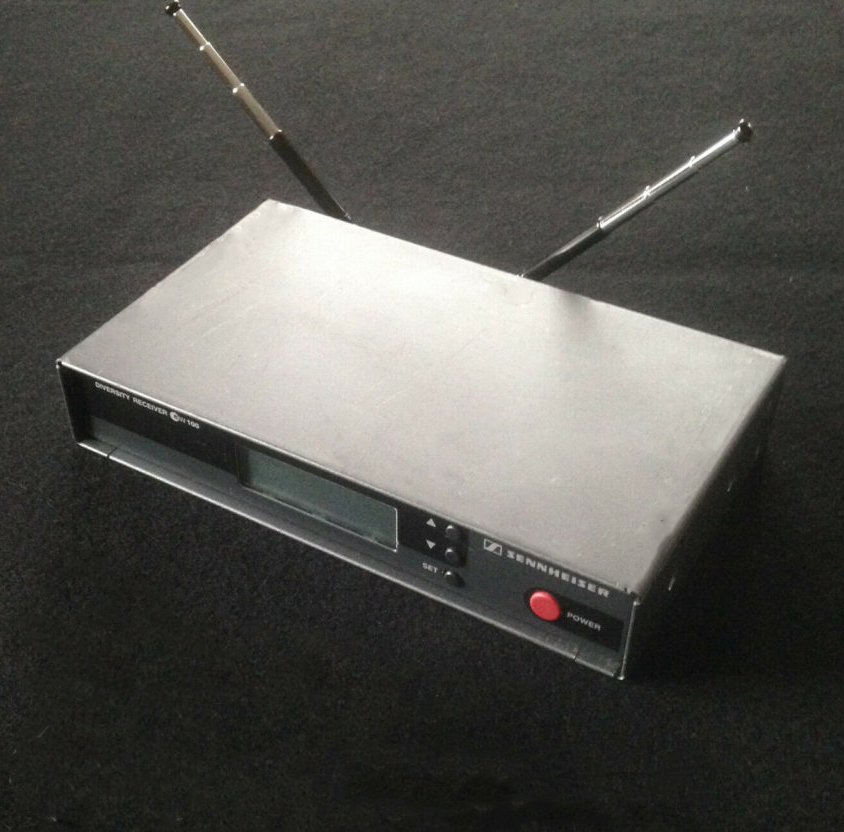

Used Sennheiser EM100G1 is supplied as a reciever with two receiver aerials,  jack to jack audio lead and mains power supply (good working condition)

All are in good cosmetic condition and work well but will have small usage marks etc.

  • A suitable UK / EU 12v mains adapter, audio lead and two aerials are included with each receiver
  • A suitable clothing clip mic is included with each transmitter
  • RF UHF transmission system, studio quality sound
  • HDX noise reduction system for interference free transmission
  • AF frequency response: 60Hz to 18,000Hz
  • Signal-to-noise ratio at 1 mVrf and peak deviation, HDX: >110 dB(A)
  • THD at nom deviation and 1kHz: <0.9%
  • Receiver EM100 true diversity
  • AF output 1/4″ (6.3mm) jack socket: balanced: +10dB, unbalanced: +4 dB
  • Audio output level adjustment: 0-40 dB

These items work on Ch 69 and Ch 70 – Ch 70 frequencies between 863MHz – 865MHz are license-free in the UK & EU (Ch 69 is not for use in the UK)

Wireless microphone systems need to be connected to a public address PA sound system to work

All used and ex-display items are tried and tested before leaving our warehouse, but will have usage marks and some signs of wear – used, ex-display and clearance items include a 90 day return-to-base warranty

License-free Ch. 70 in the UK & EU

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
