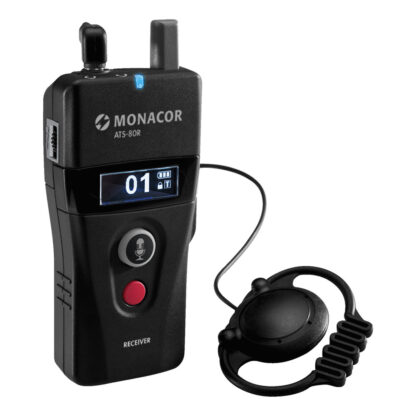

Monacor ATS-80R PLL Receiver

SKU: 250001

£144.63 + VAT    £173.56 incl. VAT

42-channel digital PLL voice transmission receiver

In stock

Batteries AA
Induction Loop



Monacor ATS-80R 42-channel digital PLL voice transmission receiver on channel 65 and 70

42-channel digital PLL voice transmission system, 823-832 MHz and 863-865 MHz

  • As a tour guide system also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers and group tours or factory tours
  • High resistance to interference due to digital transmission
  • High operating range
  • Frequency range optimised for voice transmissions
  • Interference-free parallel operation of up to 42 different channels possible
  • Call alert
  • Mute function
  • Automatic channel lock
  • Built-in microphone
  • Full duplex communication (release by transmitter)
  • Hearing Aid Compatible (HAC)
  • Belt clip
  • Lanyard
  • Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
  • Dimensions: 47 x 109 x 35 mm
  • Weight: 53 g

42-channel PLL receiver

  • Supplied with matching earphone
  • Adjustable headphone output
  • Automatic switch-off (power-saving function)
  • High-contrast OLED display
  • Battery status indication
  • Push-to-talk button with 3 operating modes (PTT, PTB, PTM)
  • Alarm-off button
  • Operating range alert

Technical specifications:

  • Description: 42-channel digital PLL receiver
  • Carrier frequency range: 823-832 MHz, 863-865 MHz
  • Audio frequency range: 300-4,500 Hz
  • Admissible ambient temperature: 0-40 °C
  • Power supply receiver: 2 x 1.2 V NiMH rech. battery AA size
  • Width receiver: 47 mm
  • Height receiver: 109 mm
  • Depth receiver: 35 mm
  • Weight receiver: 53 g
  • Connections receiver: 3.5 mm jack (earphones)

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight0.053 kg
Dimensions4.7 × 10.9 × 3.5 cm
Frequency Band


Wireless Microphone Channel

Channel 65 (823-832 MHz), Channel 70 (863-865 MHz)







Monacor is one of Europe’s largest distributors of PA sound and lighting equipment. Monacor understand public address and sound reinforcement comprehensively and offer a diverse range of products for all commercial sound and lighting needs. In addition to classic sound systems for sound reinforcement such as music systems, amplifiers, loudspeakers, and mixing desks, the full portfolio also includes complex conference systems, accessories for voice alarm or mobile amplifier systems, as well as induction loop sound systems, 100v line PA and megaphones. Whether you want to bring sound to one person or thousands: Monacor has the right solution for you. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!
