Description

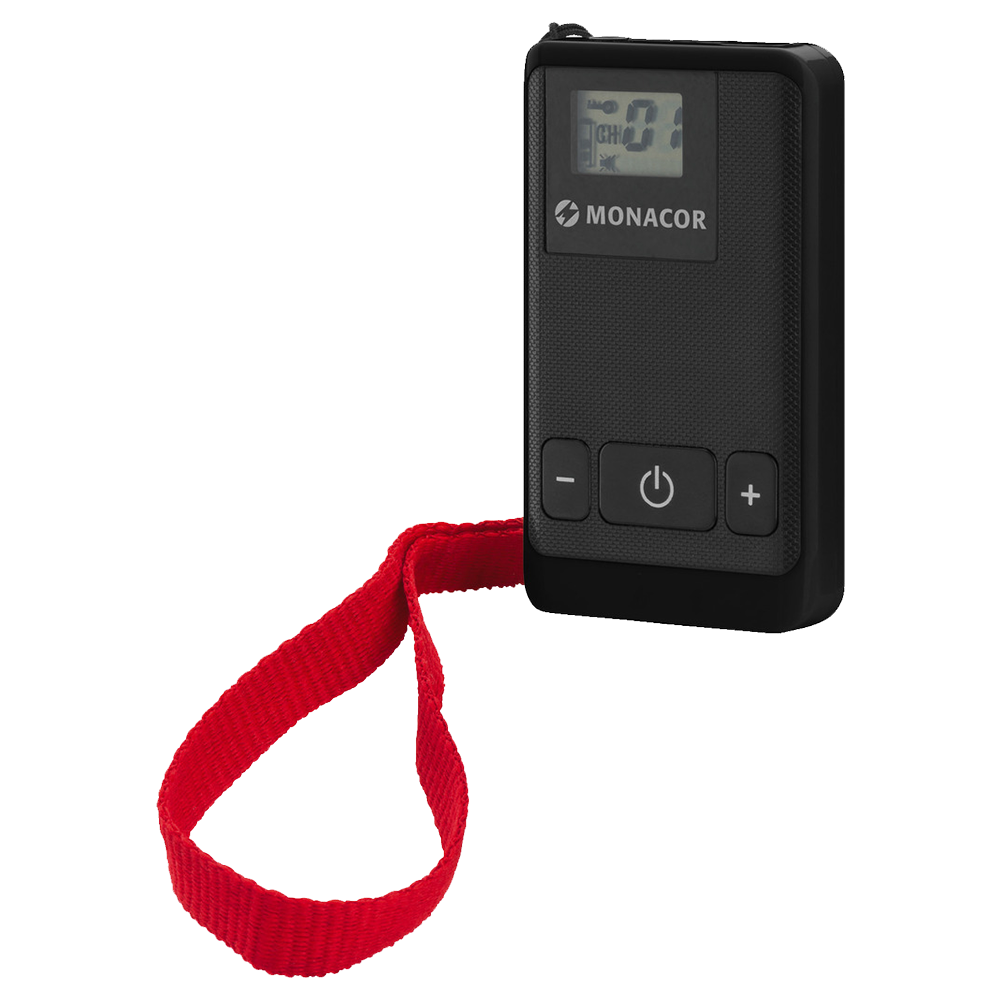

Monacor ATS-22R wireless receiver 16-channel digital voice transmission system on 863-865 MHz
- Suitable as a tour guide system, trainer/student system and for any other application in which a certain voice source is to be distributed to one or more receivers
- High resistance to interference due to digital transmisison
- Parallel operation of up to 4 different channels possible without any interference
- Licence-free in the EU
- 16-channel miniature receiver with intercom function.
- Intercom function with transmitter ATS-22T via push-button
- Built-in microphone

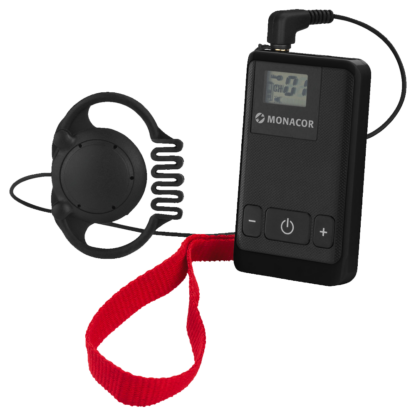

- Supplied with matching clip-on earphone
- Switches off automatically after not receiving an input signal for 20 minutes (power-saving function)
- LCD for indicating channel, carrier signal, volume and battery status
- Power supply via integrated rech. lithium battery (3.7 V/600 mAh)
- Micro USB charging connection for ATS-12CB, ATS-35CB or USB charger, available at option
- Dimensions: 40 x 87 x 12 mm
- Licence-free in the EU
- Description 16-channel digital miniature receiver
- Carrier frequency range: 863-865 MHz
- Admissible ambient temperature: 0-40 °C
- Power supply: integrated rech. lithium battery (3.7 V/600 mAh)
- Width: 40 mm
- Height: 87 mm
- Depth: 12 mm
- Weight: 37 g
- Connections: 3.5 mm jack (earphone), micro USB charging port
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
