Adastra Z44R Microphone Mixer

Description

Adastra Z44R 2 mic/line, 2 line input mixer

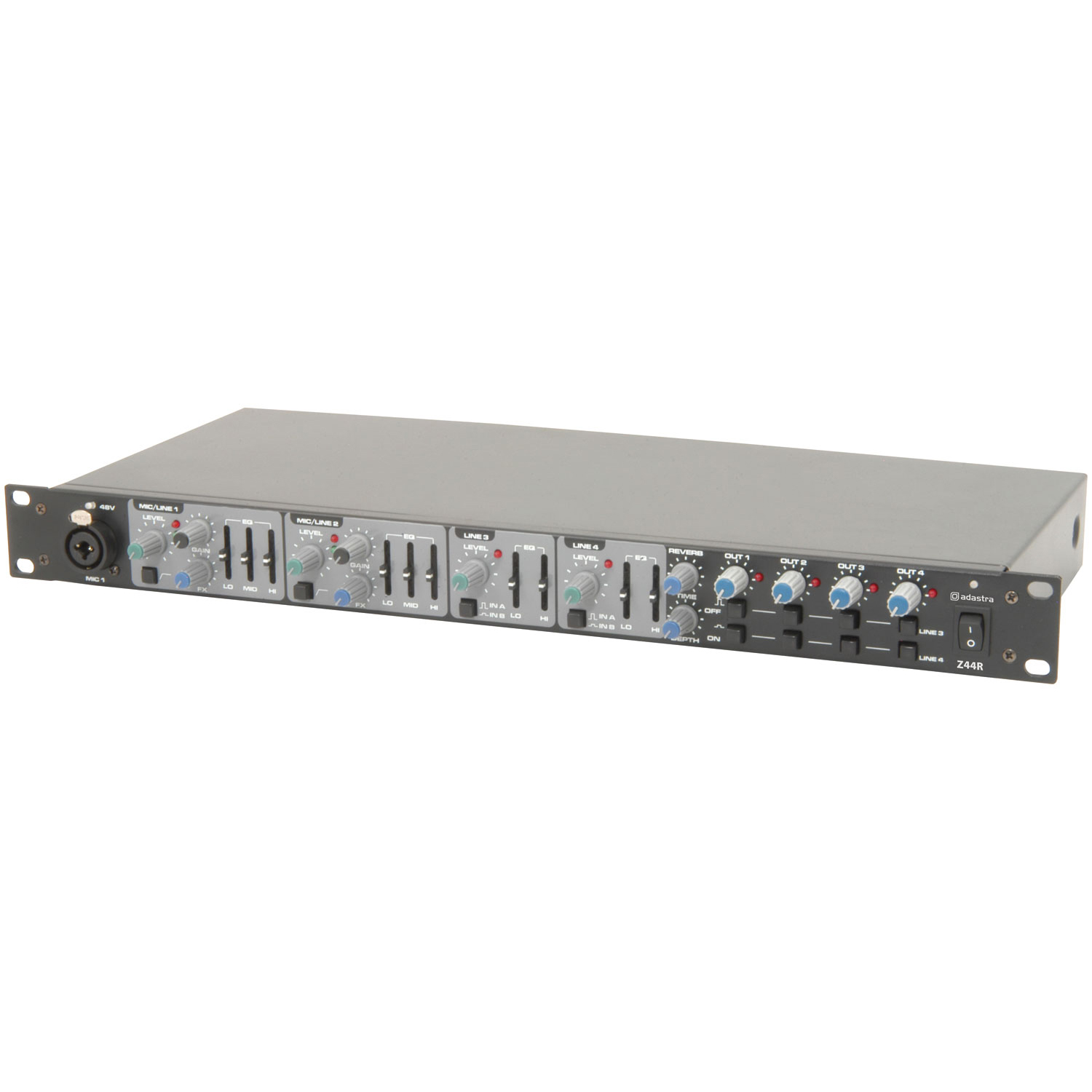

1U live/zoning rack mixer with 2 mic/line inputs and 2 stereo line inputs feeding 4 stereo outputs. Mic channels feed to all outputs, whereas the stereo channels are switchable to any required zone. Applications vary from additional vocal mixing for DJ set-ups to multi-room zoning for venues and many other scenarios.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

• • Switchable 48V phantom power
  • Lo-cut rumble filter for mic channels
  • 3-band EQ for mic channels
  • 2-band EQ for stereo channels
  • Foot-switchable internal DSP reverb or external FX
  • 4 stereo zone outputs with level controls
  • Power supply: 230Vac, 50Hz (IEC)

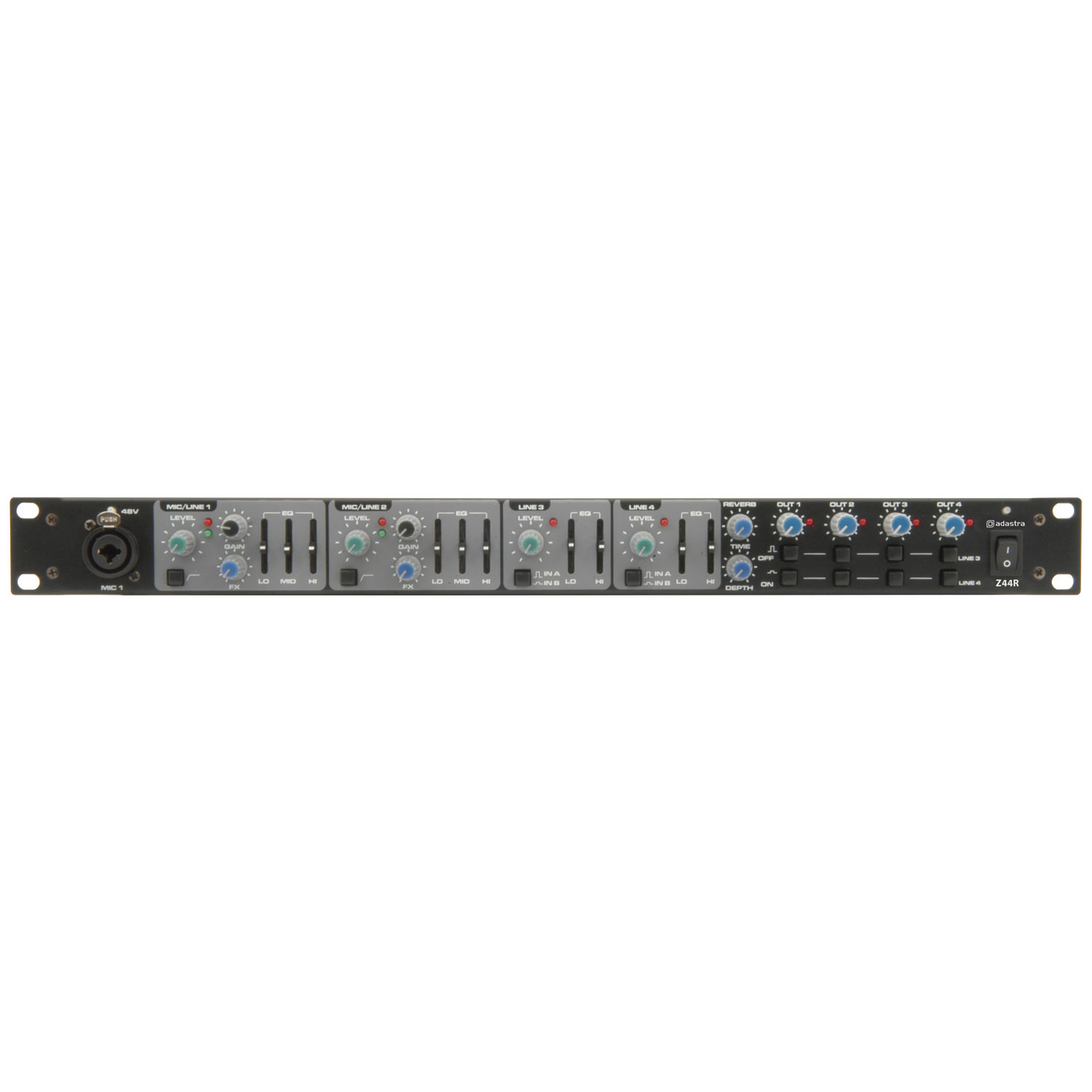

  • Mic/line channel inputs: Ch 1 front combo and rear jack, Ch 2 combo (rear)
  • Mic/line channel controls: Level, Lo-cut, Gain, FX and Lo/Mid/Hi EQ faders
  • Line 3 + 4 stereo inputs: Input A (L+R) 6.3mm jack / Input B (L+R) RCA
  • Line 3 + 4 stereo controls: Level, In A/B and Lo/Hi EQ faders

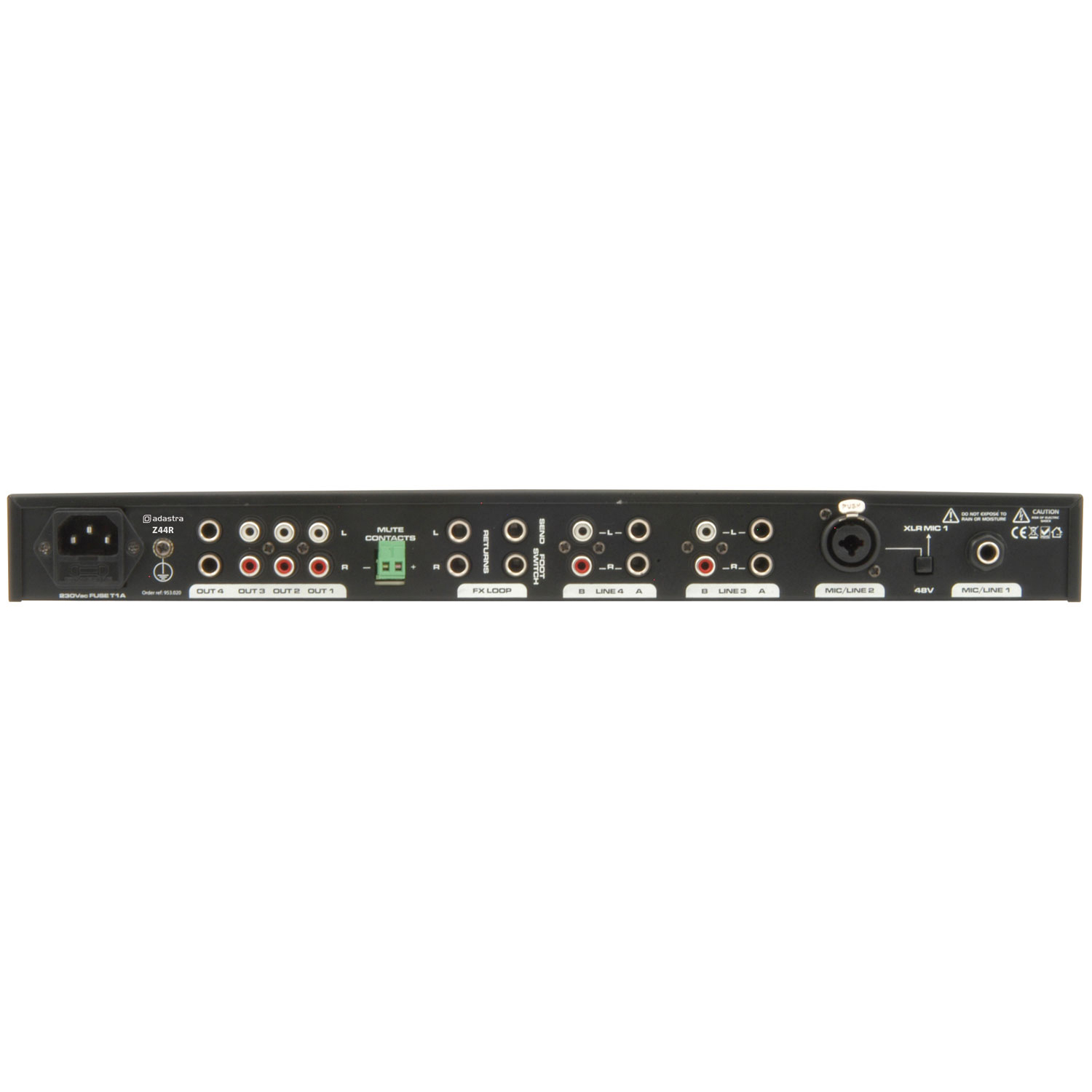

  • Output connections: Outputs 1-3 (L+R) RCA, Output 4 (L+R) 6.3mm jack
  • Output controls: Level, Line 3 on/off, Line 4 on/off
  • FX connections (6.3mm jack): Footswitch, Send (defeats onboard reverb), L+R Return
  • FX controls: Reverb time, Depth (onboard or external level)
  • Indicators (LED): Power, 48V, Mic/line signal+peak, Line peak, Output peak
  • Fire alarm contacts: Modular terminal, make-to-mute all except Mic 1
  • Dimensions: 483 x 44 x 220mm
  • Weight: 2.75kg
