Description

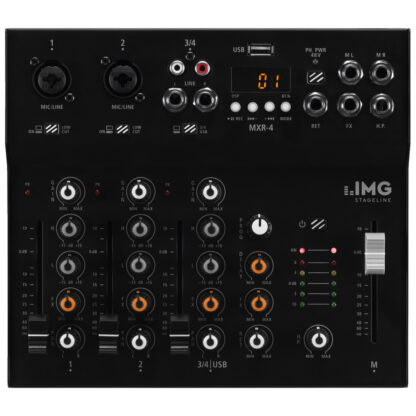

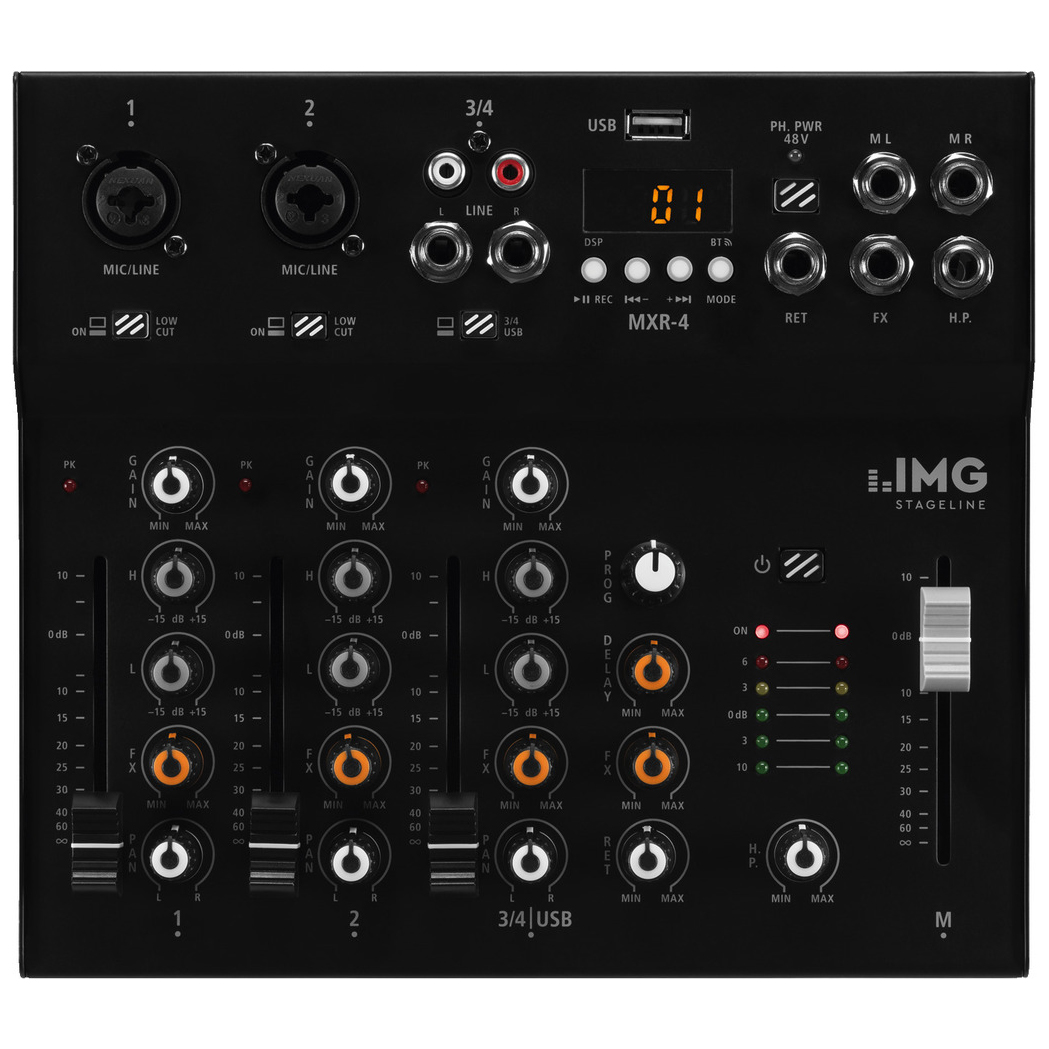

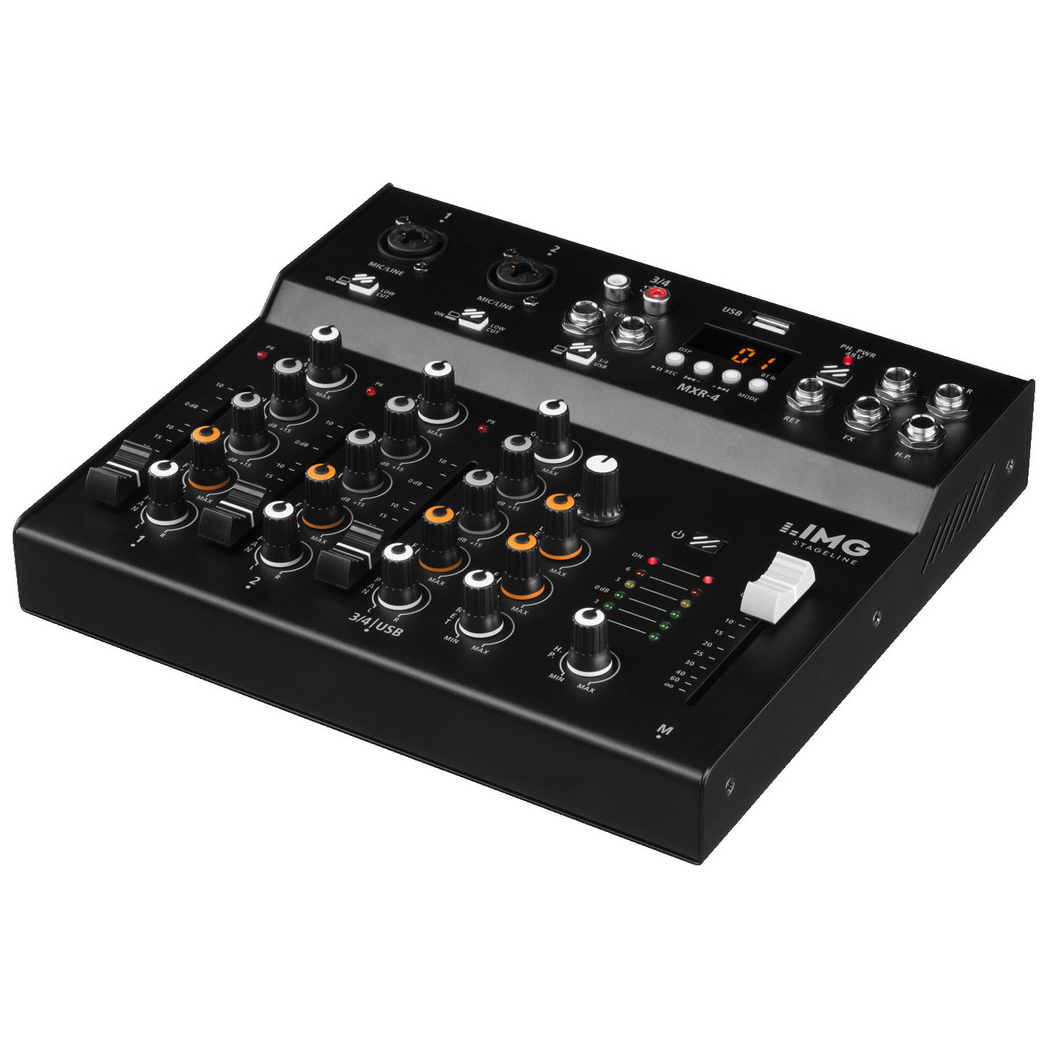

IMG Stageline MXR-4 4-channel stereo audio mixer with DSP effect unit, integrated MP3 player and Bluetooth receiver
The MXR series mixers can all be connected to a PC via Integrated USB audio interface and will be identified and addressed as an external sound card
- Integrated USB audio interface (will be identified and addressed as an external sound card)
- Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data
- from a PC and for recording mixings onto a PC
- 2 mono input channels with gain control, 2-way equalizer and pan pot
- 1 stereo input channel with 2-way equalizer and balance control
- MP3 player
- USB interface
- Bluetooth receiver
- 16 different DSP effects
- Adjustable aux return input and FX send output
- +48 V phantom power, can be activated as required
- Adjustable headphone output
- Stereo LED level display
- Power is provided via USB or supplied power supply
- Input channels: 4
- Number of mix/mono: 2
- No. of stereo: 1
- Mic input: 2 mV, balanced 2 x XLR
- Line input: 100 mV (stereo), 2 x 6.3 mm jack L/R, 60 mV (mono), 2 x 6.3 mm jack
- Aux input: 400 mV, 1 x 6.3 mm jack L/R
- Master output: 500 mV, 1 x 6.3 mm jack L/R
- Effect send: 4.4 V, 1 x 6.3 mm jack
- Headphones: ≥ 8 Ω, 1 x 6.3 mm jack
- USB: yes
- Bluetooth: yes
- Frequency range: 20-20,000 Hz
- THD: < 0.03%
- S/N ratio: > 83 dBA
- Equalizer
Bass: ±15 dB/80 Hz
Treble ±15 dB/12 kHz - Phantom power: +48 V
- Power supply: USB or enclosed power supply
- Admissible ambient temperature: 0-40 °C
- Width: 228 mm
- Height: 53 mm
- Depth: 205 mm
- Weight: 1.4 kg
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
