Monacor SPEECH-104D Amplified Lectern System

SKU: 179120

£763.16 £915.79 incl. VAT

80w lectern PA with integrated wireless receiver

Out of stock

wifi

PDF

Description

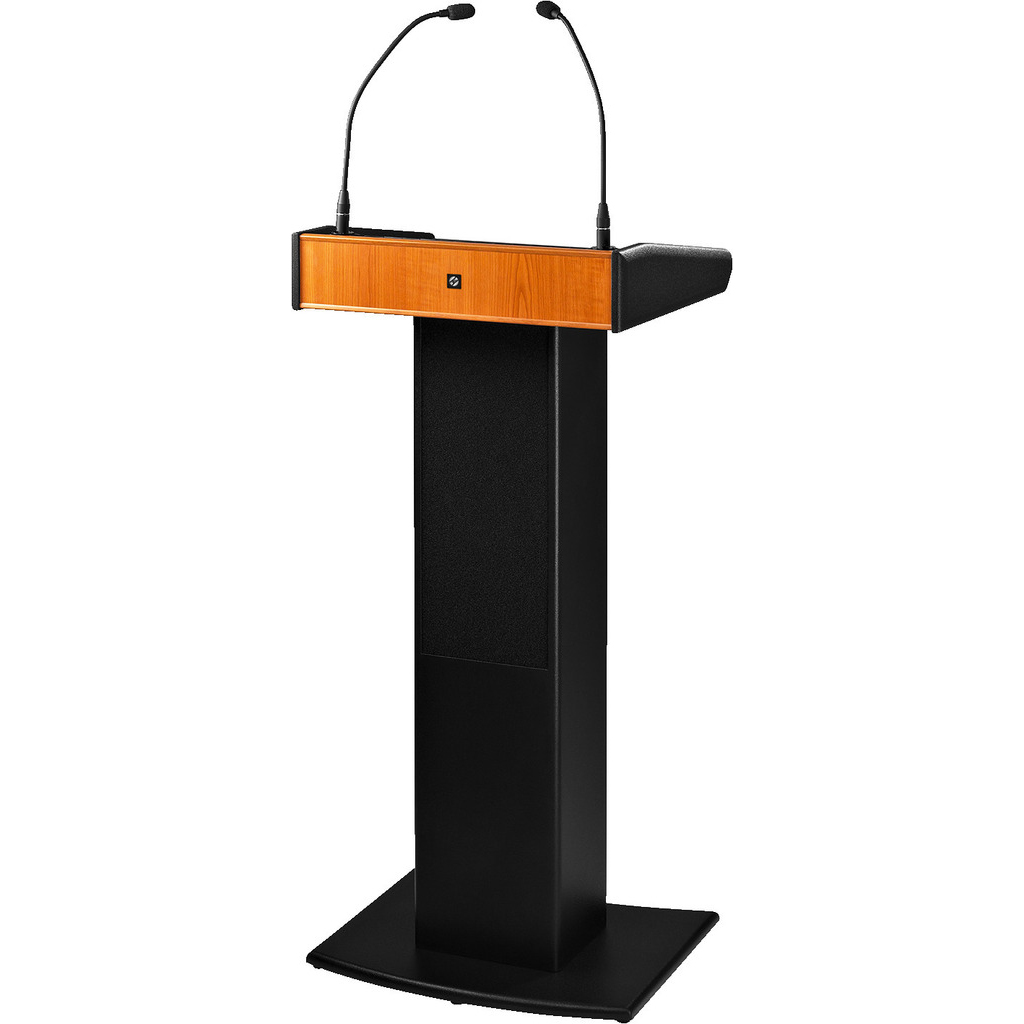

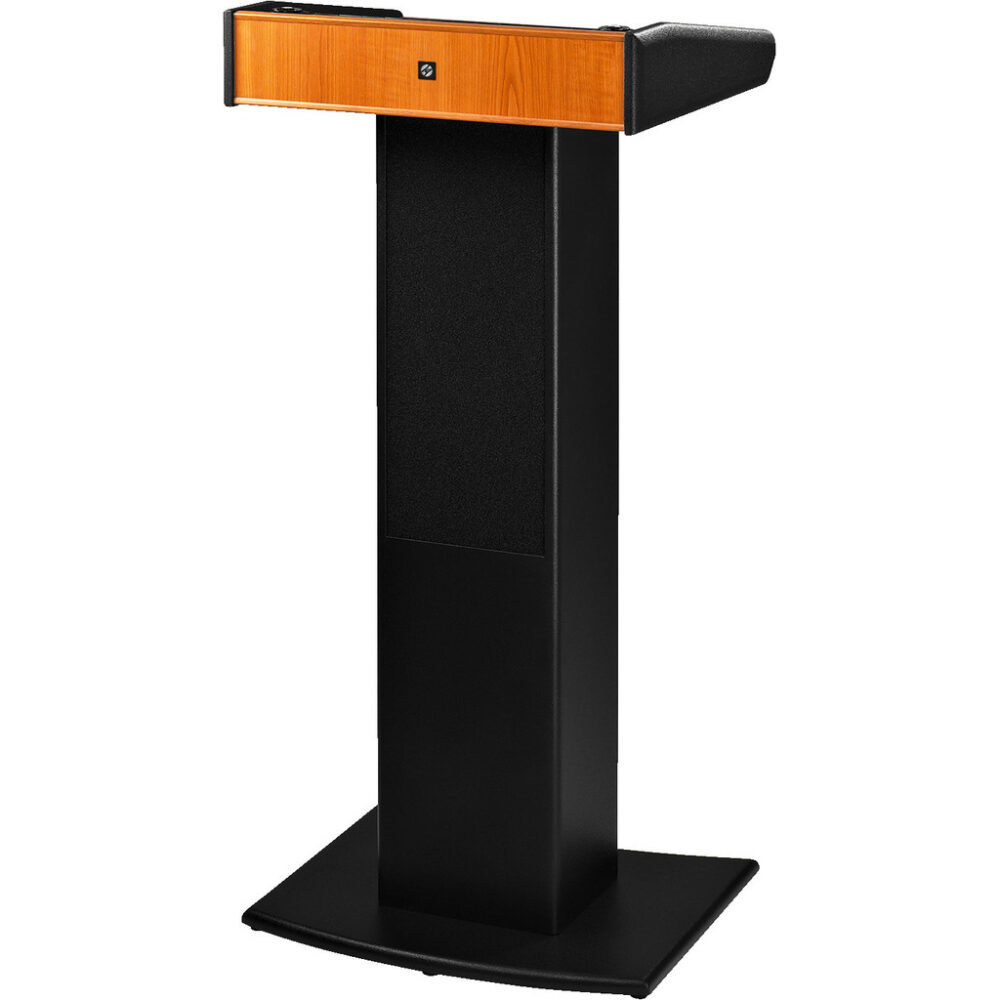

Monacor SPEECH-104D amplified lectern system

Professional lectern with integrated 2-channel multifrequency receiver unit with UHF PLL technology and class D amplifier

  • Built-in class D mixing amplifier and speaker system, 80 W
  • Operation via built-in rech. lead gel batteries: 2 x 12 V/7 Ah (operating time: up to 16 hours)
  • Integrated battery charging, supplied with charger
  • 2 x 16 selectable UHF frequencies (863.1-864.9MHz)
  • 1 input via comb. jack mic (XLR)/line (6.3 mm jack)
  • 1 stereo aux input via RCA jacks
  • Each input with gain control

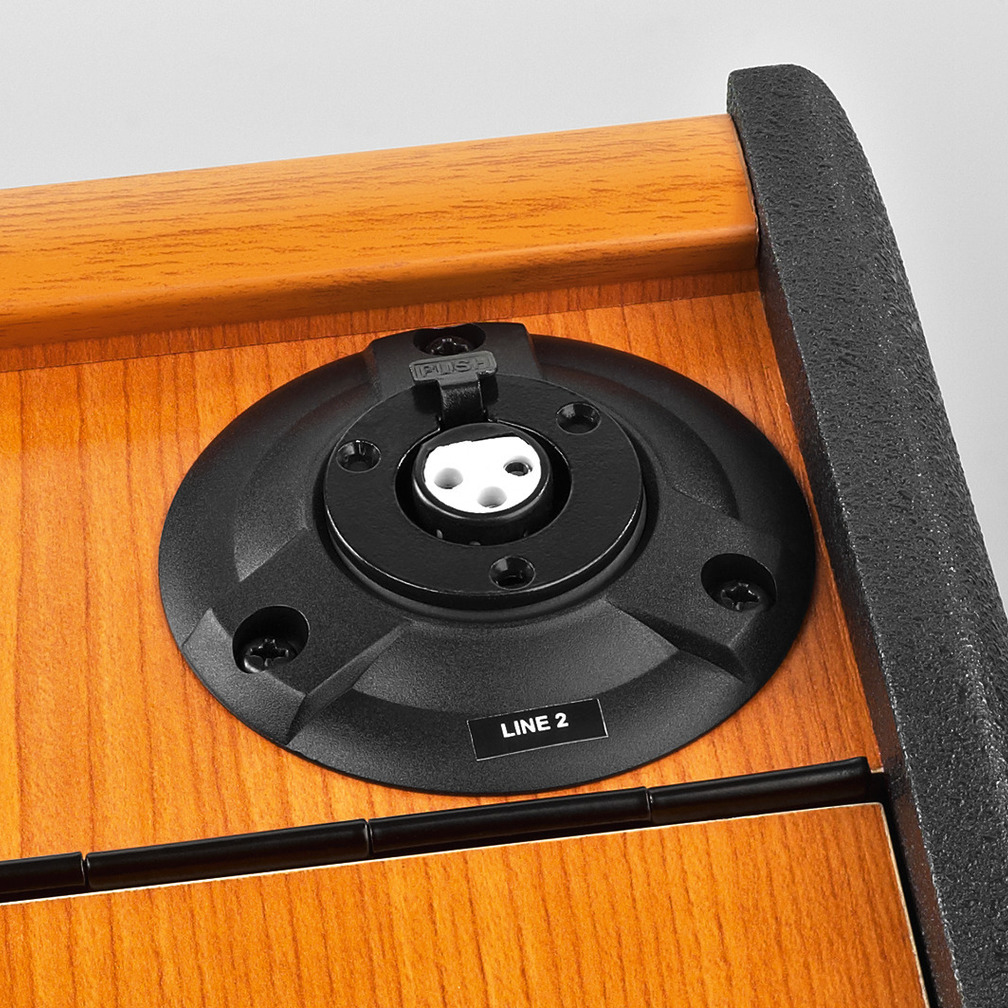

  • 2 shock-absorbing XLR jacks on the top part of the lectern for 2 optional gooseneck microphones (use one microphone input each) or one microphone and one optional LED gooseneck light
  • 12 V phantom power
  • 1 stereo line output via RCA jacks
  • NEUTRIK SPEAKON connection (8 Ω) for external speaker
  • 2-way speaker system
  • High-quality wooden cabinet with replaceable black or wood-coloured bottom plates
  • Top part of the lectern with folding document compartment
  • Delivery consists of 2 boxes
  • Rated power (PRMS): 80 W
  • Peak output power: 120 W
  • Frequency range: 70-20,000 Hz
  • Carrier frequency: 863.1-864.9 MHz
  • Operating range: ≈ 25 m
  • Inputs: 2 mV (mic 1), 13 mV (line), 20 mV (mic 2-3), 100 mV (aux)
  • Power supply: rech. batt. 2 x 12 V/7 Ah, DC 12 V/1.5 A via suppl. charger
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 525 x 1,120 x 440 mm
  • Weight: 30 kg

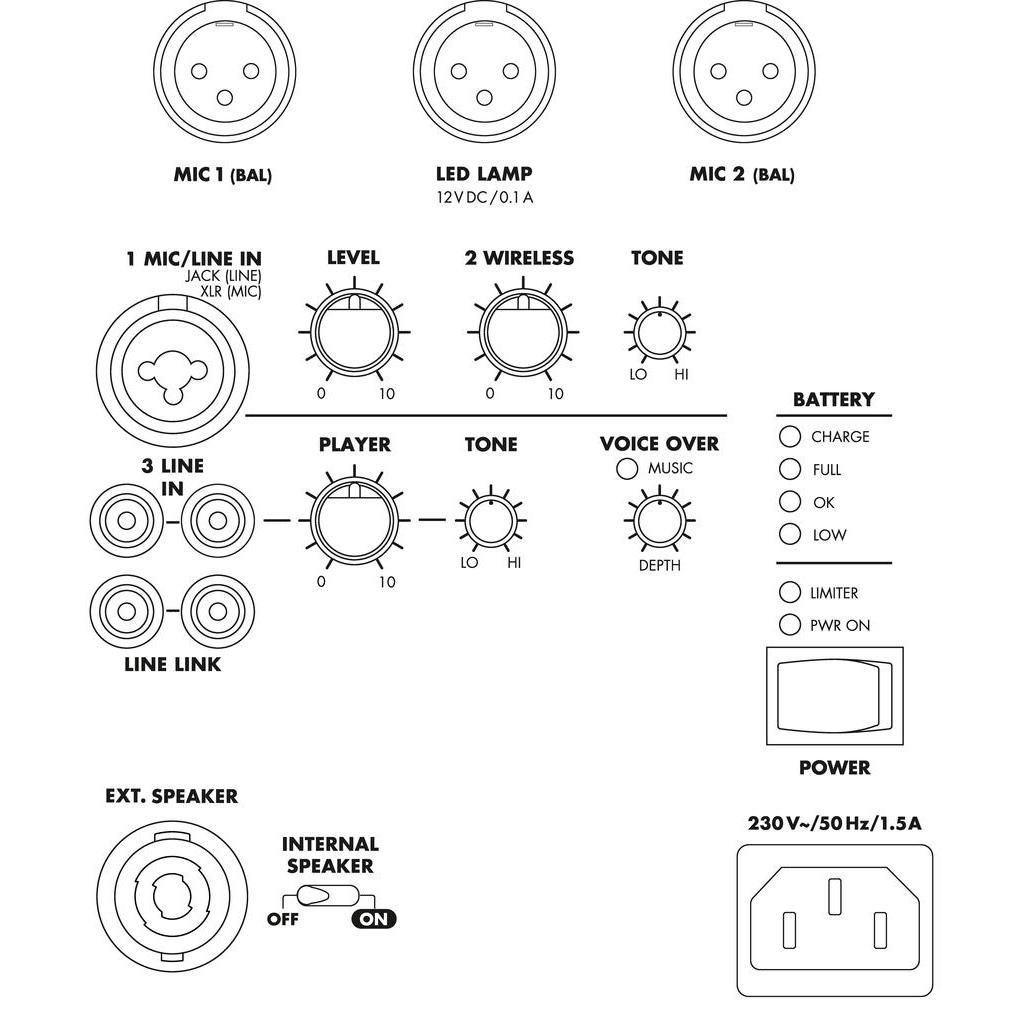

  • Connections: 1 x XLR (mic 1), 1 x 6.3 mm jack (line), 2 x XLR (mic 2-3), 1 x RCA L/R (aux), 1 x RCA L/R (line out), 1 x NEUTRIK SPEAKON (ext. speakers)

Supplied w/o gooseneck microphone and w/o gooseneck lamp. Matching microphone EMG-650P and matching LED gooseneck lamp GNL-304 are available at option.

Licence-free in the EU

Matching TXA-800HT wireless microphone transmitters or TXA-800HSE pocket transmitters are optionally available

Not quite right for you?
Ask us to quote a custom PA sound system

Brand

Monacor

One of Europe’s largest distributors of PA sound and lighting equipment. Here at Monacor UK, we understand sound reinforcement in a very comprehensive sense. We therefore offer our customers a diverse range of products for all of their sound and lighting needs. In addition to classic systems for sound reinforcement such as music systems, amplifiers, loudspeakers, and mixing consoles, our portfolio also includes complex conference systems, accessories for voice alarm or mobile amplifier systems, as well as inductive sound systems, 100v line PA and megaphones. Whether you want to bring sound to one person or thousands: Monacor UK has the right solution for you.

Additional information

Weight30 kg
Dimensions440 × 525 × 1120 cm
Output (RMS)

48w

Frequency Band

UHF

Connection

3 Pin XLR (Female), 6.3mm Jack, RCA Phono, SpeakON (SPK)

Wireless Microphone Channel

Channel 70 (863-865 MHz)

Condition

New

Colour

Black, Wood Effect
