Description

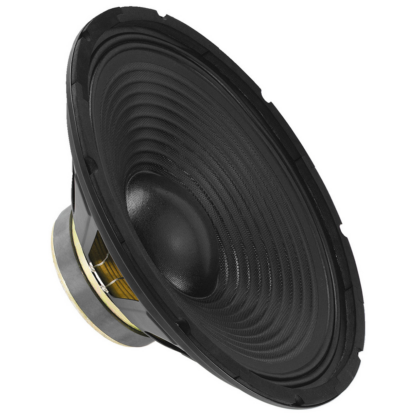

Monacor SP-382PA 15″ 150w RMS universal bass speaker
Universal bass speakers for general purpose applications are available as:
SP-382PA: 15″ 150w RMS @ 8Ω (10.3300)
- Impedance (Z): 8Ω
- Frequency range: f3-4,000 Hz
- Resonant frequency (fs): 25 Hz
- Power rating: 150 W
- Peak music power output: 300 W
- Sensitivity: 94 dB/W/m
- Suspension compl. (Cms): 0.26 mm/N
- Moving mass (Mms): 73 g
- Mech. Q factor (Qms): 3.03
- Electr. Q factor (Qes): 0.99
- Total Q factor (Qts): 0.75
- Equivalent volume (Vas): 270 l
- DC resistance (Re): 7.0 Ω
- Force factor (BxL): 10.87 Tm
- Voice coil induct. (Le): 0.8 mH
- Voice coil diameter: Ø 50 mm
- Voice coil former: aluminium
- Linear excursion (XMAX): ±3.5 mm
- Eff. cone area (Sd): 825 cm2
- Magnet weight: 1.2 kg

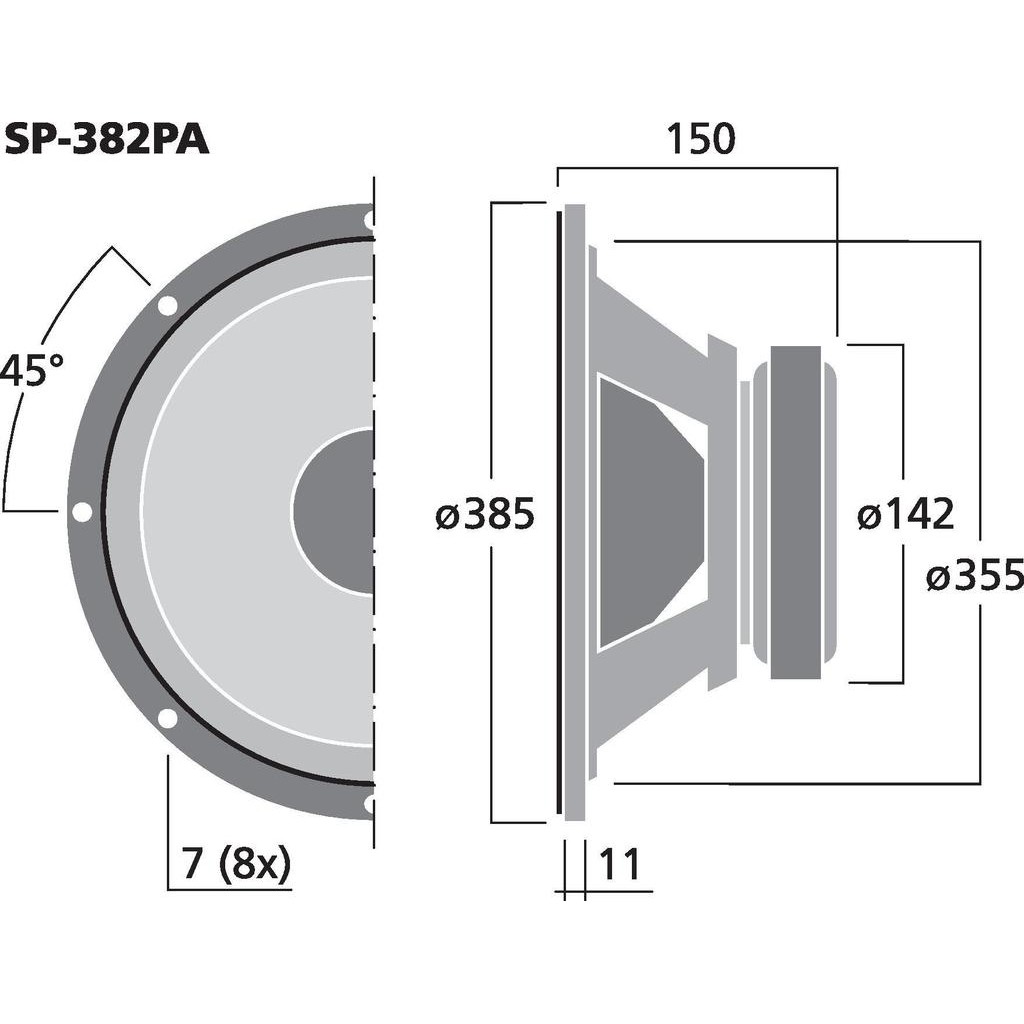

- Magnet diameter: Ø 142 mm
- Mounting cutout: Ø 355 mm
- Mounting depth: 139 mm
- Dimensions: Ø 385 mm x 150 mm
- Outside diameter: Ø 385 mm
- Width: Ø 385 mm
- Depth: 150 mm
- Protective class
- Admissible ambient temperature: 0-40 °C
- Weight: 3.9 kg
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
