Description

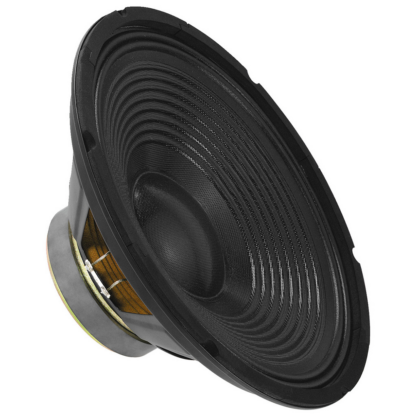

Monacor SP-302PA 12″ 100w RMS universal bass speaker
Universal bass speakers for general purpose applications are available as:
SP-302PA: 12″ 100w RMS @ 8Ω (10.3310)
- Impedance (Z): 8Ω
- Frequency range: f3-4,000 Hz
- Resonant frequency (fs): 45 Hz
- Power rating: 100 W
- Peak music power output: 200 W
- Sensitivity: 90 dB/W/m
- Suspension compl. (Cms): 0.15 mm/N
- Moving mass (Mms): 57 g
- Mech. Q factor (Qms): 2.2
- Electr. Q factor (Qes): 1.47
- Total Q factor (Qts): 0.89
- Equivalent volume (Vas): 51 l
- DC resistance (Re): 7.7 Ω
- Force factor (BxL): 10.5 Tm
- Voice coil induct. (Le): 0.5 mH
- Voice coil diameter: Ø 38 mm
- Voice coil former: aluminium
- Linear excursion (XMAX): ±2.5 mm
- Eff. cone area (Sd): 542 cm2
- Magnet weight: 850 g
- Magnet diameter: Ø 119 mm

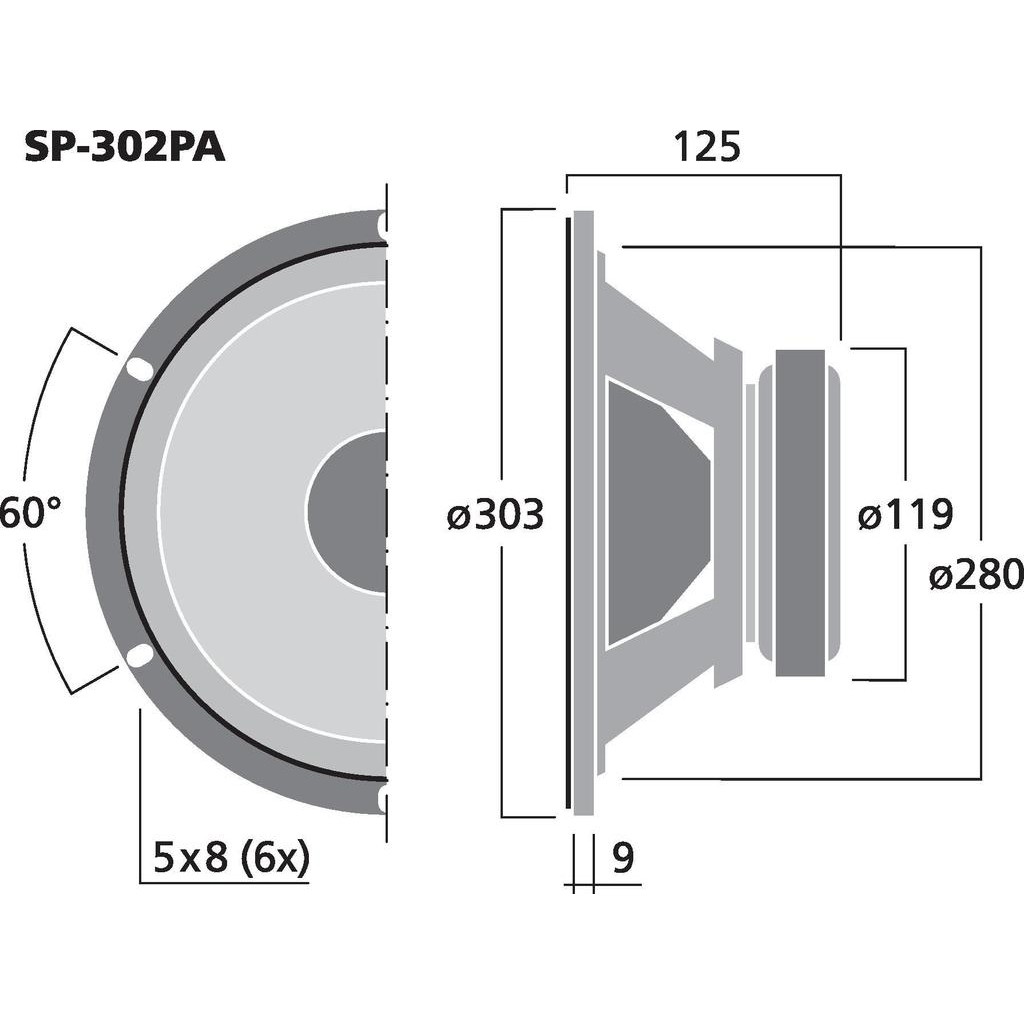

- Mounting cutout: Ø 280 mm
- Mounting depth: 116 mm
- Dimensions: Ø 303 mm x 125 mm
- Outside diameter: Ø 303 mm
- Width: Ø 303 mm
- Depth: 125 mm
- Admissible ambient temperature: 0-40 °C
- Weight: 2.36 kg
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
