Description

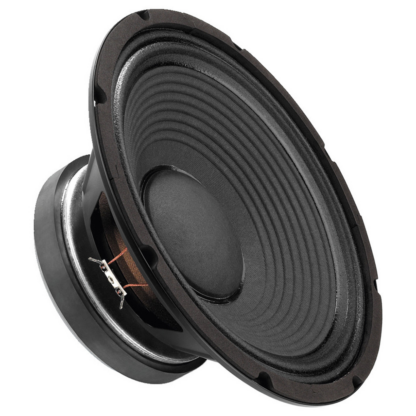

Monacor SP-12/200PA: 12″ 200w RMS @ 8Ω (10.2520) PA bass-midrange speaker
Classic series bass speakers for general stage and professional DJ applications. Excellent workmanship and perfect specifications for bass-reflex speaker systems of high power handling
- Very high efficiency for compact full range speaker systems
- Can combined with mid-high range horns
- Impedance (Z): 8 Ω
- Frequency range: f3-5,000 Hz
- Resonant frequency (fs): 45 Hz
- Power rating: 200 W
- Peak music power output: 400 W
- Sensitivity: 100 dB/W/m
- Suspension compl. (Cms): 0.29 mm/N
- Moving mass (Mms): 43 g
- Mech. Q factor (Qms): 5.20
- Electr. Q factor (Qes): 0.35
- Total Q factor (Qts): 0.33
- Equivalent volume (Vas): 114 l
- DC resistance (Re): 6.8 Ω
- Force factor (BxL): 15.4 Tm
- Voice coil induct. (Le): 1.2 mH
- Voice coil diameter: Ø 78 mm
- Voice coil former: Kapton
- Linear excursion (XMAX): ±4 mm
- Eff. cone area (Sd): 531 cm2
- Magnet weight: 1.8 kg

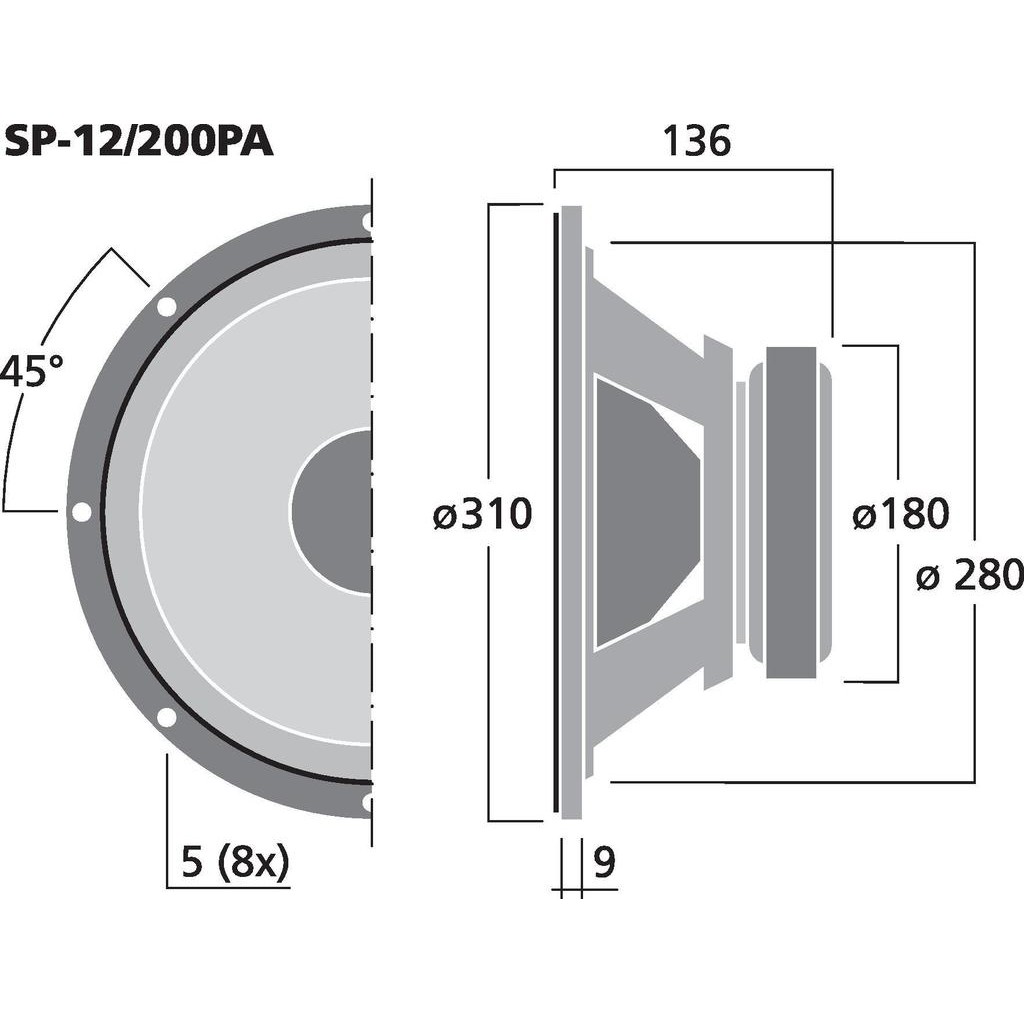

- Magnet diameter: Ø 180 mm
- Mounting cutout: Ø 280 mm
- Mounting depth: 125 mm
- Dimensions: Ø 310 mm x 136 mm
- Outside diameter: Ø 310 mm
- Width: Ø 310 mm
- Depth: 136 mm
- Admissible ambient temperature: 0-40 °C
- Weight: 5.74 kg
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
