Adastra SA120 120w 100v line secure wall amplifiers with UHF mic + media player

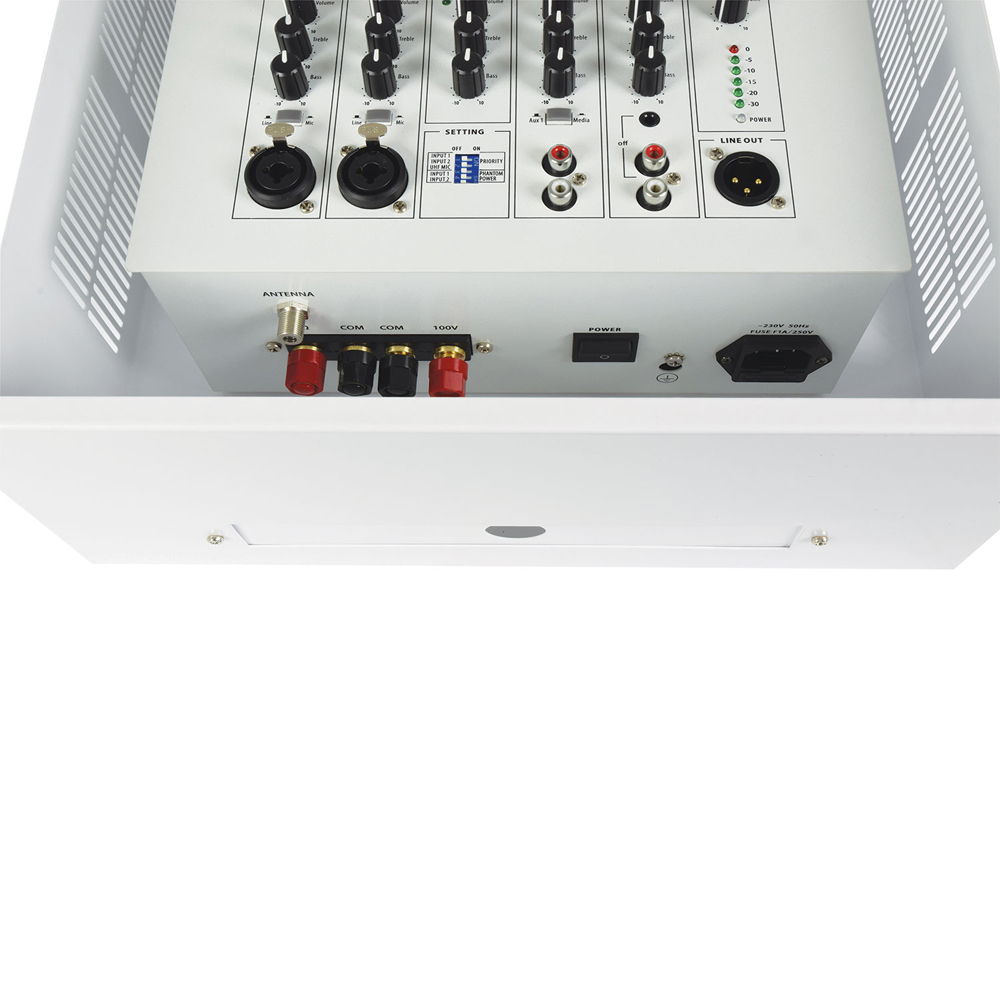

Public address mixer-amplifier built into a surface-mount secure box. A powerful output can drive either 100V line or low impedance speakers from binding post terminals inside the cabinet. The system includes a handheld UHF microphone with an inbuilt receiver and 2 switchable wired mic/line inputs are provided on combo XLR/jack sockets. Each mic input has switchable +48V phantom power and priority override, whch mutes the Aux inputs during voice operation. An internal media player enables playback of audio tracks from USB/SD player, FM tuner or Bluetooth pairing. Alternatively, line inputs can be connected to the Aux 1 RCA sockets or separate Aux 2 RCA/3.5mm jack sockets. The combination of flexible input section and a high efficiency amplifier in a strong, lockable cabinet provides a complete solution for buildings where security and ease of use is essential.
- UHF wireless handheld mic included
- USB/SD media player
- Bluetooth receiver
- 2 switchable mic/line inputs
- Switchable phantom power for condenser mics
- 100V or low impedance operation
- Secure lockable cabinet
- Output power : rms 120W
- Fuse: F1AL (20x5mm)
- Power supply: 170-264Vac, 50Hz (IEC)
- Amplifier : construction: Class-D + output transformer
- Phantom power: +20V switchable to each XLR input
- Input impedance: Mic: 600 Ohms / Line: 10k Ohms
- Input sensitivity: Mic: -42dB / Line: -10dB
- Frequency response : mic: 85Hz-22kHz
- Frequency response : line: Line 1+2: 80Hz-24kHz, Line 3+4: 85Hz-24kHz
- SNR: Mic: 66dB / Line: 76dB
- THD: <0.4% @ 1kHz

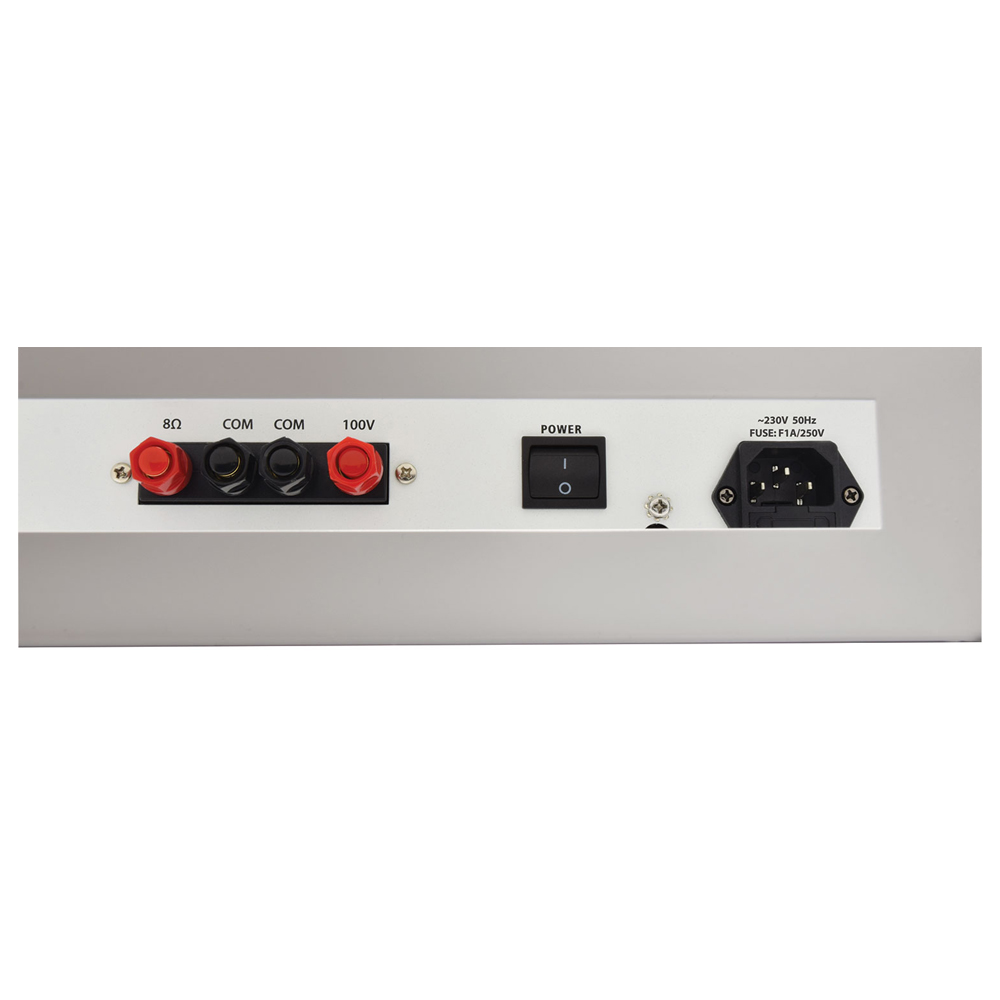

- Speaker outputs: 8 Ohm / Com / Com / 100V
- Music source: USB/SD player, FM tuner, Bluetooth
- Mic/line inputs: 2 x combo XLR/jack
- Line inputs: RCA (Aux 1), RCA or 3.5mm jack (Aux 2)
- Line output; XLR male connector
- Equalization: Bass + Treble each channel
- Bluetooth version: 2.0
- Carrier frequency: 864.5MHz
- Batteries : handheld transmitter: 2 x AA (alkaline)
- Wireless range: 50m (max)
- Dimensions: 375 x 345 x 160mm
- Weight: 8.70kg
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
