Monacor PA-948S Digital Power Amplifier

SKU: PA-948S

£547.00 + VAT    £656.40 incl. VAT

480w into 100v line digital slave power amplifier

In stock

100V Line

PDF

Description

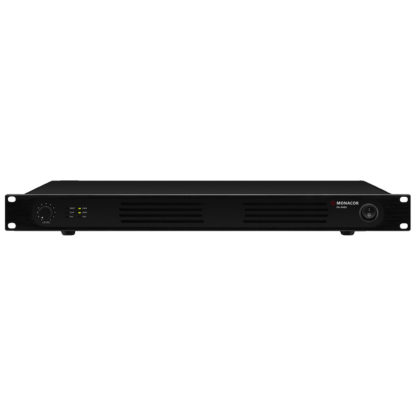

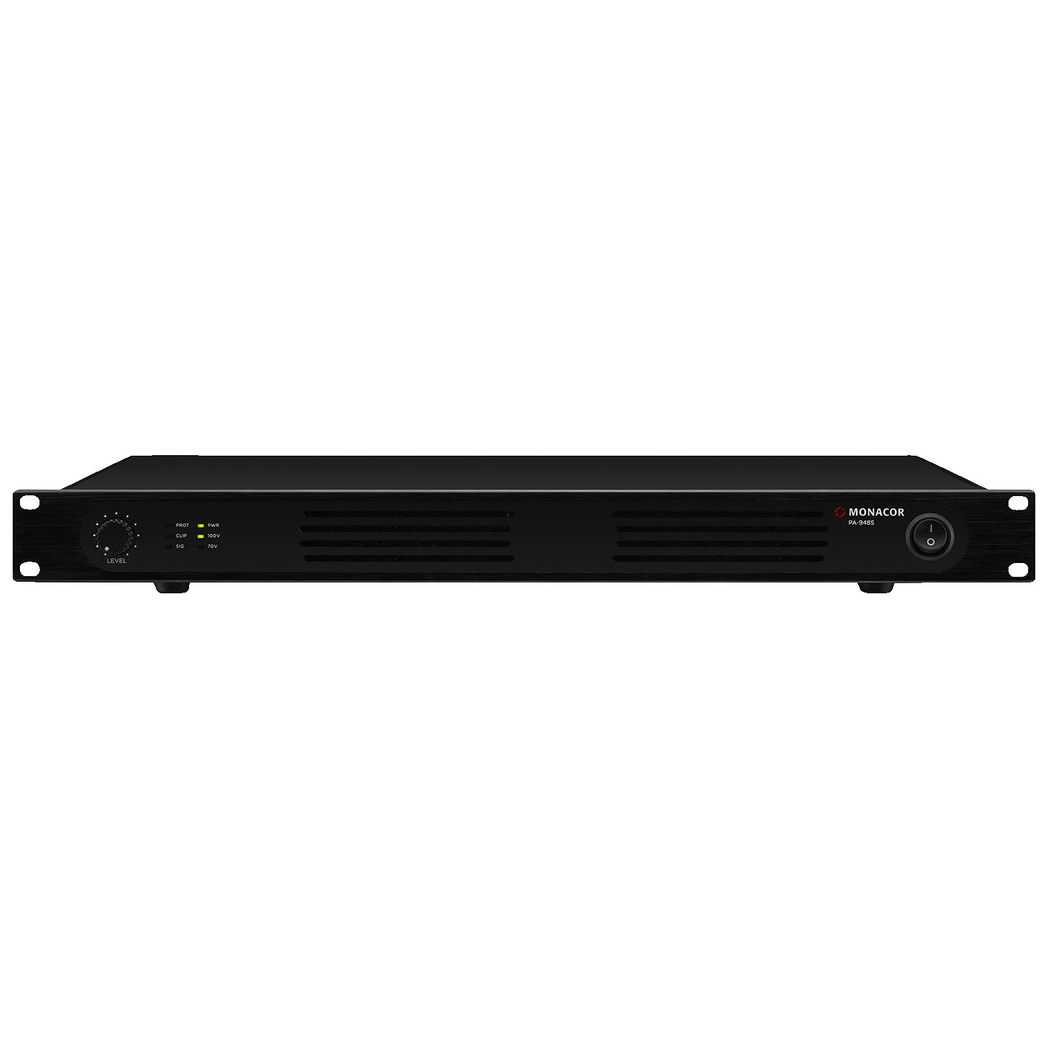

Monacor PA-948S 480w 100v line mono digital power amplifier

  • Power rating: 480w at 100v
  • Temperature-controlled fan, continuously adjustable
  • Protected against overheating, overload and short circuit
  • LED indication for clip, protect, overtemperature, output level and 100 V/70 V
  • Feed-through output (link)
  • Speaker outputs via screw terminals
  • Channels: 1
  • Frequency range: 80-16,000 Hz
  • S/N ratio: > 98 dBA
  • THD: < 1%
  • Mains voltage: ~ 230 V
  • Mains frequency: 50 Hz
  • Admissible ambient temperature: 0-40 °C
  • Width: 483 mm
  • Height: 44 mm
  • Depth: 255 mm
  • Rack spaces, RS: 1
  • Connections: 1 x 6.3 mm/XLR combo (input), 1 x XLR (link), screw terminals (speakers)
  • Output impedance: 70 V/10 Ω, 100 V/20 Ω
  • Inputs: 710 mV/10 kΩ, balanced
  • Power consumption, operation: 1100 VA
  • Weight: 4 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight4 kg
Dimensions25.5 × 48.3 × 4.4 cm
Output (RMS)

480W

Zones

1

Connection

3 Pin XLR (Female), 3 Pin XLR (Male), 6.3mm Jack, Screw Terminals

Colour

Black

Condition

New

Brand

Monacor

Monacor is one of Europe’s largest distributors of PA sound and lighting equipment. Monacor understand public address and sound reinforcement comprehensively and offer a diverse range of products for all commercial sound and lighting needs. In addition to classic sound systems for sound reinforcement such as music systems, amplifiers, loudspeakers, and mixing desks, the full portfolio also includes complex conference systems, accessories for voice alarm or mobile amplifier systems, as well as induction loop sound systems, 100v line PA and megaphones. Whether you want to bring sound to one person or thousands: Monacor has the right solution for you. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!
