Monacor PA-900S Power Amplifier

SKU: PA-900S

£264.67 + VAT    £317.60 incl. VAT

120w into 100v line or 4-8Ω low impedance slave power amplifier

In stock

100V Line

PDF

Description

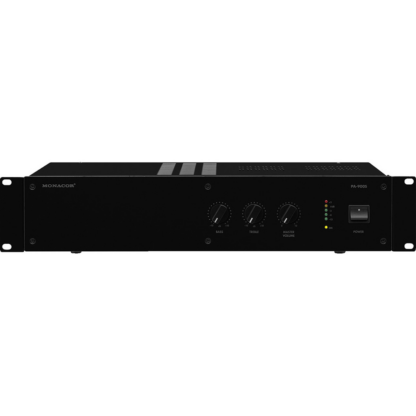

Monacor PA-900S 120w 100v line power amplifier

The Monacor 900 series of public address power amplifiers run from DC batteries or AC mains supplies. Can be used with either 100v line or 8 ohm low impedance loudspeakers in commercial applications such as factories, offices, schools, Churches etc. Supplied with 19″ rack brackets

  • 2-way tone control
  • Switchable low cut filter
  • Speaker outputs via screw terminals
  • Feed-through output (link)
  • Mains operation or 24V emergency power operation
  • 482mm (19″) rack installation with supplied mounting brackets
  • Power rating: 120 W
  • Peak music power output (PMAX): 160 W
  • Inputs: 765 mV (line)
  • Frequency range: 50-15,000 Hz, ±3 dB
  • Equalizer bass: ± 10 dB/100 Hz
  • Equalizer treble: ± 10 dB/10 kHz
  • S/N ratio: > 80 dB
  • THD: < 0.5%
  • Power supply: ˜ 230 V/50 Hz/300 VA,
  • DC current: 24 V/9 A
  • Mains voltage: ˜ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation: 300 VA
  • Operating voltage (possible alternative): DC current 24 V
  • Power supply (possible alternative): DC current 9 A
  • Admissible ambient temperature: 0-40 °C
  • Dimensions: 482 x 88 x 275 mm, 2 RS
  • Width: 482 mm
  • Height: 88 mm
  • Depth: 275 mm
  • Rack spaces, RS: 2
  • Weight: 9.5 kg

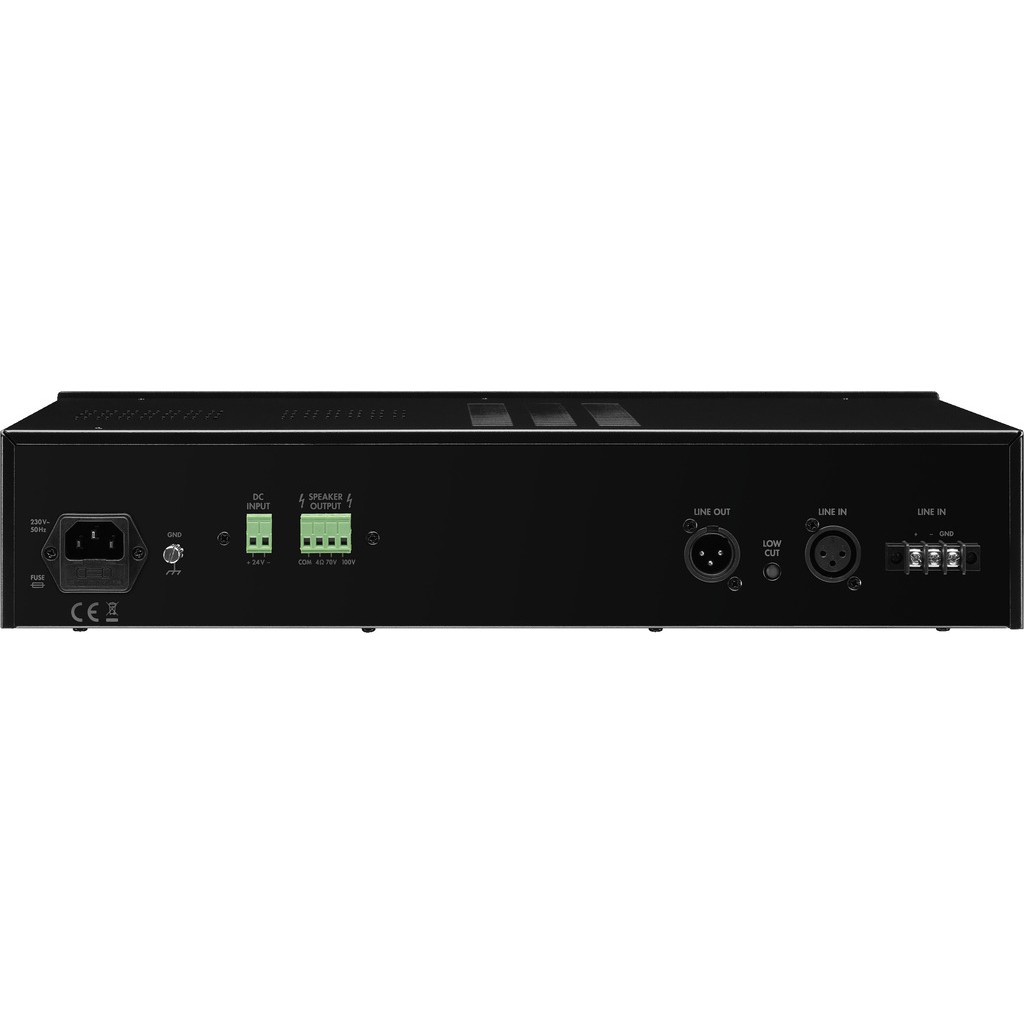

  • Connections: 1 x XLR, screw terminals (line in), 1 x XLR (line out), screw terminals (speakers)

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight9.5 kg
Dimensions27.5 × 48.2 × 8.8 cm
Zones

1

Connection

3 Pin XLR (Female), 3 Pin XLR (Male), Screw Terminals

Condition

New

Colour

Black

Brand

Monacor

Monacor is one of Europe’s largest distributors of PA sound and lighting equipment. Monacor understand public address and sound reinforcement comprehensively and offer a diverse range of products for all commercial sound and lighting needs. In addition to classic sound systems for sound reinforcement such as music systems, amplifiers, loudspeakers, and mixing desks, the full portfolio also includes complex conference systems, accessories for voice alarm or mobile amplifier systems, as well as induction loop sound systems, 100v line PA and megaphones. Whether you want to bring sound to one person or thousands: Monacor has the right solution for you. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!
