Fonestar MX-848 Mixer

Description

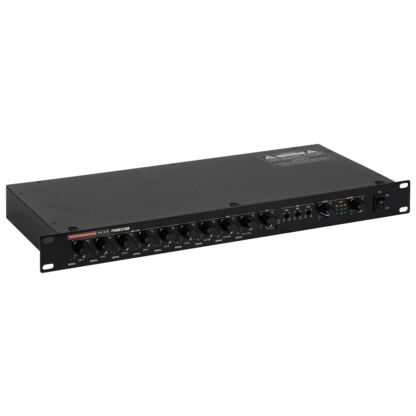

Fonestar MX-848 mixer/pre-amplifier with phantom power

Passive mono mixer with 6 balanced micro/line level input channels and 3 stereo auxiliaries. Microphone input with paging priority. Phantom power supply. Input level LED indicators. Suitable for PA and sound installations.

• Features:
  • Mixer/preamplifier
  • Microphone input with paging priority
  • Phantom power supply

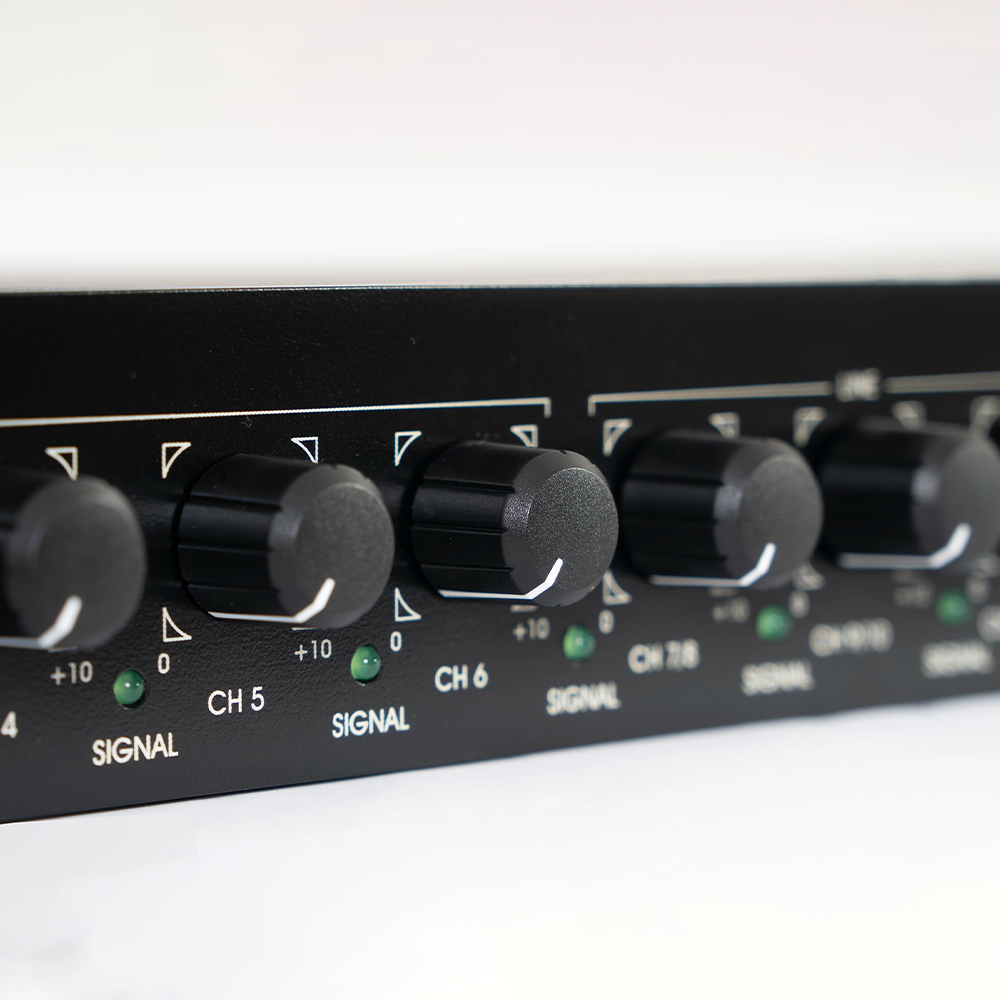

  • LED output level indicators

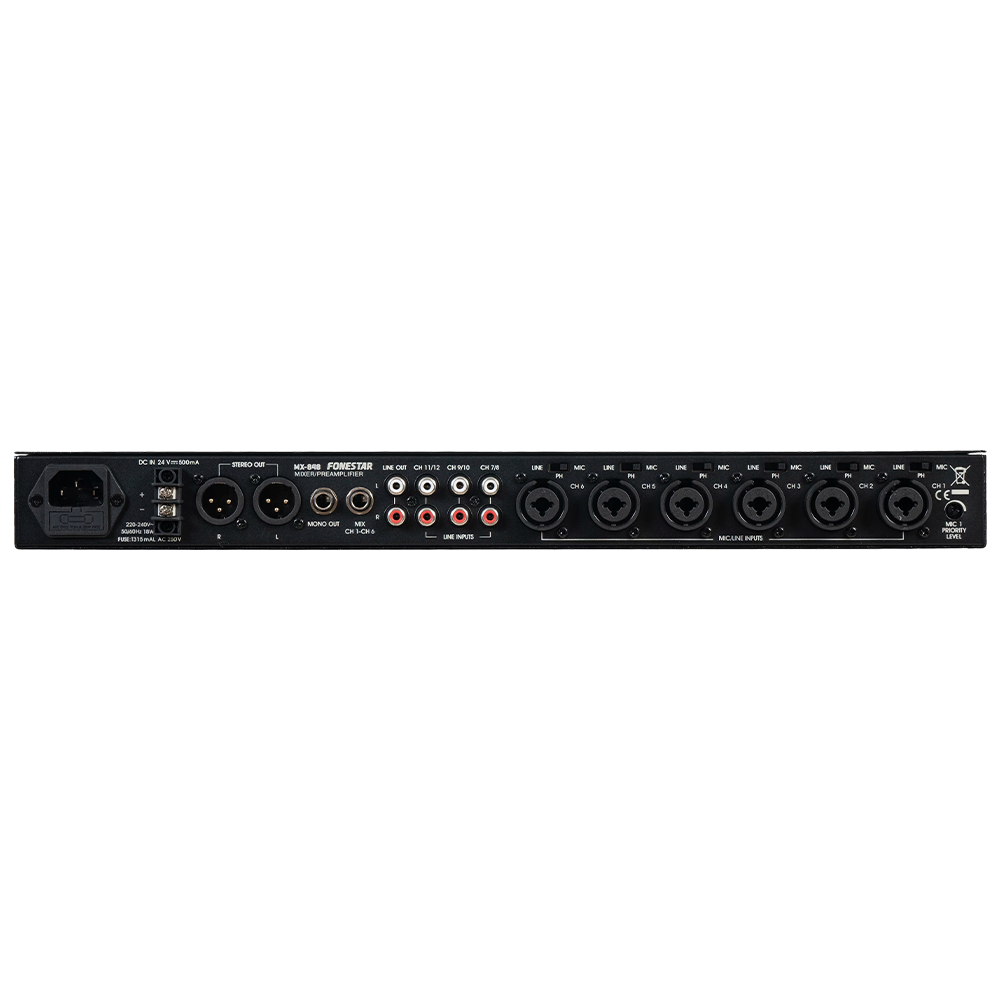

• Inputs:
  • 6 balanced mics/lines
  • combo (XLR and 6.3 mm jack), 1,500 Ω 7.7 mV y 10,000 Ω 775 mV switchable
  • 3 stereo aux, 2 x RCA, 10,000 Ω 2.4 V RMS
• Outputs:
  • 1 balanced stereo master, XLR 120 Ω 775 mV RMS
  • 1 balanced mono master, 6.3 mm jack, 120 Ω 775 mV RMS
  • 1 balanced mono mix out, 6.3 mm jack 120 Ω 775 mV RMS
  • 1 line out, 2 x RCA 120 Ω 775 mV RMS

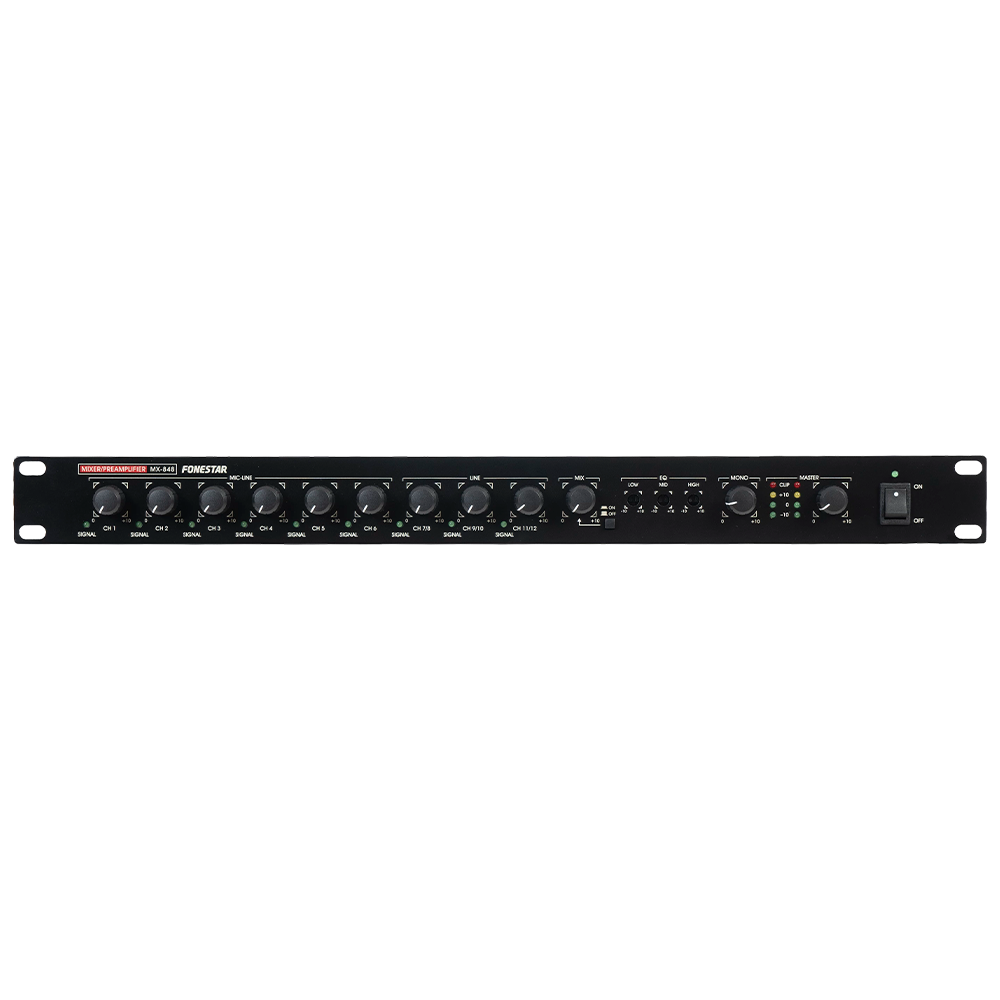

• Controls: Tone: master output bass, mid and treble
• Volume: inputs 1 to 12 and general volume (stereo and mono master)
• Frequency Response: 20-22,000 Hz
• Distortion: Harmonic: < 0.05% at 1 kHz
• S/N Ratio:
  • Microphones: > 103 dB
  • Aux/Line: > 103 dB
• Phantom Power: 18 V in mics. 1 to 6, selectable
• Priority: Mic. 1 depending on signal level, selectable
• Power Supply:
  • 230 V AC, 18 W and 24 V DC, 500 mA
  • 115 v AC on request
• Dimensions: 483 x 44 x 220 mm depth. 1 U 19″ rack
• Weight: 3 kg
