Description

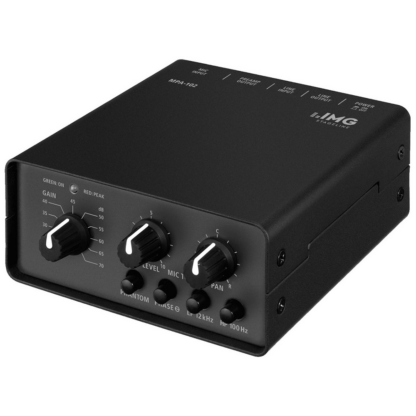

IMG Stageline MPA-102 single input low noise microphone pre-amplifier with phantom power – supplied with a mains power supply adapter
- 1 mic input
- Input sensitivity: 0.3-150 mV, switchable
- Input impedance: 2.2 kΩ (mic), 10 kΩ (line)
- Output signal:1-12 V (line, balanced), 1-6 V (line, stereo)
- Output impedance: 100 Ω
- Gain: 20-70 dB (mic), 0 db (line)
- Crossover frequency: 100 Hz/-3 dB, 12 dB/oct. (low cut), 12 kHz/-3 dB, 12 dB/oct. (high cut)
- Low cut: 100 Hz/-3 dB, 12 dB/oct.
- S/N ratio: > 66 dB, unweighted (mic), 80 dB, unweighted (line)
- Gain, 11 steps 20-70dB
- LED green/red for operation/peak
- Phantom power +24V, can be switched on additionally
- Switchable microphone phase
- Lo cut 100Hz, hi cut 12kHz, 12dB/oct., switchable
- 1 pre-amplifier output
- 1 stereo line input
- 1 stereo line output
- Level control and panorama control for mixing the microphone signal to the stereo line channel
- Frequency range: 20-20,000 Hz
- THD: < 0.01%
- Power supply: via supplied plug-in PSU, alternatively 4 x 9 V battery
- Dimensions: 116 x 55 x 125 mm
- Weight: 980 g

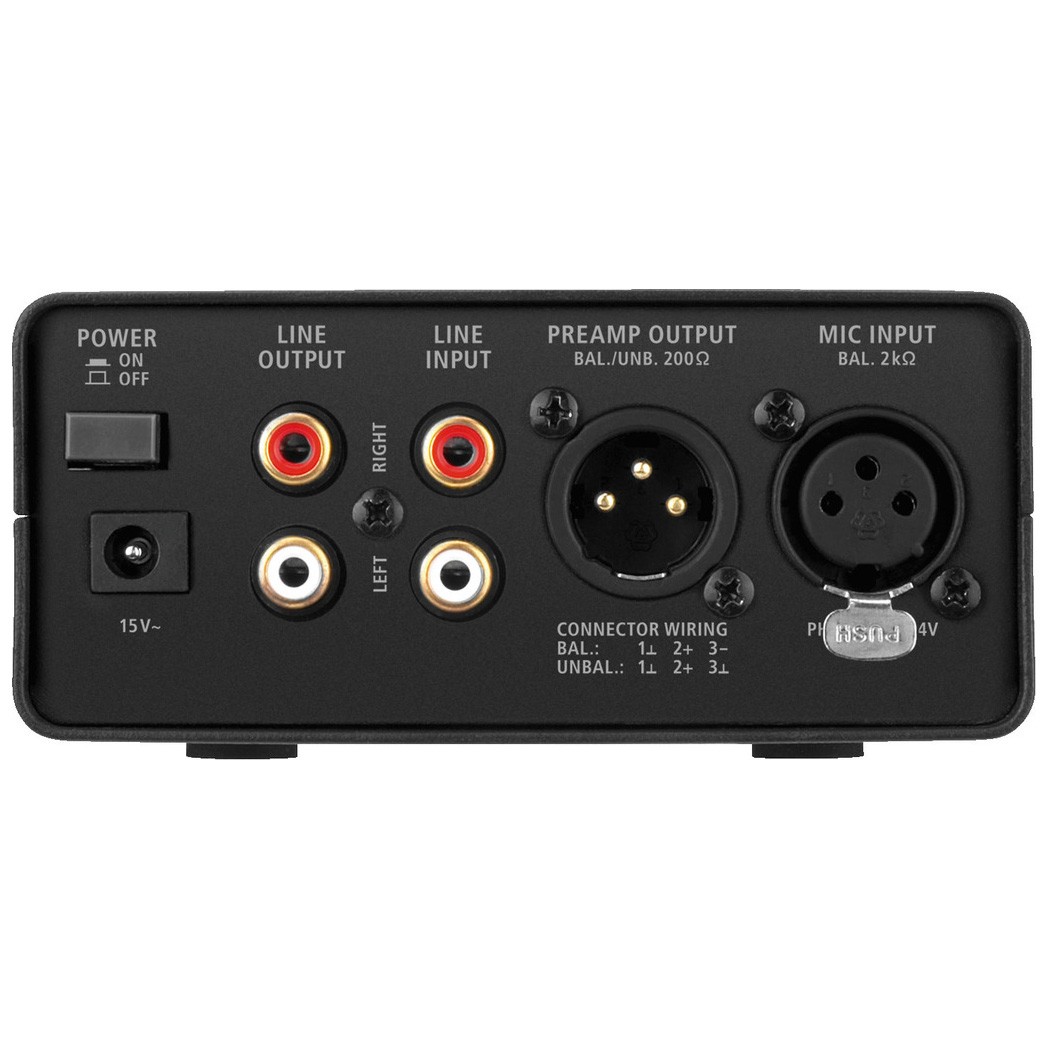

- Inputs: 1 x XLR (mic), 1 x RCA L/R (line)
- Outputs: 1 x XLR (preamp), 1 x RCA L/R (line)
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
