Induction loop

Signet ML1/K counter induction loop kit

£75.00 £90.00 incl. VAT

1-2-1 counter induction loop kit

induction loop

PDF

Description

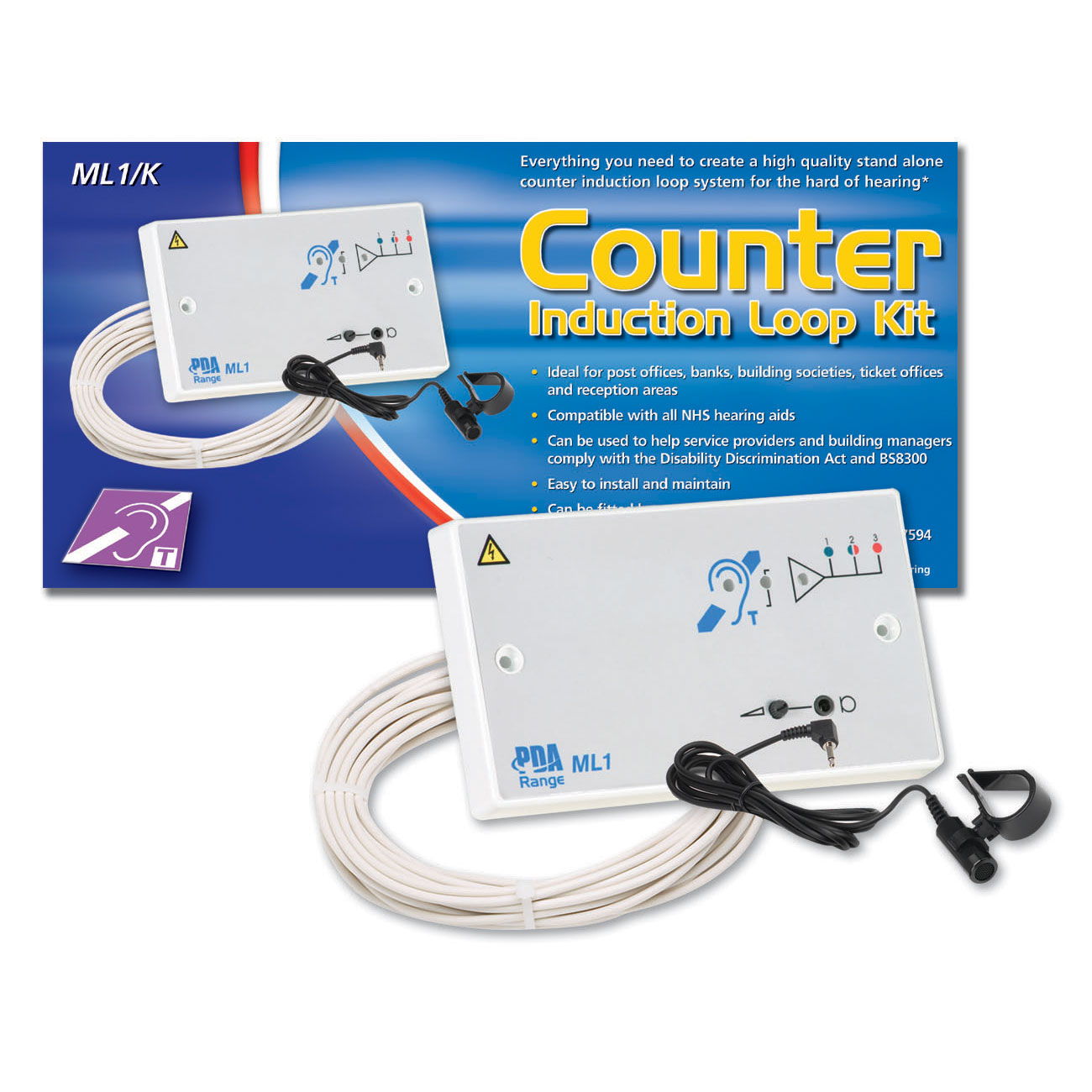

Signet ML1/K counter induction loop kit

SigNET’s new ML1/K counter induction loop amplifier is ideal for use in post offices, banks, building societies, ticket offices and reception areas. Mountable on a standard UK 25mm double gang back box, it can generate a loop listening field of approximately 1.2m² and includes one microphone input, one balanced line level audio input and indicators for input peak, mains on and loop strength. A number of easy to adjust user and engineer controls are also provided. Microphone and loop cable are supplied as part of the kit

  • Ideal for banks, post offices, small meeting rooms, reception desks, ticket booths and any other application requiring restricted or small area coverage
  • Requires no specialist audio experience or connectors – can be fitted by any competent electrician
  • Space-saving double-gang wall-mounting amplifier fits standard UK 25mm back boxes (requires fixed mains wiring)
  • Omni-directional AMT microphone (supplied) plugs directly into 3.5mm socket on the amplifier’s front
  • Line/outreach socket also provided (max 3 outreach plates per system)
  • User-adjustable mic. sensitivity and engineer-adjustable loop drive and input level controls
  • Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed
  • Induction Loop Type: Wall mounting (requires fixed mains wiring and a 25mm back box)
  • Coverage: 1.2m2 approx.
  • Dimensions: W 143 x H 83 x D 32mm; 300g (amplifier only)
  • Weight: 0.635 kg (amplifier only)
  • Inputs: 1 x 3.5mm remote mic. socket; 1 x Line/Outreach socket (max. 3 Outreach plates per ML1)
  • Indicators: Input level; power on; loop drive meter.
  • Controls: Mic. input level, line input level; loop drive
  • Kit content: ML1 amplifier; AMT microphone; TX2 pre-formed counter loop; ‘AFILS fitted’ sticker

Brand

Signet

Additional information

Weight0.635 kg
Dimensions3.2 × 14.3 × 8.3 cm
