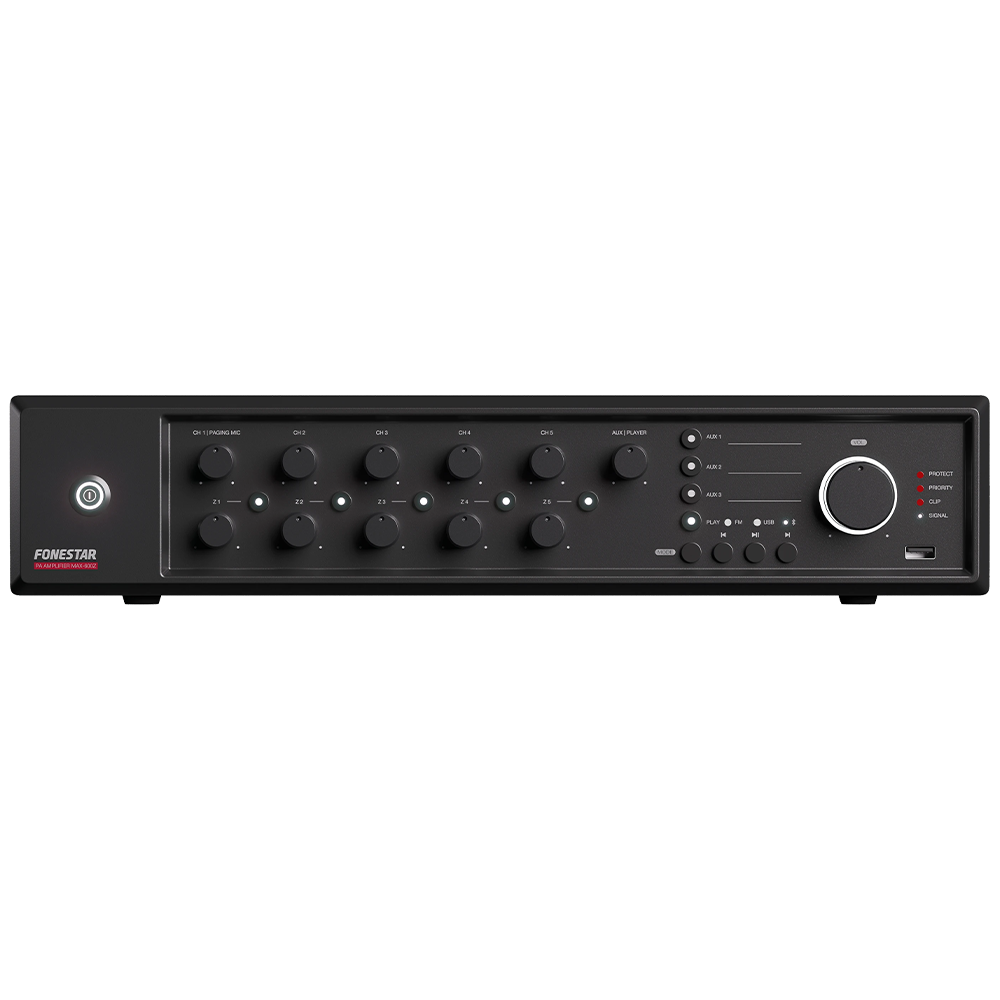

Fonestar MAX-600Z Zone Mixer Amplifier

Description

Fonestar MAX-600Z 600W 100V line 5-zone mixer amplifier with Bluetooth

MAX-600Z: total control and professional sound for multi-zone installations

The MAX-600Z is a 600 W RMS multi-zone PA amplifier, designed for demanding installations that require individual zone control, high power, and maximum reliability. It features Class D technology and a SMPS switched-mode power supply, ensuring energy efficiency and reduced heat generation. It also includes a complete Bluetooth/USB/FM player and can be controlled via a wall-mounted remote panel or ZONEMIC-6 zone microphone.

Technical advantages of the MAX-600Z for professionals

The MAX-600Z stands out for its operational versatility and advanced features:

• 5 independent output zones with volume selector and off option
• Flexible inputs: 5 mic/line channels with phantom power, 3 auxiliary RCA, and emergency input
• Priority control via chime tones, contact closures, attenuator priority, and emergency input
• Fanless silent cooling, ideal for environments requiring quiet and maintenance-free operation

Why choose the MAX-600Z multi-zone PA amplifier?

This device is ideal for professional installers seeking reliability and control in public address systems for segmented spaces:

• Configurable speaker outputs at 100 V, 70 V or 4 Ω, and multi-zone output option up to 240 W per zone
• Built-in protections against overcurrent, overload, overheating, and short circuits
• Precise controls: mix, gain, tone, priority level, and VOX with 7 adjustable levels
• Compact design (2U, 19” rack), easy to integrate into fixed installation systems

Specifications

• Features:
  • Class D PA amplifier and SMPS switch-mode power supply
  • Bluetooth/USB/FM player
  • ZONEMIC-6 zone microphone input
  • Input for remote wall panel
  • Microphone input with mix, gain and priority level control
  • Ringtone generator (Chime)
  • 3 auxiliary inputs
  • Emergency input and mute for connection to alarm and evacuation systems
  • 24 V attenuator priority
  • 3rd wire output (100 V) with attenuator priority
  • Tone controls
  • 100 V, 70 V and 4 Ω outputs
  • 5 outputs zones with volume control and Off
• Power: 600 W RMS
• Frequency response: 45-22,000 Hz (-10 dB)
• Distortion: THD+N: <0.5% at 1 kHz
• S/N ratio: Mic >73 dB, Line >80 dB, Aux >84 dB
• Protections: Soft start, over-current, overload, over-temperature and short circuit

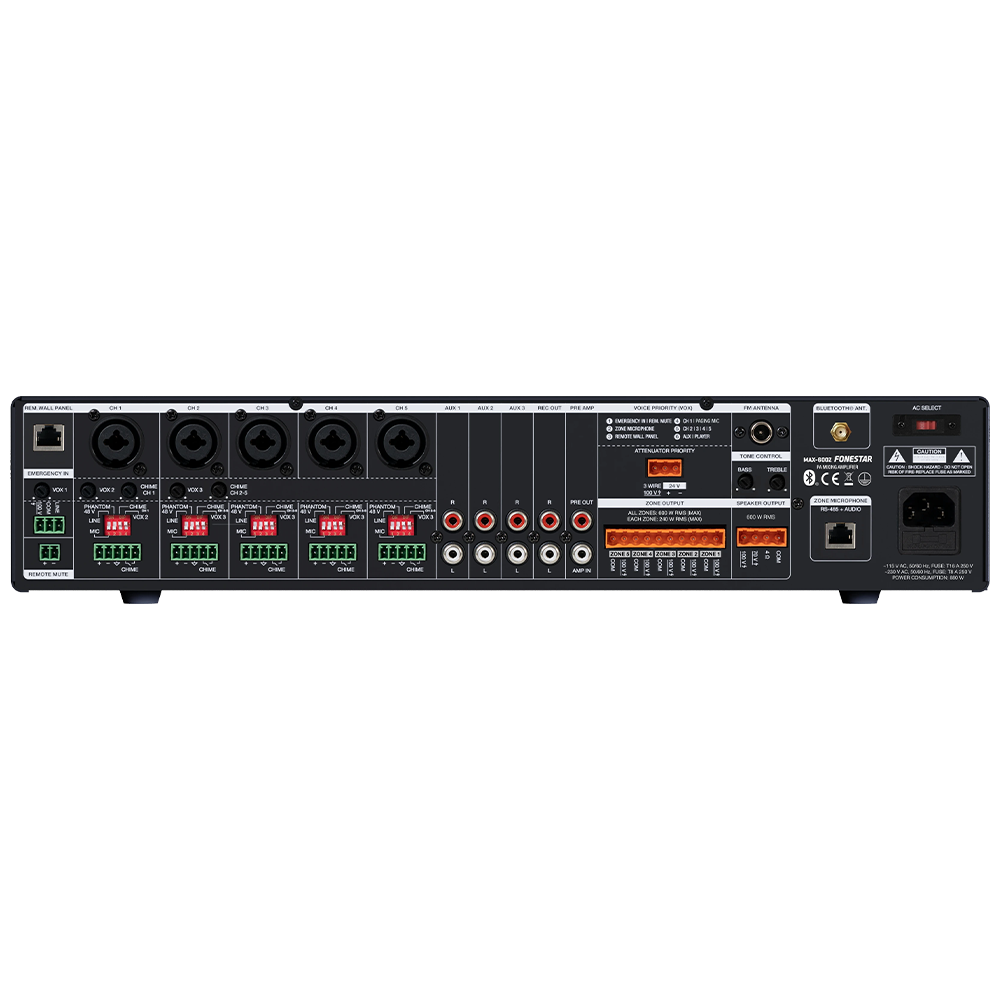

• Inputs:
  • Zone microphone ZONEMIC-6, RJ45, up to 200 m cable length
  • Remote wall panel, RJ45, 2 x 250 mV RMS (-12 dBV)
  • CH 1, 2, 3, 4 and 5 micro/line balanced with 48V phantom power. Combo (XLR + 6.3 mm) and euroblock. Ring tones for contact closure
  • Mic signal level: 5’2 mV RMS (-45 dBV) / 600 Ω
  • Line signal level: 220 mV RMS (-13 dBV) / 100k Ω
  • 3 x AUX. 2 x RCA connector. Signal level 270 mV RMS (-11 dBV) / 47.000 Ω
  • 1 x emergency. Euroblock connector. Signal level: line 326 mV RMS (-10 dBV) or line 100 V
  • Mute (Emergency Priority) by closing contacts. Euroblock connector
  • 1 Amp-in. RCA connector. Signal level 1’2 V RMS (+ 1’5 dBV)
• Outputs:
  • 1 REC. 2 x RCA connector. Signal level 316 mV RMS (-10 dBV). Pre-master.
  • 1 Pre-out. RCA connector. Signal level 1.2 mV RMS (+1.5 dBV)
  • 100 V, 70 V or 4 Ω speaker output, or 5 zones of 100 V loudspeakers with 7-position volume selector and OFF (max. 240 W per zone)
  • Euroblock connector
  • 1 Attenuator priority, 24 V 100 mA and contact closure. Euroblock connector
  • 1 3rd priority wire for attenuators (100 V)
• Impedance: 4 Ω and 100 V (16.7 Ω) and 70 V (8.17 Ω) line, euroblock
• Functions:
  • Priority of entries (in order of attenuation):
    · 100V Emergency Input with selectable signal level (VOX)
    · Mute by closing contacts
    · ZONEMIC-6 zone microphone
    · Remote wall panel
    · Microphone 1 with selectable signal level (VOX)
    · Channels 2 | 3 | 4 | 5 with selectable signal level shared CH 2-3-4-5 (VOX)
    · Auxiliary Inputs | Player
  • Light ignition ring in volume control, AUX input indicators, zones and player.
  • Indicator lights for power, signal, clip, priority activation and protection
  • Induction cooling, fanless. Silent and maintenance free
• Player:
  • Bluetooth/USB/FM player for ambient music playback
  • 5.3 Bluetooth
  • Autoplay, starts playback automatically when switched on
  • Memory of the last selected mode
  • Playback mode memory (random, repeat).
• Controls:
  • Microphone volume
  • Master volume
  • Auxiliary input selector or player
  • Zones with power on and 7 volume positions
  • Tone: bass and treble (±10 dB 100 Hz and 10k Hz).
  • Mic/line/phantom selector, ring tones and priority
  • Ringing tone level (chime)
  • Priority activation signal level (VOX)
• Temperature:
  • Operation: -10º ~ 40ºC
  • Storage: -20º ~ 60ºC
• Maximum humidity: 90%
• Power supply:
  • 230/115 V AC 50-60Hz
  • Power consumption: 750 W
  • AC fuse 230 V 8 A / 115 V 16 A
• Dimensions: 430 x 89 x 320 mm depth. 2 U 19” rack
• Weight: 12.1 kg
• Includes:
  • FM antenna
  • Bluetooth antenna
  • Power cable
  • Rack mounts
•  Optional: ZONEMIC-6: Zone microphone
