Description
Adastra KV6 6½” 30W 2-way low profile 8Ω ceiling speaker

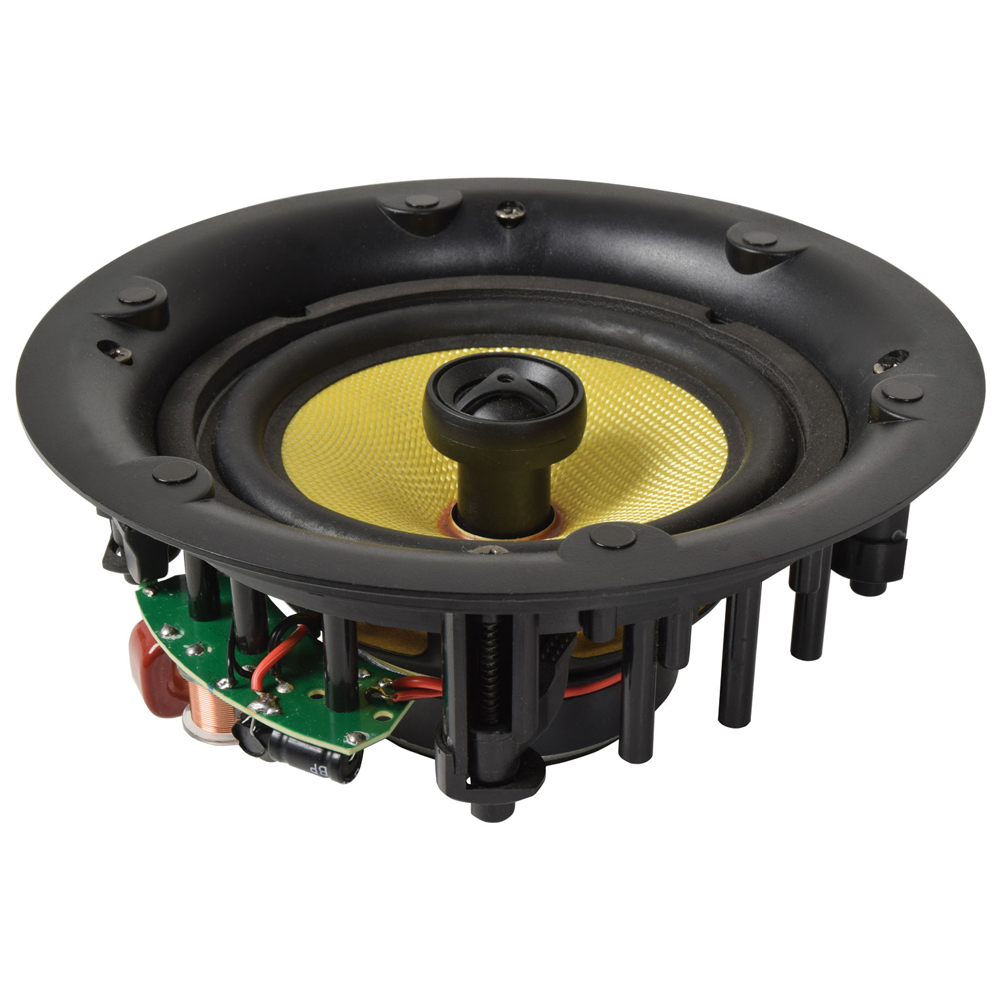

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV speaker is served by a full 2-way passive crossover network, providing an accurate and efficient frequency balance. Designed without compromise to deliver maximum power and quality from this class of ceiling speaker.
- Full 2-way passive crossover

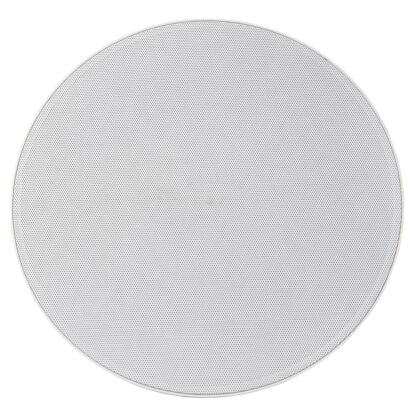

- Magnetic low profile steel grille
- Heavy duty glass-aramid cone
- Braced ABS basket with integral wave guide
- Supplied individually
- Construction: ABS basket & powder coated steel grille
- Impedance: 8 Ohms
- Dispersion angle: 120°
- Power handling : max: 60W
- Main driver: 165mmØ (6.5″) glass-aramid diaphragm
- Magnet weight: 355g
- HF driver: 25mmØ (1″) ASV diaphragm
- Power handling : rms: 30W
- SPL @ 1W/1m: 90dB
- Max. SPL: 103dB
- Frequency response: 50Hz – 20kHz
- Cutout: 205mmØ
- Mounting depth: 95mm
- Dimensions: 94 x 232mmØ
- Weight: 1.312kg
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
