Description

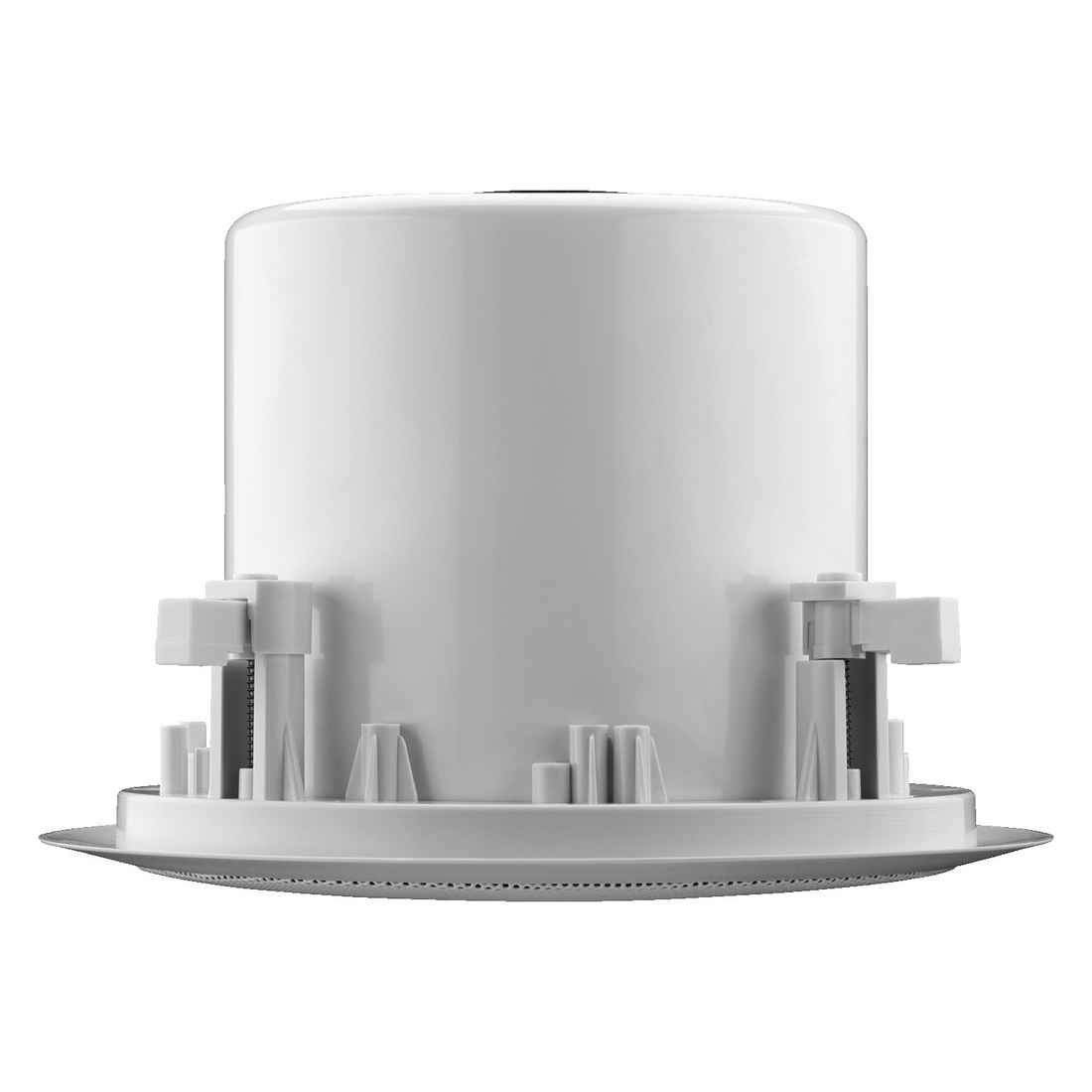

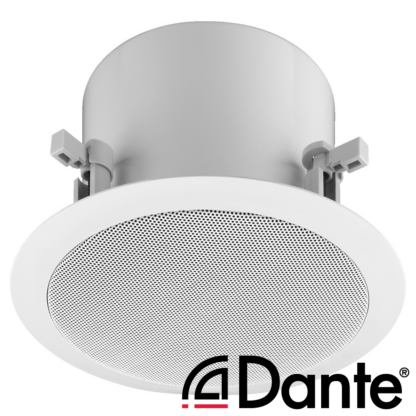

Monacor EDL-80DT 30w 8″ 2-way flush-mount active Dante® ceiling speaker
Active 2-way flush-mount ceiling speaker, with integrated Dante® module:
- 30 W amplifier
- 20 cm (8″) bass speaker with glass fibre cone, 2.5 cm (1″) dome tweeter
- Decoding: 16/24/32 bits
- Sampling rates: 44.1/48/88.2/96 kHz
- Power supply via PoE (Power over Ethernet)
- Plastic frame and protective metal grille

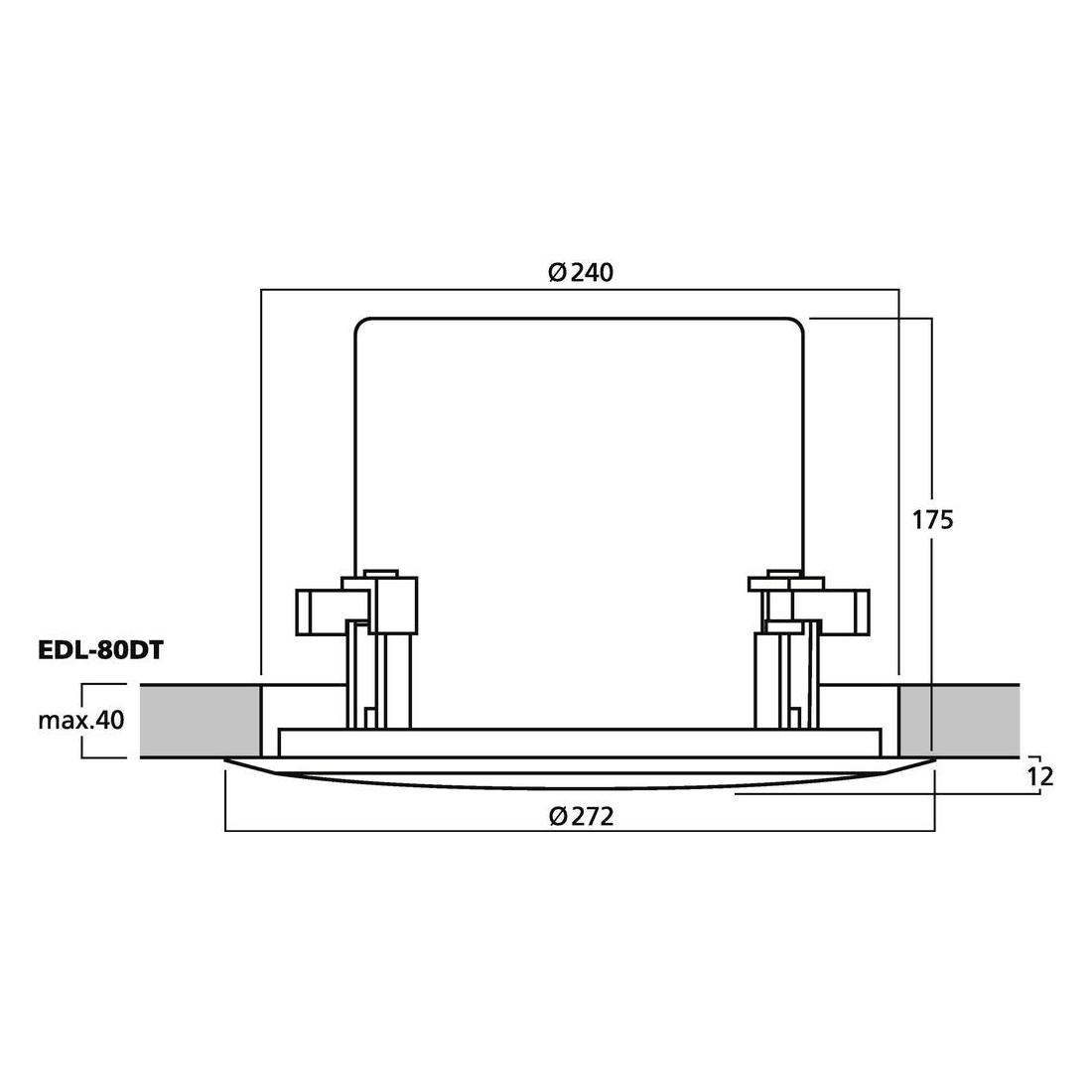

- For a ceiling thickness up to 4 cm
- Mounting cutout: Ø 240 mm
- Mounting depth: 225 mm incl. space requirement for network connection
- System requirements Dante®: Windows 7/8.1/10 or MacOS 10.9.5/10.10.5/10.11
- The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.
Technical specifications:
- Active/passive: active
- Transmission technology: Dante®
- Power rating (RMS): 30 W

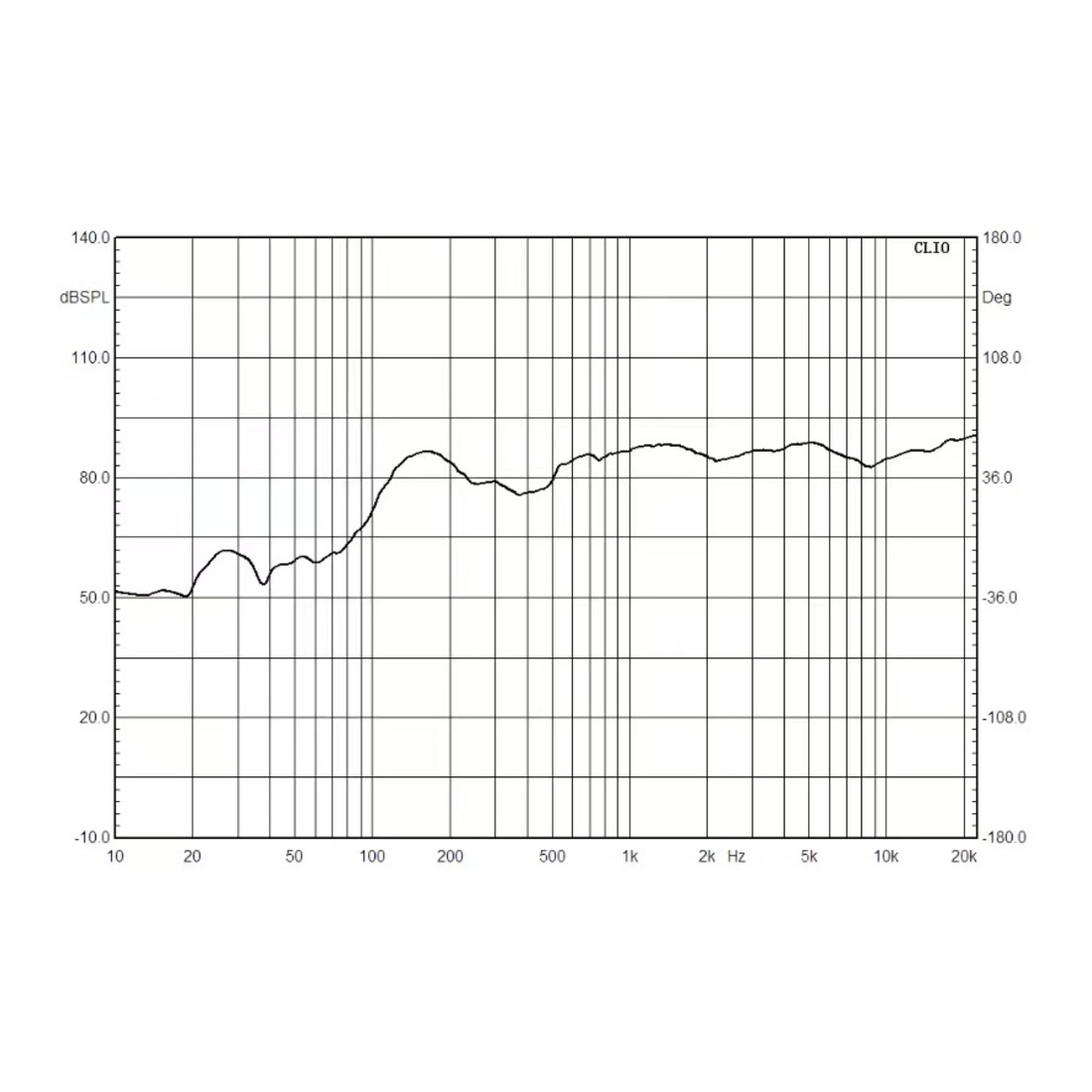

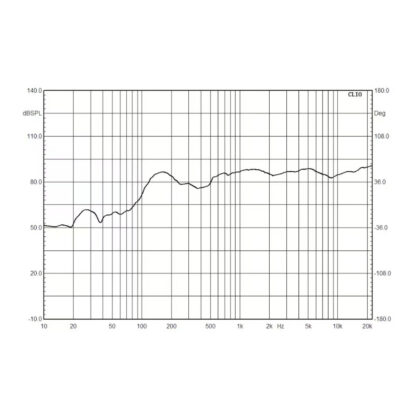

- Frequency range: 100-20,000 Hz
- Input signal: Dante®
- System: 2-way
- Bass speaker: 1 x 20 cm
- Tweeter: 1 x 2.5 cm
- Number of speakers: 2
- Speaker size: 20 cm (8″)
- SPL: 93 dB/W/m
- Max. rated SPL: 105 dB
- Beam angle: 100°
- Radiation angle, horizontal: 100°
- Radiation angle, vertical: 100°
- Housing material: plastic frame, protective metal grille
- Colour: white
- Mounting device: ceiling suspension
- Admissible ambient temperature: 0-40 °C
- Power supply: PoE via RJ45
- Dimensions: Ø 272 mm x 187 mm
- Width: Ø 272 mm
- Depth: 187 mm
- Weight: 2.7 kg
- Inputs: RJ45
- Sampling rates: 44.1/48/88.2/96 kHz
- Resolution: 16/24/32 bits
System requirements Dante®: Windows* 7/8.1/10 or MacOS 10.9.5/10.10.5/10.11
Click here for Audinate Dante® online training and certification
Please note:
32-bit applications, including the current version of the DSP controller, are no longer supported under the MacOS version 10.15 (Catalina). The controller software is currently being updated for 64-bit MacOS Catalina. Users of older MacOS versions as well as Windows users are not affected by this change.
Apple’s announcement will give you further information on the change to 64-bit technology
Apple’s announcement will give you further information on the change to 64-bit technology
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
