Adastra LP8V Ceiling Speaker

SKU: 952.262

£63.45 + VAT    £76.14 incl. VAT

White 8″ 50w 100v line or 8Ω two-way low profile music ceiling speaker

In stock

100V Line
Low Impedance 8 Ohms

PDF

Description

Adastra LP8V 50w 8″ 2-way low profile 100v line or 8Ω ceiling speaker

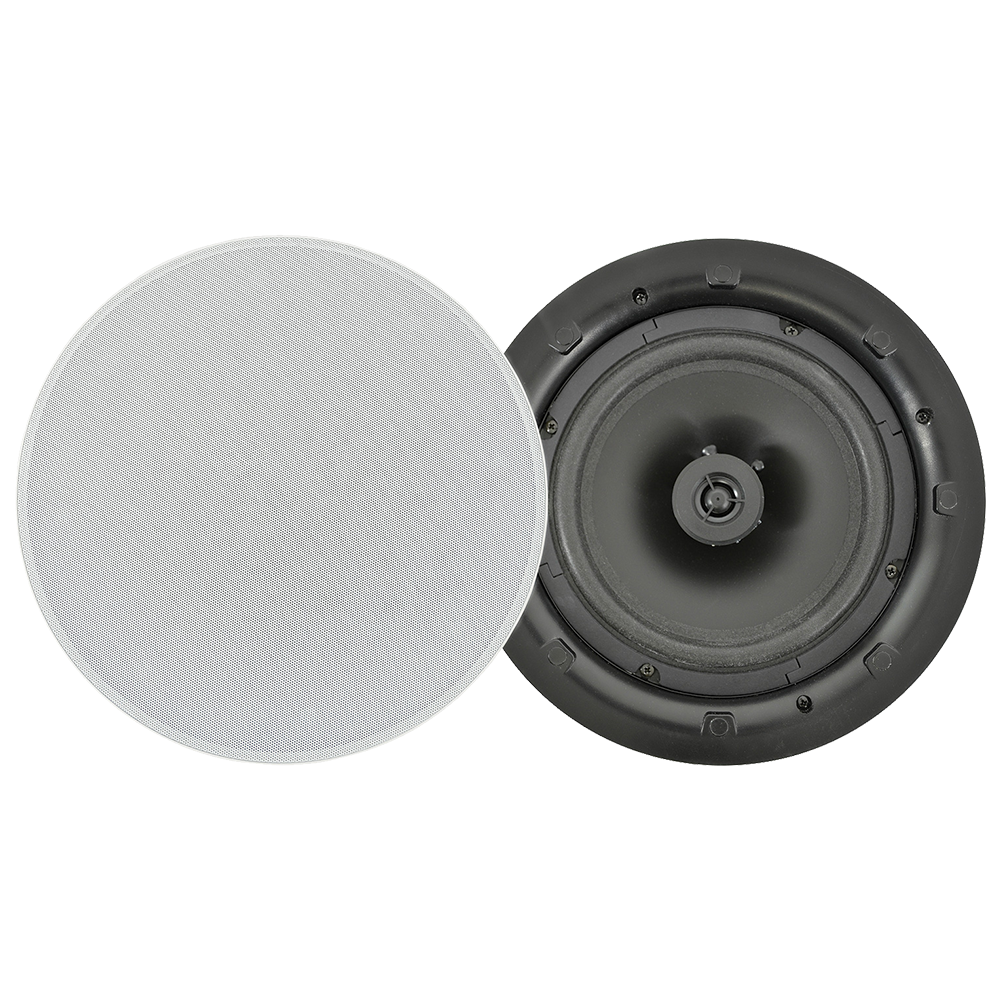

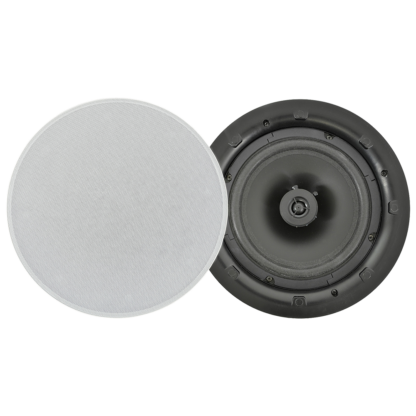

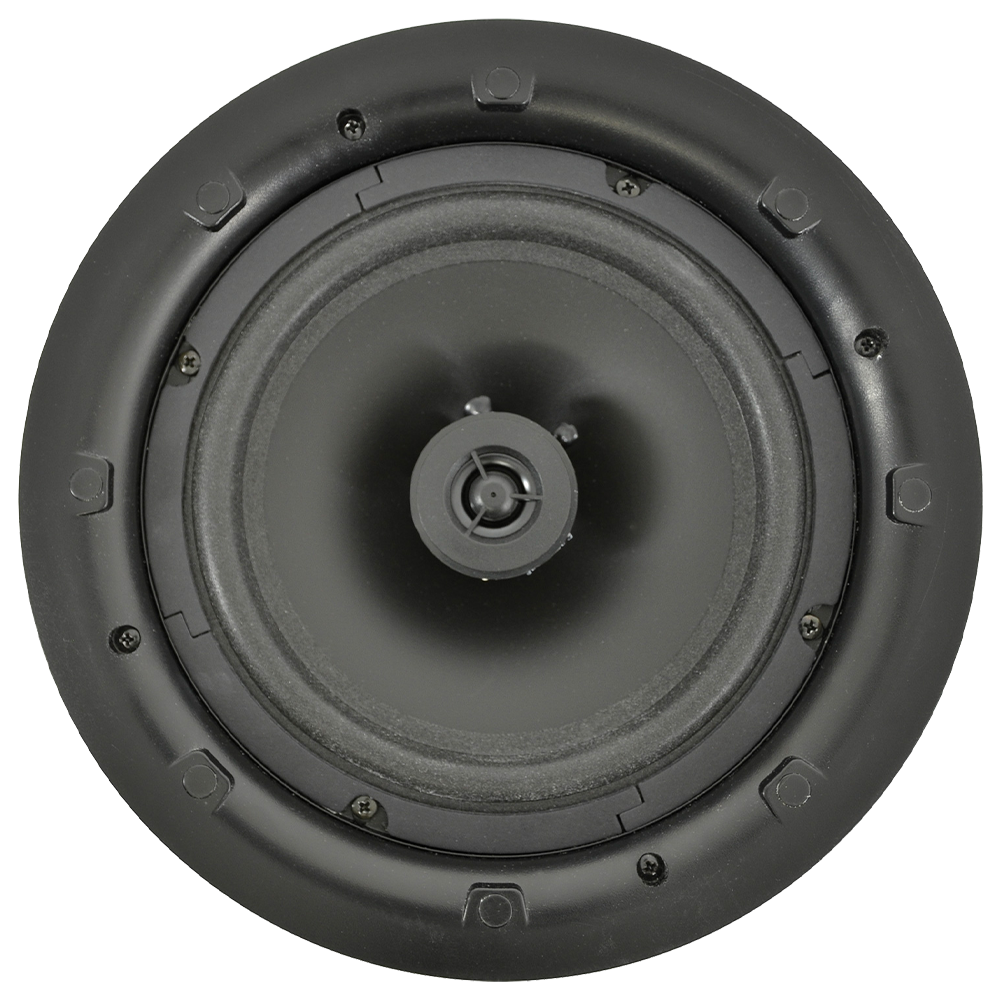

2-way ceiling speaker with flared baffle and a low profile magnetic grille. The main driver with concentric directional tweeter is operated via a rotary control with 5 x 100V volume tappings and an 8 Ohms option. Mount into suspended or false ceilings using the 4 “dog-ear” mounts to achieve a discreet, high quality sound installation.

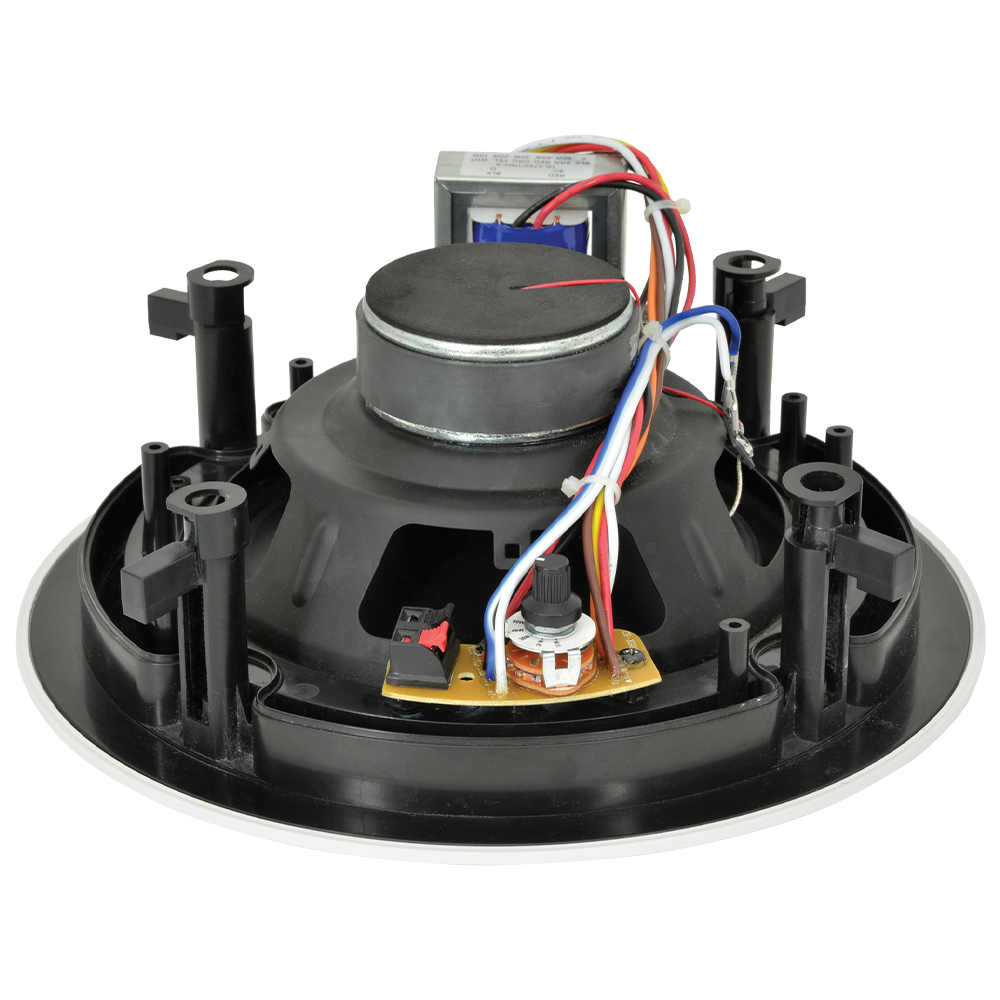

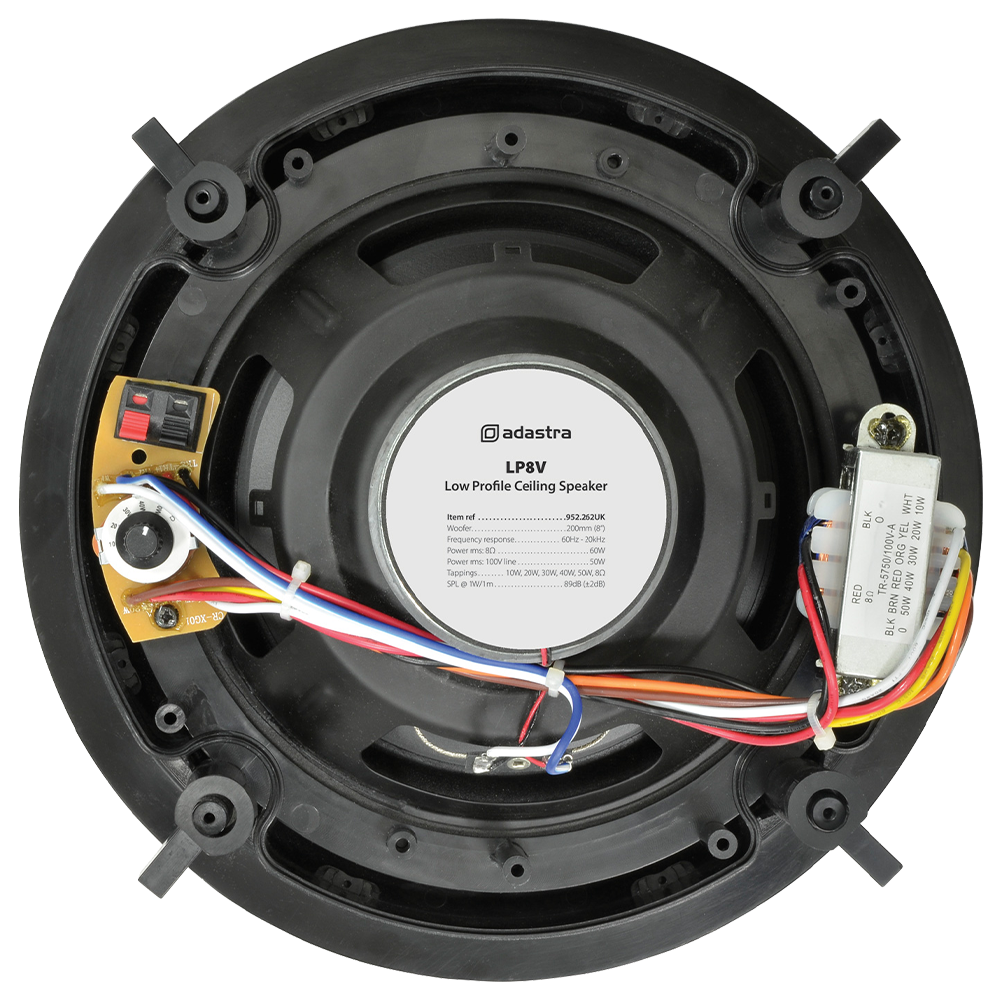

  • Rotary selector switch for 100V line tappings or 8 Ohms

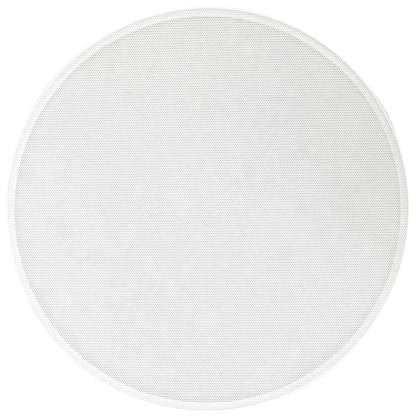

  • Magnetic frameless grille
  • Fitted with “dog-ear” mounts for fixing to suspended or false ceilings
  • Discreet, low profile installation
  • Grille can be painted to match decor
  • Supplied singly

Specifications:

  • Woofer: 200mmØ (8″)
  • Tweeter: 44mmØ (1.75″)
  • Frequency response: 60Hz – 20kHz
  • Power max. : 8 Ohms: 120W
  • Power rms : 8 Ohms: 60W
  • Power rms : 100V line: 50W
  • Cutout: 245mm
  • Mounting depth: 104mm
  • SPL @ 1W/1m: 89dB (±2dB)
  • Tappings: 10, 20, 30, 40, 50W & 8 Ohms
  • Dimensions: 108 x 281mmØ
  • Weight: 1.98kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight1.98 kg
Dimensions28.1 × 28.1 × 10.8 cm
Wattage (RMS)

50W

Speaker Size

8″

Connection

Spring Terminals

Colour

White

Condition

New

Brand

Adastra

Adastra was founded in 1949 and has earned a reputation for high quality public address sound products. Meeting the needs of the commercial PA sector for over 60 years the Adastra name is known for quality and value. Adastra is the choice for 100v line PA sound, zone paging PA and induction loop equipment. The Adastra range includes mixer & slave amplifiers, ceiling, cabinet & horn loudspeakers, desk paging & handheld microphones, equipment racks, cables, stands and accessories. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

Recommended Products

Sound Services customers come back time and time again for these recommended products - some are great value for money, others have proven track records for build quality and reliability and some are just our own personal favourites. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

User Manuals

User Manual

Installation Wiring Guide

What's in the Box?

  • Ceiling speaker with detachable grille
