Description

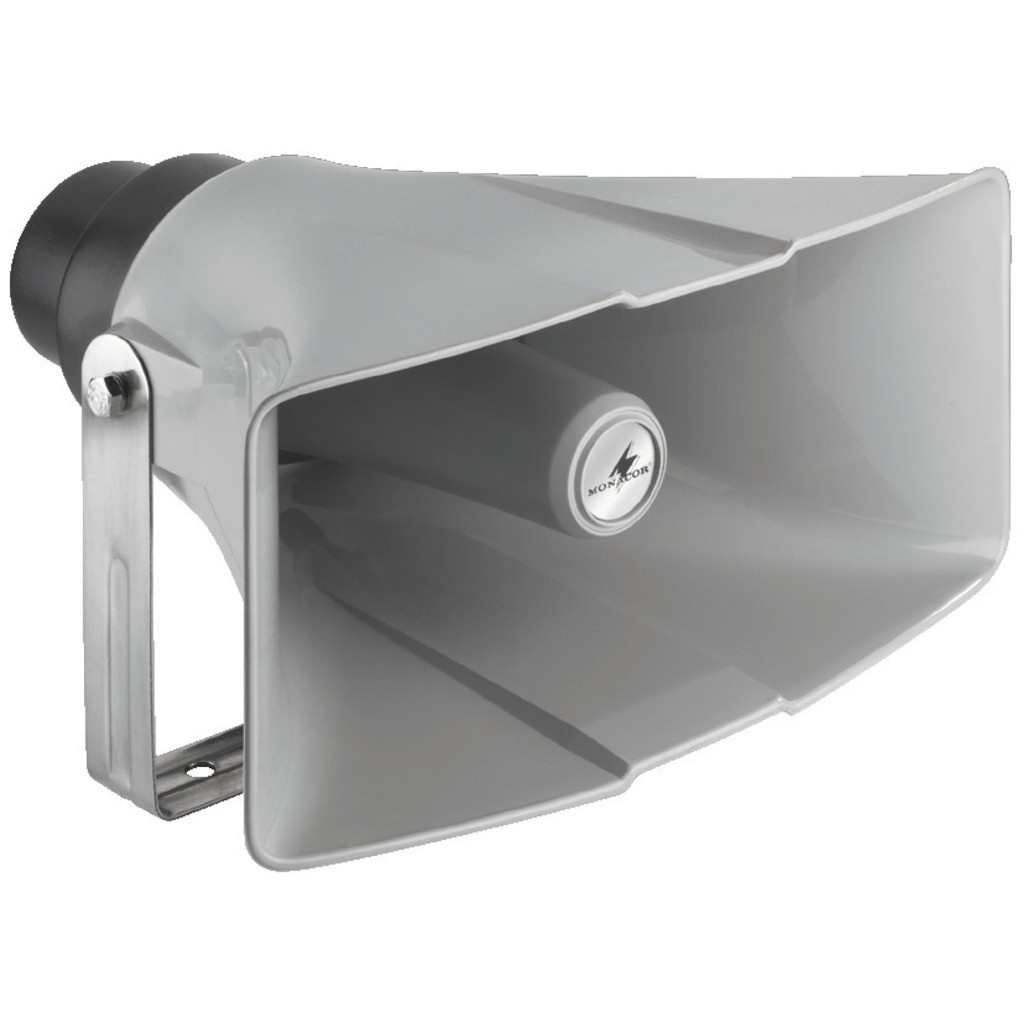

Monacor IT-40 40w 100v line horn speaker
IT-40: 40w RMS @ 100v are supplied singly

High quality rectangular horn loudspeakers are suitable for 100v line sound systems only
Spare voice coil diaphragms available
- 100V line operation
 - Weatherproof and IP66 tested
 - Protected against powerful water jets
 - Suitable for general large factory and outdoor applications
 - Robust plastic housing
 - Stainless steel mounting bracket
 - 4-step power selector switch
 - Power rating: 40/30/20/10/5 W
 - Frequency range: 180-7,000 Hz
 - Sensitivity: 113 dB/W/m
 - Radiation angle, horizontal: 100°
 - Radiation angle, vertical: 45°
 - Material (housing/cabinet): plastic
 - Protective class: IP66
 - Weather resistance: yes
 - Mounting facility: stainless steel mounting bracket
 - Features: power selector switch
 - Replacement voice coil: IT-40/VC
 - Admissible ambient temperature: -20 °C to +50 °C
 - Dimensions: 400 x 200 x 420 mm
 - Weight: 3.9kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
