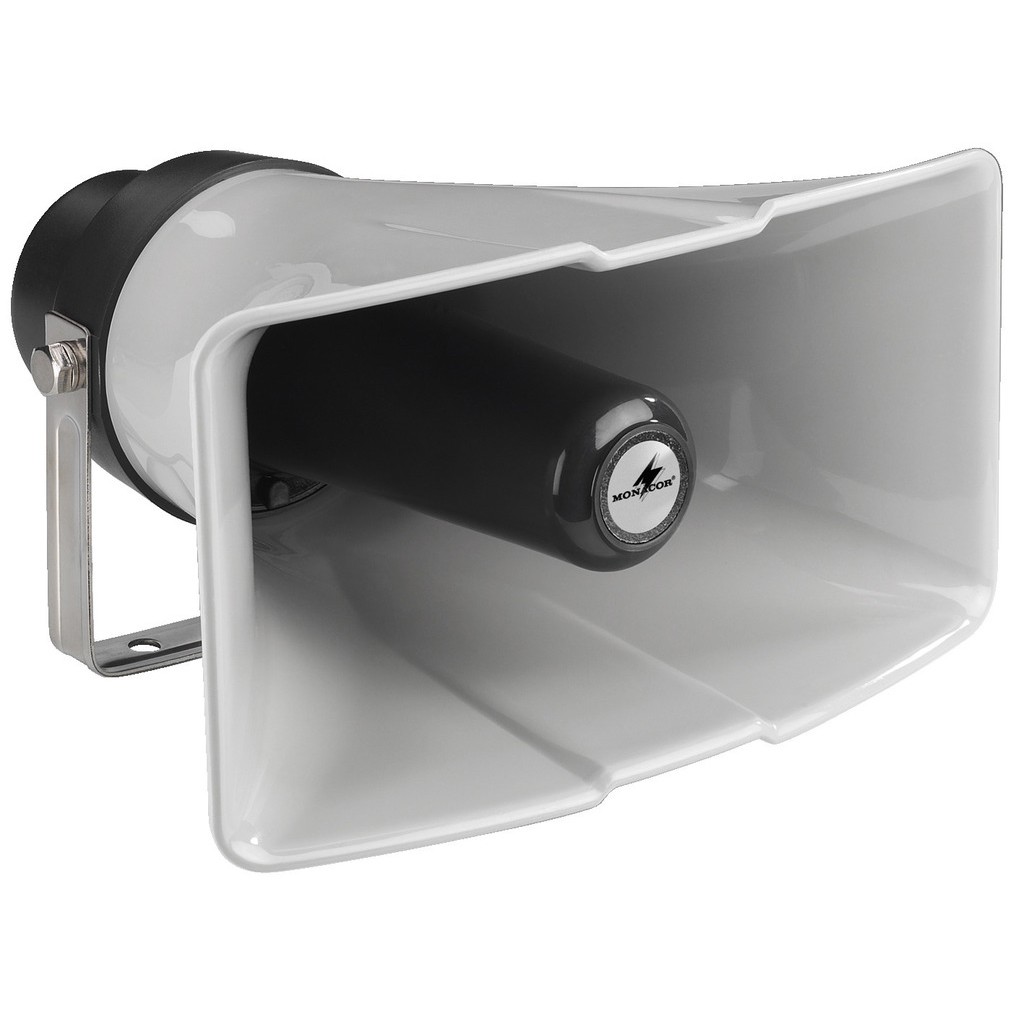

Monacor IT-35 horn speaker

£43.60 £52.32 incl. VAT

25w 100v line horn speaker

PDF

Description

Monacor IT-35 25w 100v line horn speaker

Supplied singularly these horn speakers are available as:
IT-20: 15w RMS @ 100v
IT-35: 25w RMS
@ 100v
IT-40: 40w RMS @ 100v

High quality rectangular horn loudspeakers are suitable for 100v line sound systems only

Spare voice coil diaphragms available

  • 100V line operation
  • Weatherproof and IP66 tested
  • Protected against powerful water jets
  • Suitable for general large factory and outdoor applications
  • Robust plastic housing
  • Stainless steel mounting bracket
  • 4-step power selector switch
  • Power rating: 25/20/15/10/5 W
  • Frequency range: 250-10,000 Hz
  • Sensitivity: 108 dB/W/m
  • Radiation angle, horizontal: 110°
  • Radiation angle, vertical: 52°
  • Material (housing/cabinet): plastic
  • Protective class: IP66
  • Weather resistance: yes
  • Mounting facility: stainless steel mounting bracket
  • Features: power selector switch
  • Replacement voice coil: IT-230/VC
  • Admiss. ambient temp.: -20 °C to +50 °C
  • Dimensions: 300 x 180 x 315 mm
  • Weight: 2.5 kg



Brand

Monacor

monacor

Additional information

Weight2.5 kg
Dimensions30 × 31.5 × 18 cm
