Adastra HD20V Horn Speaker

Description

Adasta HD20V 20w heavy duty waterproof horn speaker

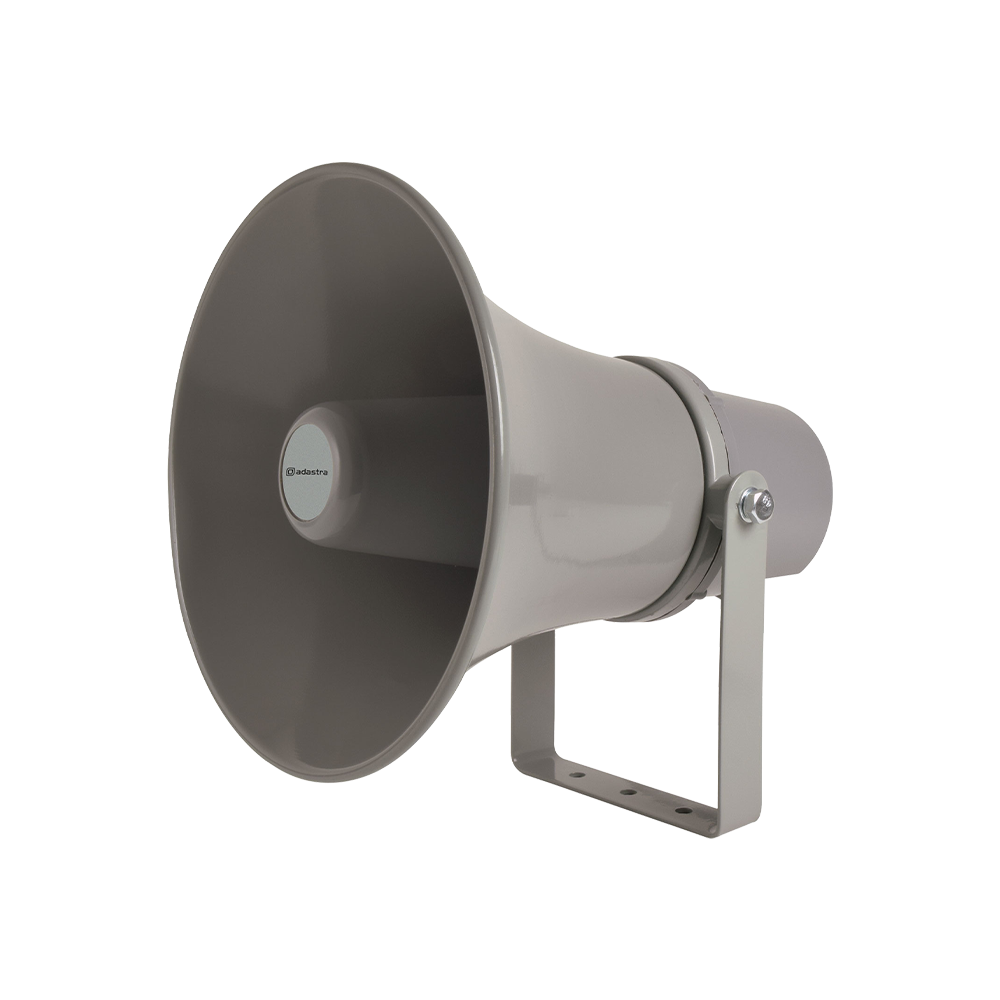

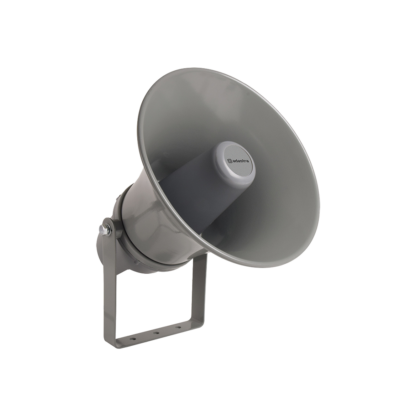

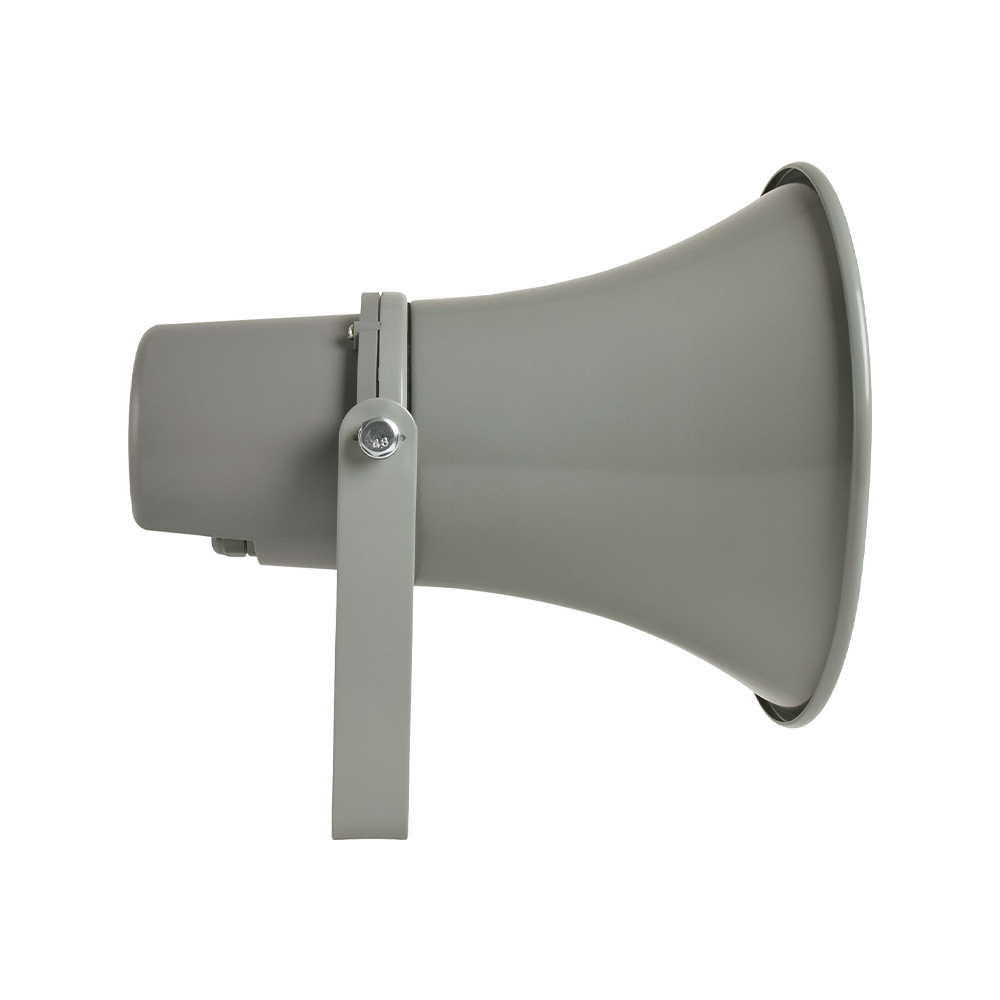

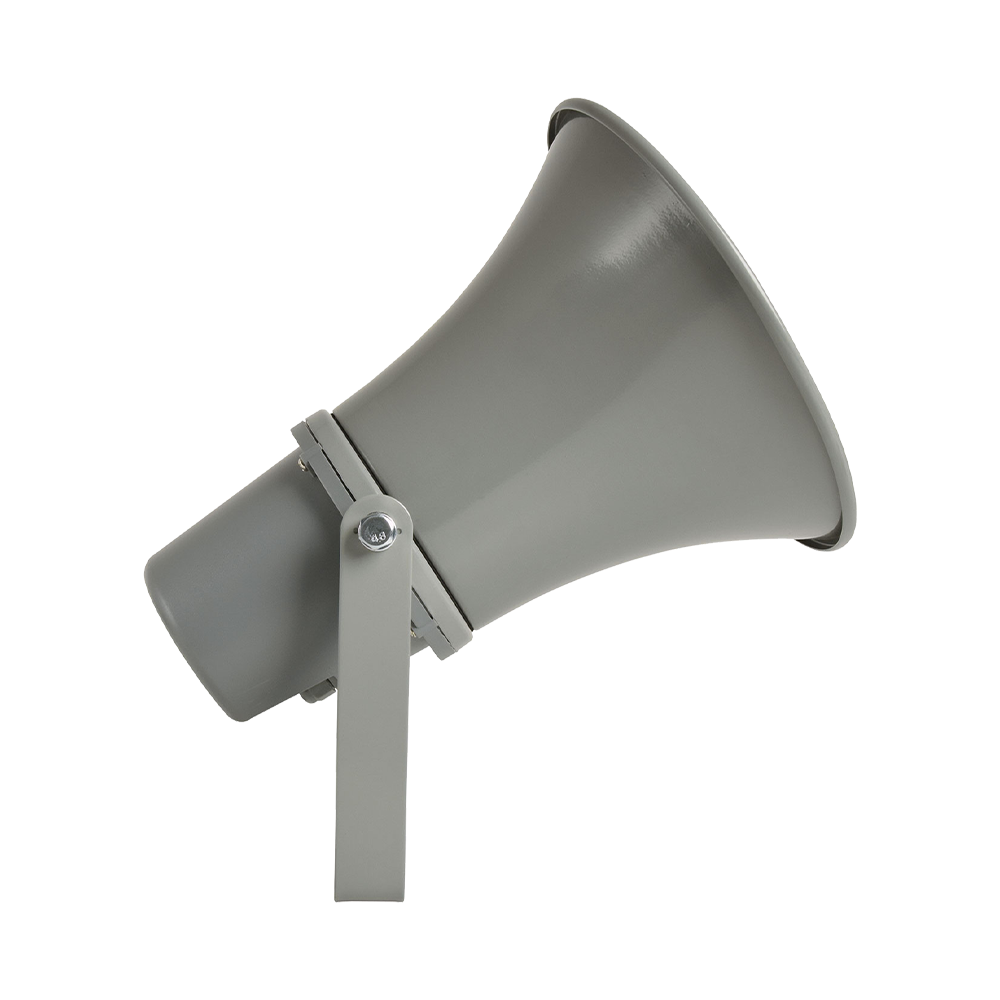

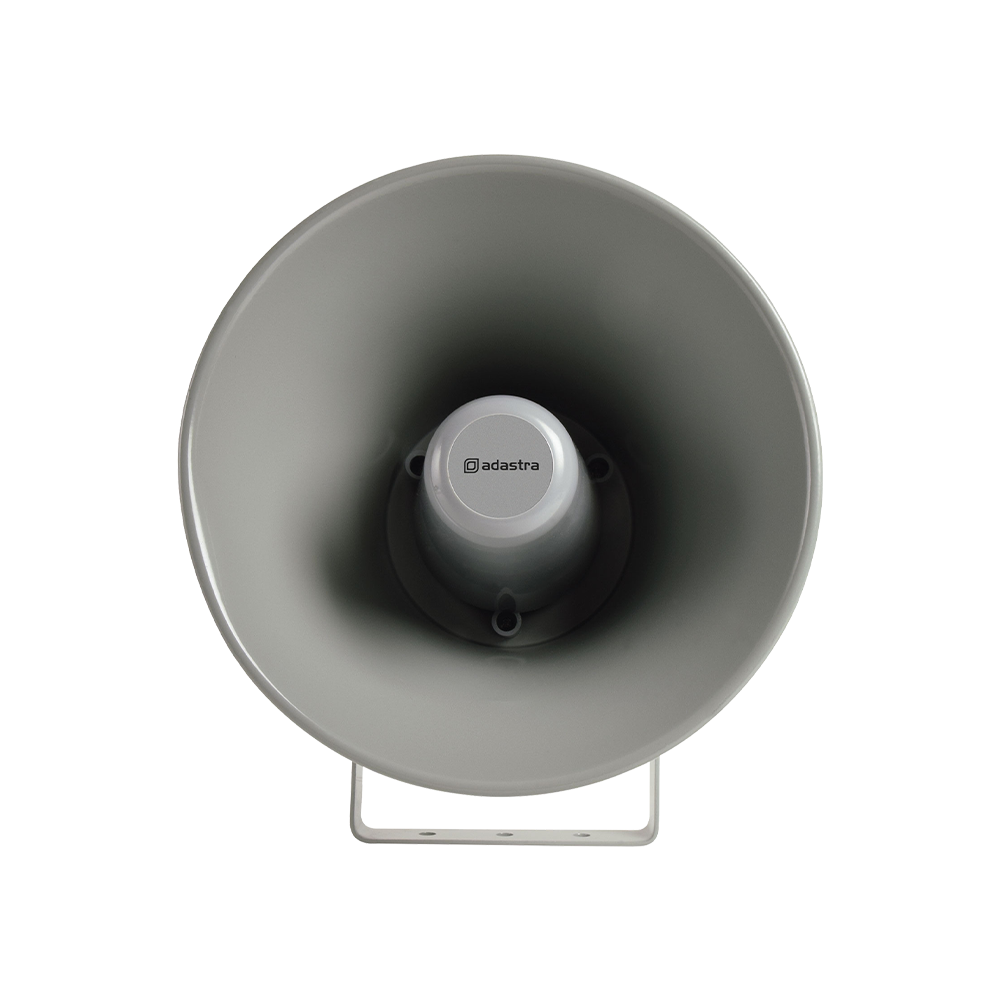

Heavy duty round horn speakers for voice alerts and public address in outdoor or indoor areas. Constructed from a spun aluminium flare with a weatherproof ABS rear cover and reflex cone. The fibreglass compression driver is connected to a 100V transformer with a 4-core cable offering 3 different power tappings. Tested to withstand the harshest elemental conditions and suitable for industrial installations, these horns offer reliable and consistent performance in almost any environment.

• IP66 waterproof
• 20w – 100v line – 9.5″ horn speaker
• Tilt-adjustable wall bracket
• Tested to extreme temperatures (-55°C to +70°C)
• Construction: Aluminium flare, ABS reflex & rear cover
• Driver: Fibreglass diaphragm compression driver
• IP rating: IP66
• Impedance (nominal): 8 Ohms (transformer bypassed)
• Operating temperature range: -55°C to +70°C
• Frequency response: 400Hz – 5kHz
• Colour: Grey (RAL7042)

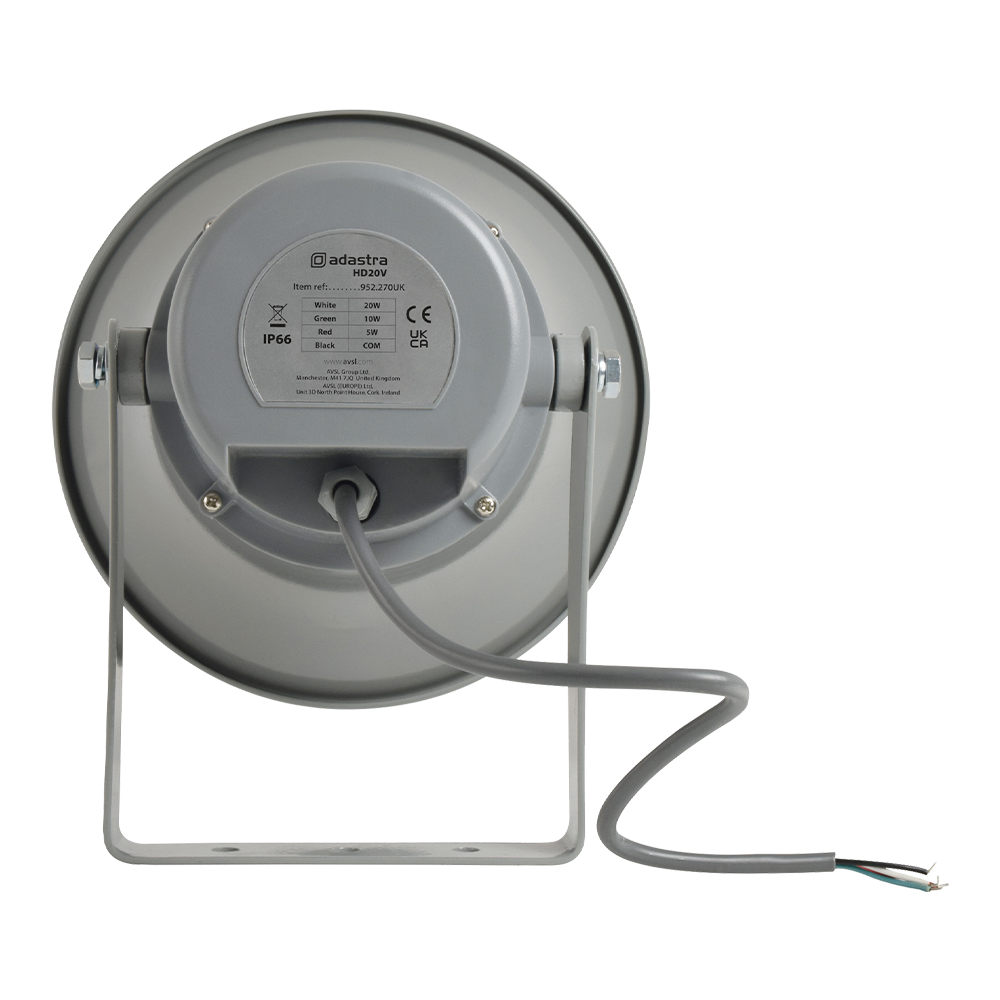

• Tappings: 5W (red), 10W (green), 20W (white), COM (black)
• SPL @ 1W/1m: 102dB
• Dimensions: 280 x 240mmØ
• Weight: 1.993kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
