Monacor ESP-315/WS Wall Cabinet Speaker

Description

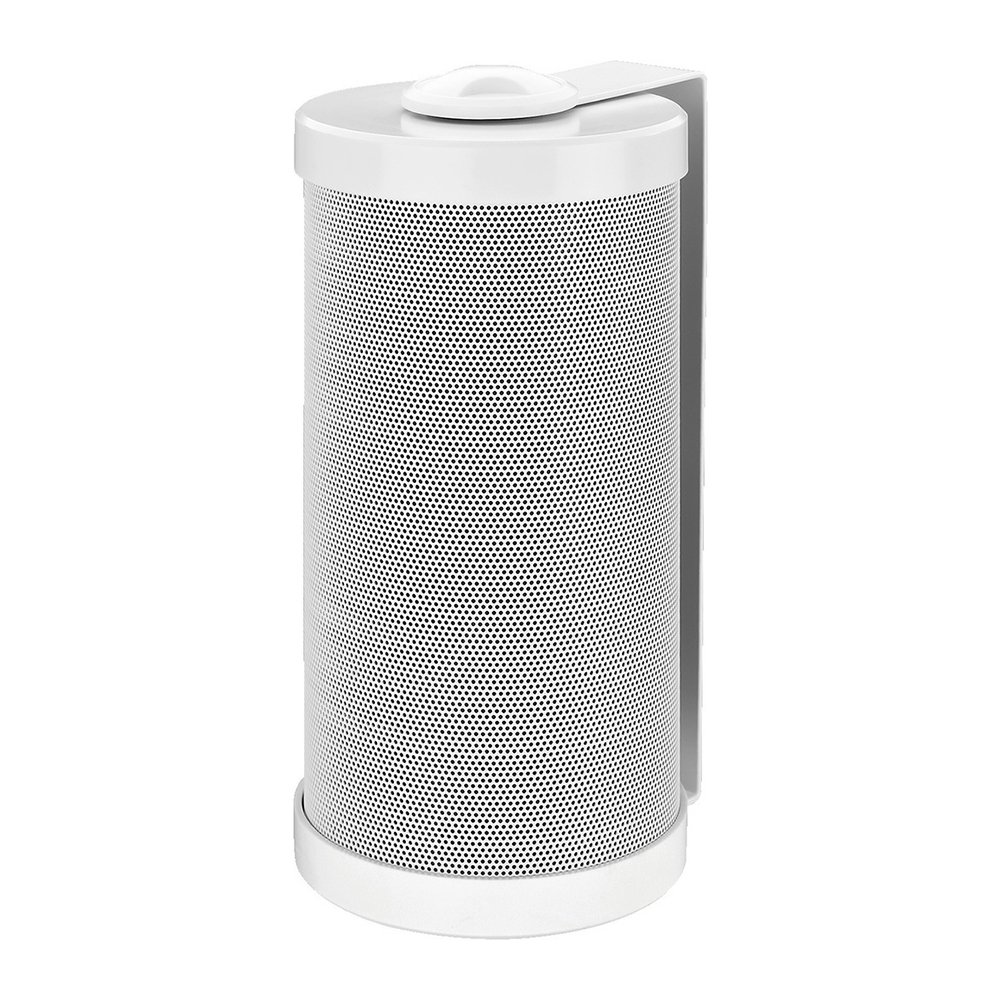

Monacor ESP-315/WS 15w 100v line or 8Ω wall cabinet speaker

• 2-way PA wall-mount speaker system
• 100 V PA speaker system with an excellent sound
• 2-way system with 10 x 15 cm bass-midrange speaker and 13 mm dome tweeter
• Power taps: 15/10/5/2.5 W
• Power selector switch with 8 Ω operating position
• Can be mounted horizontally or vertically
• Direction of sound radiation can individually be aligned
• Available in black (SW) or white (WS) plastic with respectively lacquered metal grille
• Supplied with wall brackets

Technical specifications:

• Active/passive: passive
• Transmission technology: 100 V
• Total power rating: 30 W
• Power rating (RMS): 15/10/5/2.5 W (100 V) 15 W (8 Ω)
• Impedance: 8 Ω
• Frequency range: 75-20,000 Hz
• System: 2-way
• Number of speakers: 2
• SPL: 90 dB/W/m
• Housing material: plastic
• Colour: white
• Admissible ambient temperature: 0-40 °C
• Dimensions: Ø 133 mm x 280 mm
• Width: Ø 133 mm
• Height: Ø 280 mm
• Weight: 2.1 kg
• Inputs: spring-loaded speaker terminals
• Packing dimensions: (W x H x L) 0.15 x 0.15 x 0.305 m
• Gross weight: 2.38 kg
• Net weight: 2.2 kg

All used and ex-display items are tried and tested before leaving our warehouse, but will have usage marks and some signs of wear – used, ex-display and clearance items include a 90 day return-to-base warranty.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
