Monacor EDL-224ABC Ceiling Speaker

Description

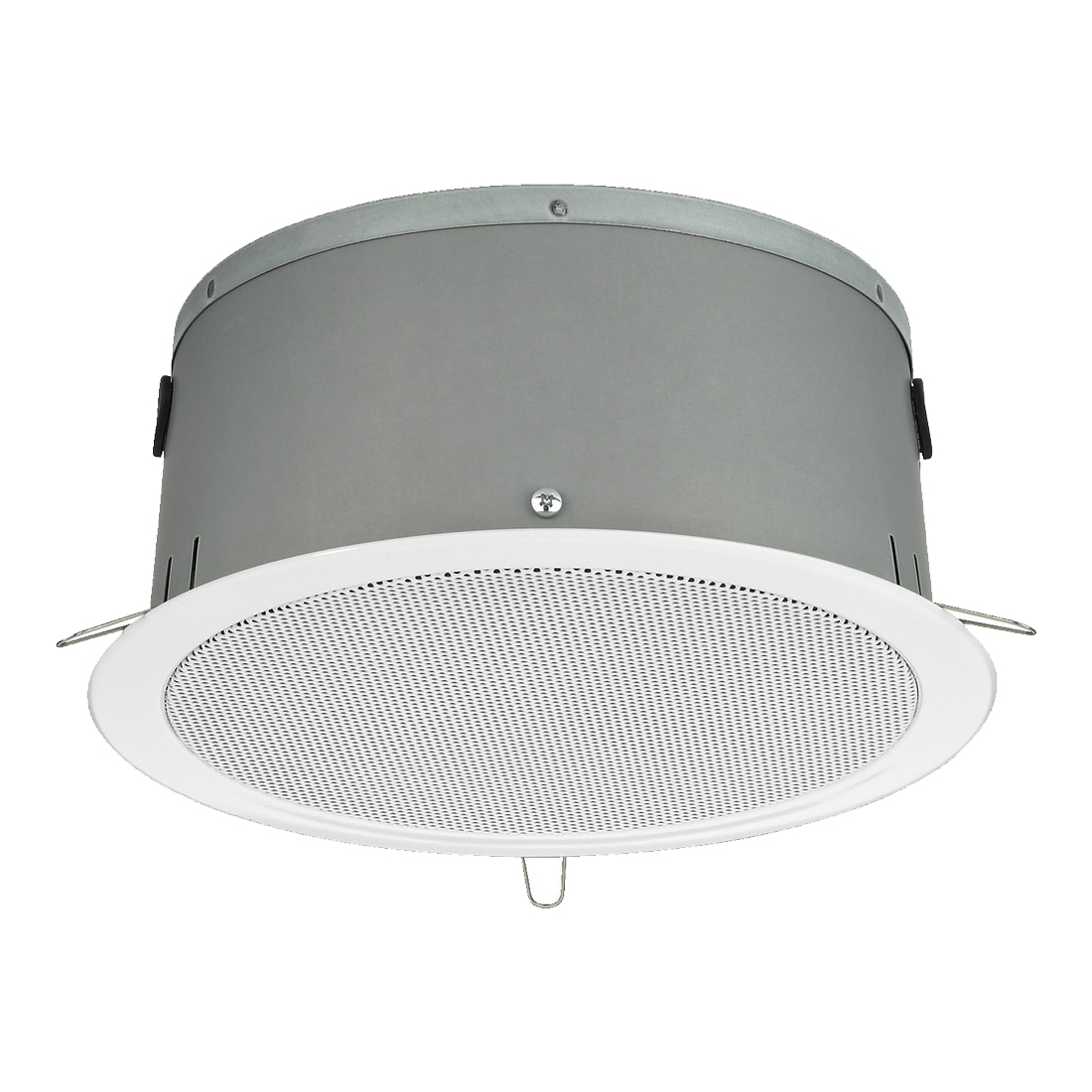

Monacor EDL-224ABC 2 x 6w 100v line EN 54-24 certified A/B ceiling speaker

For systems with A/B speaker distribution. Cost-effective reduction of the required ceiling cutouts.

• 100 V transmission technology

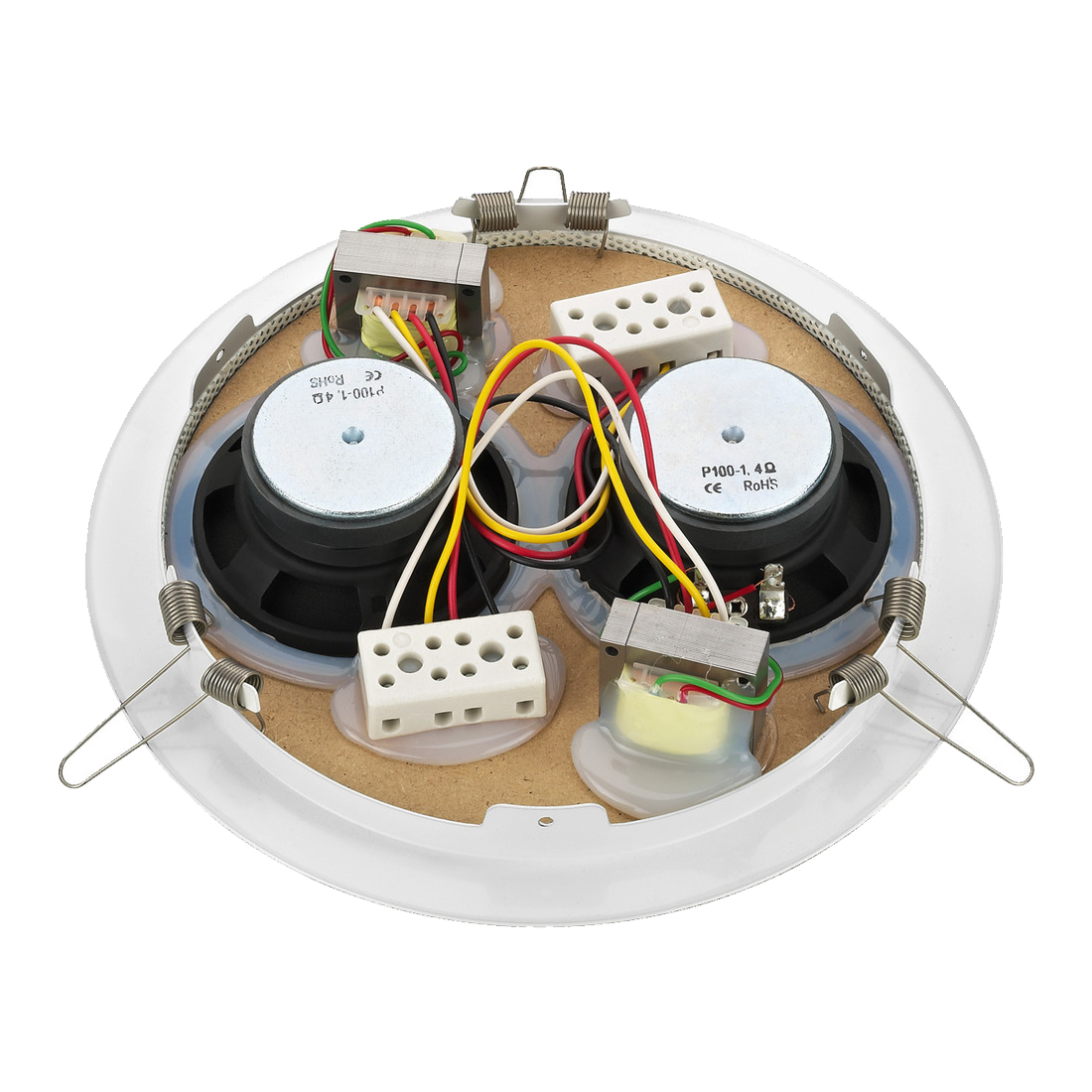

• 2 separate speaker systems
• Full range speaker with a very high efficiency and high maximum volume level
• Metal housing
• Fire protection cover
• Quick mounting facility
• 3 power taps via push terminals
• Ball-proof according to DIN 18032, Part 3
• Transmission technology: 100 V
• Frequency range: 75-20,000 Hz
• Power rating (RMS): 2 x 6/2 x 3/2 x 1.5 W
• SPL: 92 dB/W/m
• Mounting cutout: Ø 230 mm
• Mounting depth: 110 mm
• Dimensions: Ø 252 mm x 115 mm
• Outside diameter: Ø 252 mm
• Width: Ø 252 mm
• Depth: 115 mm
• Colour: white
• Admissible ambient temperature: 0-40 °C
• Weight: 1.84 kg

All used and ex-display items are tried and tested before leaving our warehouse, but will have usage marks and some signs of wear – used, ex-display and clearance items include a 90 day return-to-base warranty.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
