Indoor

COMM-300-12 hall sound system

£625.00 £750.00 incl. VAT

Community hall sound system with two 12 inch speakers, amp, mic etc.

bluetooth
radio
usb
stereo

PDF

Description

COMM-300-12 is a 300w high power public address sound and music system for village and school halls and smaller community centres and is supplied ready for you to install

5  input mixer with MP3 media player, 2 x 150w digital amplifier and rack sleeve is supplied with two 12″ high quality polycarbonate loudspeakers, a cabled microphone and all cables, wall brackets etc.

This  system is ready for you to connect your own CD & MP3 players, wireless microphones etc.

Mixer and media player

  • Built-in Bluetooth receiver
  • Media player with USB playback and FM tuner
  • Switchable +20V phantom power
  • Variable priority muting for channel 1
  • 24V emergency mute contacts
  • Power supply: 100-240Vac, 50/60Hz
  • Fuse: T1AL
  • Inputs : mic/line: 3 x XLR (bal/unbal)
  • Inputs : aux: 2 x L+R RCA
  • Input : line: 3.5mm jack to media player
  • Audio source: Internal Bluetooth, USB & FM player
  • Outputs: L+R XLR, Mono 6.3mm jack, Record out (RCA)
  • Emergency control: 24V contacts mute all except channel 1
  • Phantom power: +20V (switchable channels 1-3)
  • Controls: Media, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level
  • Rear panel controls: Priority muting level, mic/line and phantom DIP switches
  • Input impedance: 2.2k Ohms (mic/line), 10k Ohms (aux)
  • Frequency response : mic: 20Hz – 18kHz
  • Frequency response : line: 14Hz – 20kHz
  • Frequency response : aux: 10Hz – 23kHz
  • Input sensitivity: -45dBV
  • Input sensitivity : aux/line: -10dBV
  • Signal to noise ratio : mic: 55dB
  • Signal to noise ratio : aux/line: 60dB
  • THD: 0.05%
  • Dimensions: 482 x 130 x 44 mm
  • Weight: 1.43 kg

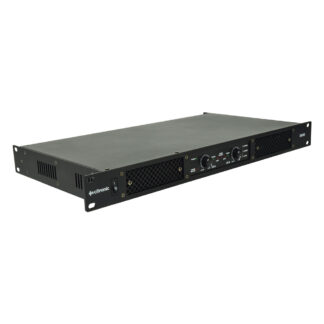

Amplifier

  • Class D concept
  • 2 operating modes can be selected (stereo or bridged)
  • Limiter function can be switched on additionally
  • 2 level controls
  • Temperature-controlled fan
  • Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
  • Each channel with LEDs for indicating overload (clip) and signal
  • Channels: 2
  • Power rating: 300w
  • Power rating at 4 Ω: 2 x 150w
  • Power rating at 8 Ω: 2 x 100w
  • Power rating with 8 Ω bridged operation: 1 x 300w
  • Peak music power output (PMAX): 350w
  • Inputs: 1 V/12 kΩ
  • Frequency range: 20-20,000 Hz
  • Integrated limiter: yes
  • S/N ratio: > 96 dB
  • Crosstalk attenuation: > 70 dB
  • THD: < 0.05%
  • Power supply: ˜ 230 V/50 Hz/510 VA
  • Mains voltage: ˜ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation: 510 VA
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 482 x 52 x 290 mm, 1 RS
  • Width: 482 mm
  • Height: 52 mm
  • Depth: 290 mm
  • Rack spaces, RS: 1
  • Weight: 3.7 kg
  • Connections: 1 x 3-pole XLR L/R, 1 x 6.3 mm jack L/R, 1 x Speaker L/R

Rack Sleeve for mixer and amplifier

  • 2u rack height
  • 15mm MDF construction
  • Wooden mounting blocks
  • Black carpet covering
  • Black plastic corner guards
  • Carry handle
  • Rubber feet
  • Internal Depth 2u: 425mm (mounting depth), 35mm (front recess)
  • Internal width 2u: 19″/482mm (mounting), 437mm (between mounts)
  • Weight: 7.905kg

Speakers

  • Compact full range system with a high-quality plastic cabinet
  • Supplied with 2 x 12 inch speakers
  • Bass speaker and 25mm horn tweeter
  • Bass-reflex system
  • 2 x speaker connectors, IN OUT
  • 2 x Wall brackets included
  • 2 x 25m Speakon to jack leads included

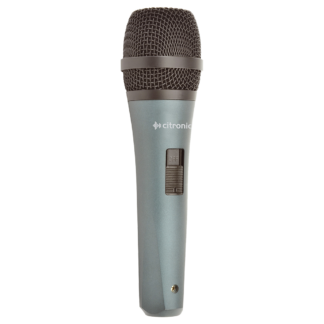

Microphone

  • Frequency Response: 60Hz to 15KHz
  • Sensitivity: -54dB
  • Size: 183mm x 50mm max diameter
  • Weight: 260g
  • 10m XLR lead

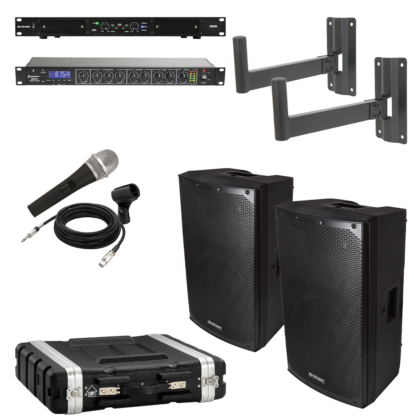

System Includes

  • Rack sleeve
  • Mixer
  • Amplifier
  • Amplifier wall bracket
  • 2 x 12″ high power speakers
  • 2 x speaker wall brackets
  • Handheld microphone and XLR cable
  • Input connector lead for iPods etc.
  • 2 x Speakon to Speakon speaker leads
  • Installation guides
  • User Manuals

Constant development means that illustrations are only representative and items supplied may be newer or improved models
