Description

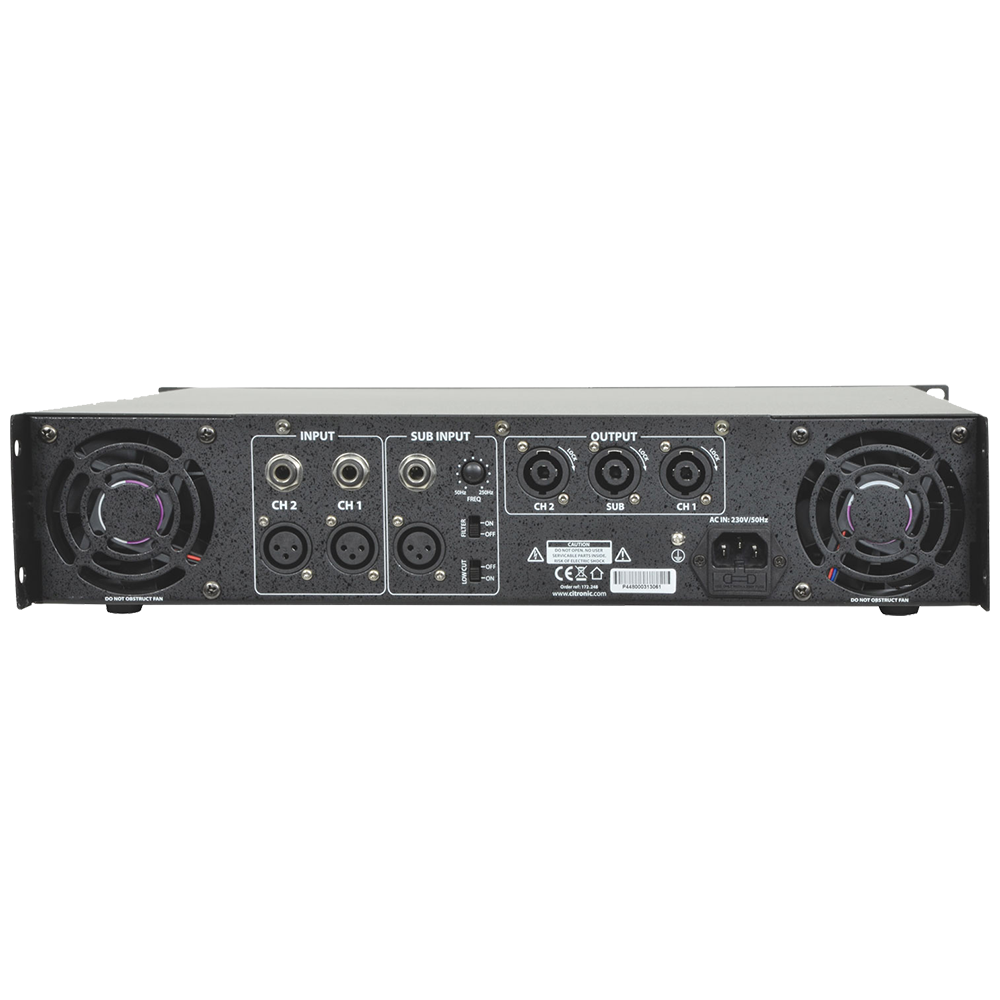

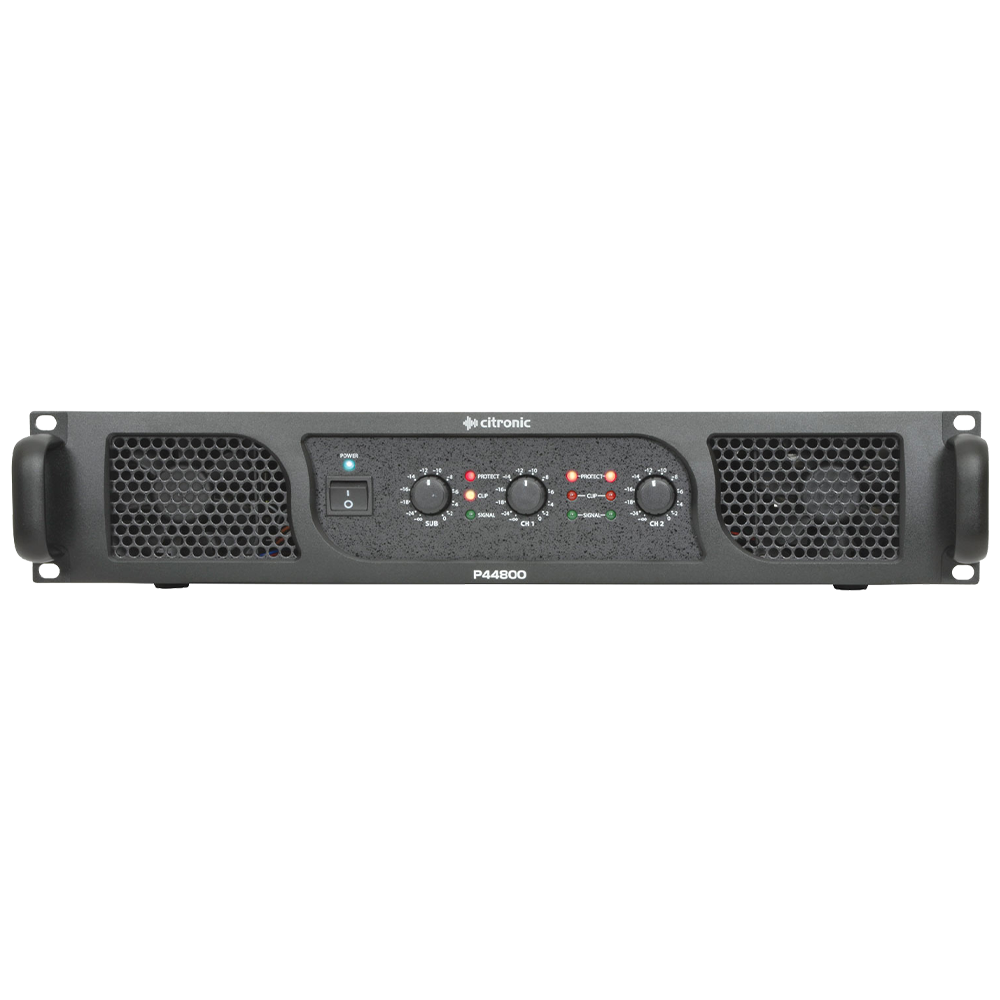

Citronic P44800 2.1 2 x 250W + 500W stereo power amplifier
2.1 power amplifiers with 2 channels for mid-top cabinets and a single high power sub output with integral active crossover. Designed as a cost effective and efficient solution for bi-amplified sound systems where subs and top cabinets are run together from this single amplifier.
- Stereo full range output
- Mono summed sub output (can be full range)
- Active crossover with variable frequency
- Weight: 21kg
- Power (RMS):
- 4 Ohms: 400 + 400 + 800W (sub)
- 8 Ohms 250 + 250 + 500W (sub)
- Fuse rating: F12A
- Power supply: 240Vac, 50Hz (IEC)
- Input impedance: 40k ohms (balanced) / 20k ohms Unbalanced
- Controls: 3 x channel level + crossover frequency
- Connections: 3 x XLRF, 3 x jack, 3 x SPK
- Cut-off frequency: 50 – 250Hz (12dB/oct)
- Damping factor: >250 (20-400Hz @ 8 Ohms)
- Slew rate: 6.5V/us
- Frequency response: 10Hz – 50kHz (-2dB)
- THD: +N 0.04%
- SNR: 86dB
- Low-cut filter: 30Hz fixed (12dB/oct)
- Dimensions: 483 x 439 x 88mm
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
