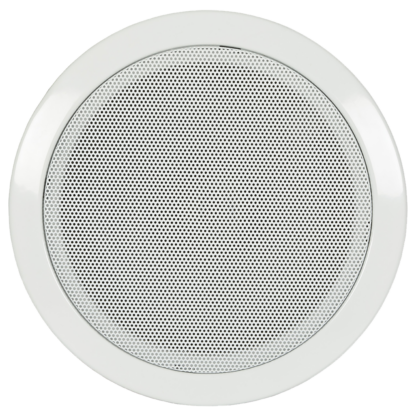

Adastra CF-5D 6w 100v line EN54-24 certified ceiling speaker with fire retardant dome
100v line ceiling speakers with a rear fire dome housing to provide an effective barrier against fire. The dome can be removed from the speaker unit for convenient installation into a ceiling cavity with spring loaded wire fitting for the speaker unit to pull into the dome for a neat flush fit. Screw terminals on the speaker unit offer 4 volume tappings at 100v. Certified to EN54 standard for compliance with fire detection and alarm systems requirements
- EN54-24 certified

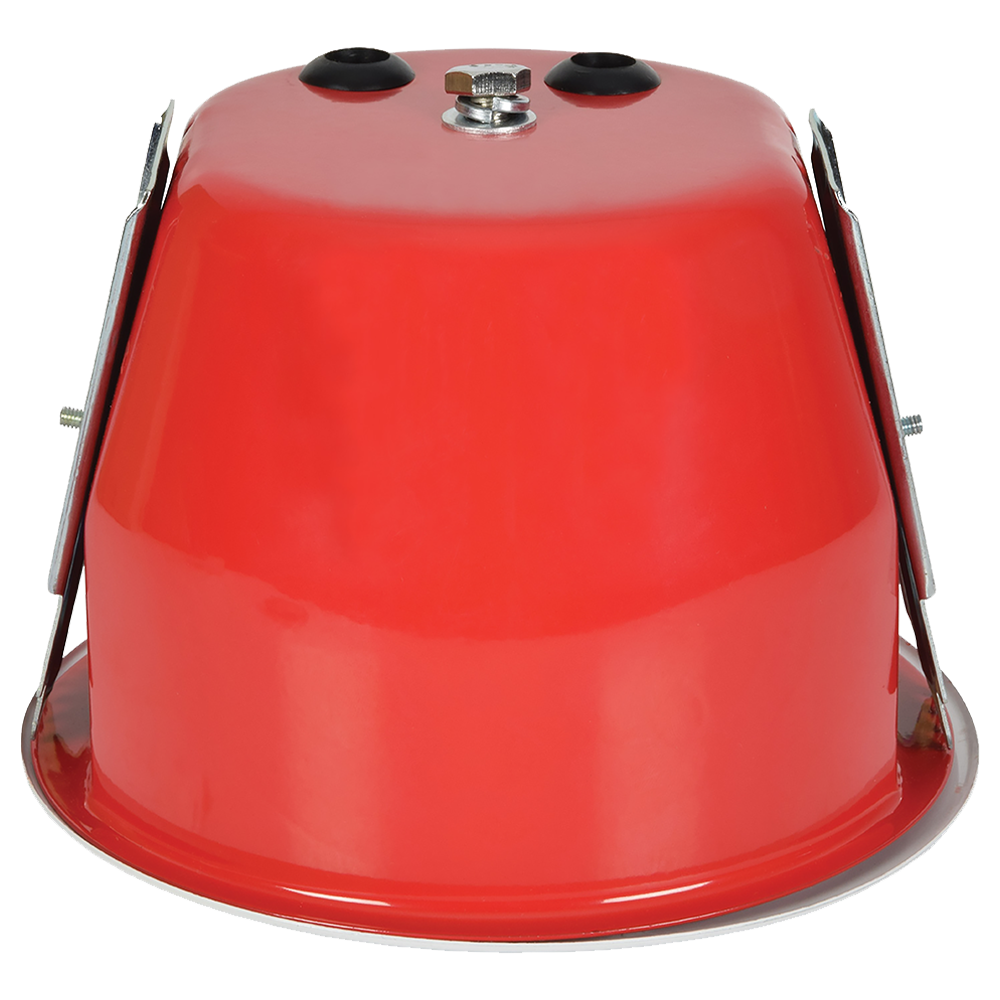

- Supplied with flush mount fire dome
- 4 x 100v volume tappings
- Spring loaded speaker retainers
- All metal frame and basket
- Fire-resistant cable to 95°C
- Ceramic screw terminals
- 100v line tappings 0.75w, 1.5w, 3w & 6w
- SPL @ 1W/1m 92dB
- Frame material: Powdered coated Steel
- Frequency response: 130Hz – 15kHz
- Cutout: 160mmØ
- Driver: 135mmØ (5.25″) reinforced paper cone

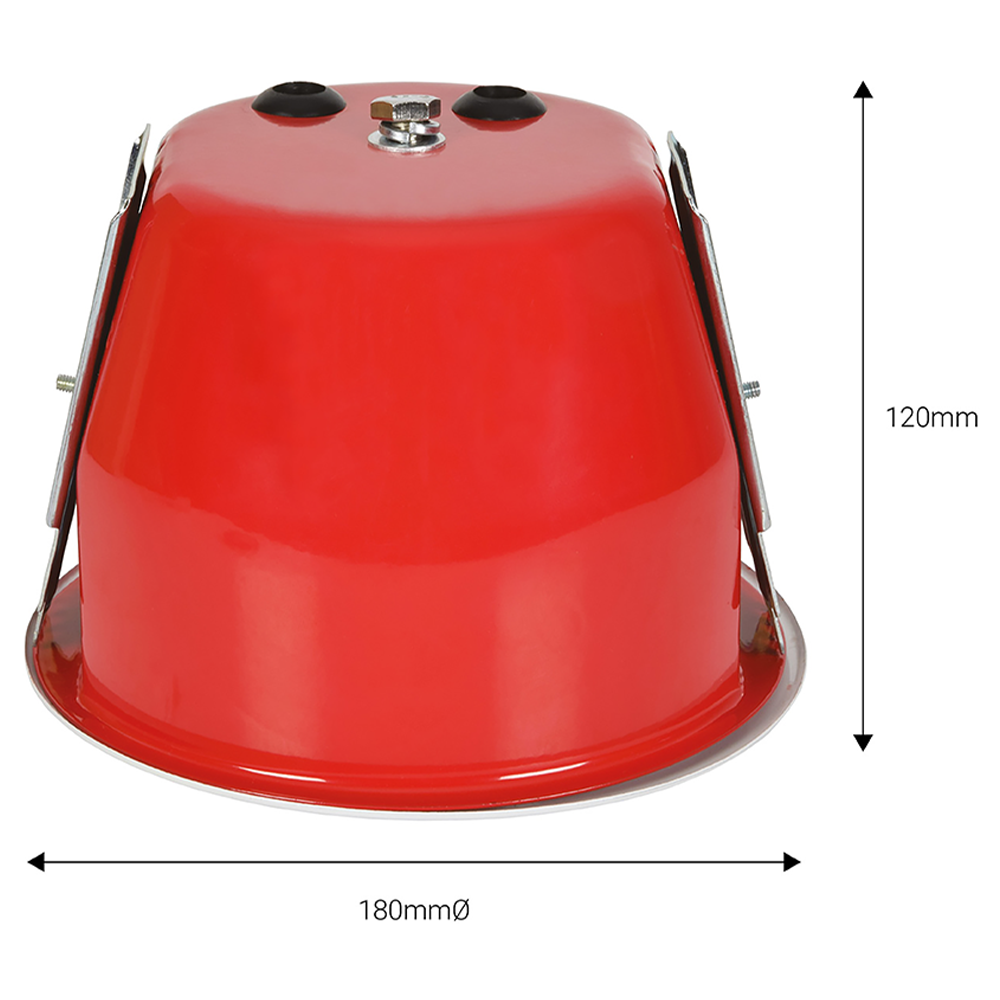

- Dimensions: 120 x 180mmØ
- Weight: 1.23kg
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
