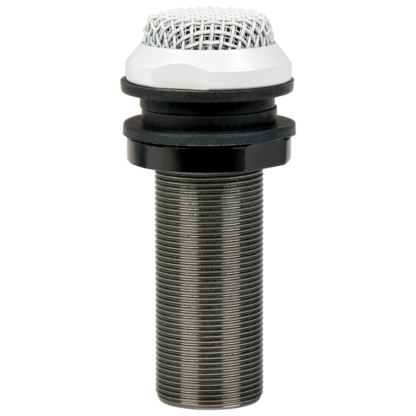

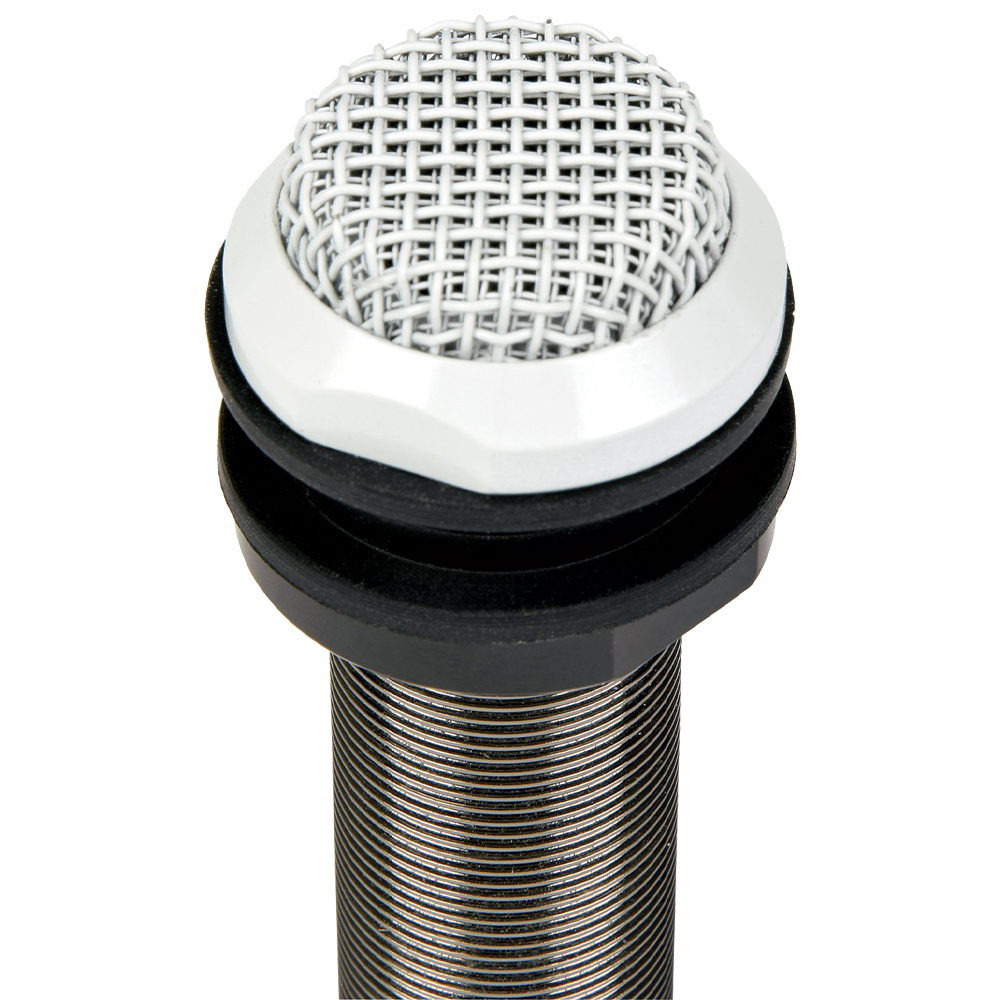

Adastra CBM20 Ceiling Boundary Microphone

SKU: 952.347

£28.65 + VAT    £34.38 incl. VAT

White phantom powered ceiling boundary microphone

1 in stock

PDF

Description

Adastra CBM20 phantom powered ceiling boundary microphone

Low profile ceiling or panel mounting boundary microphone with an omnidirectional pick-up pattern which is suitable for use where discreet audio surveillance is required. Applications range from audio pick-up in induction loop systems to audio monitoring and recording for CCTV systems.

  • Phantom powered (9-52Vdc)
  • Threaded for up to 50mm through-hole mounting
  • Omnidirectional pickup pattern
  • Power supply: 9-52Vdc phantom power
  • Cutout: 20mmØ

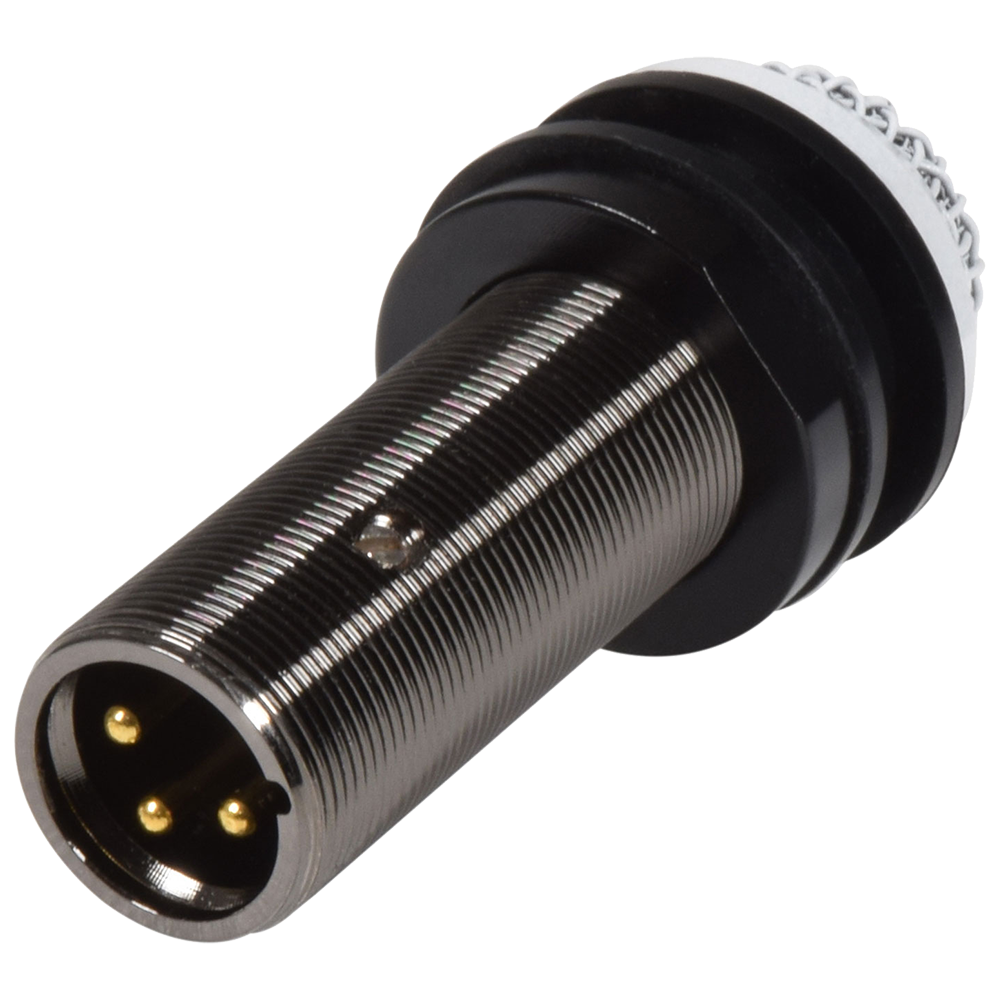

  • Connection: XLR male
  • Frequency response: 50Hz-17kHz
  • Max. input SPL: 140dB @ 1kHz (?1% THD)
  • Sensitivity: -39dB ±3dB (0dB=1V/Pa at 1kHz)
  • Impedance: 200 Ohms ±30% (at 1 kHz)
  • Dimensions: 72 x 32mmØ
  • Weight: 76g

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight0.076 kg
Dimensions7.2 × 3.2 cm
Connection

3 Pin XLR (Male)

Colour

White

Condition

New

Brand

Adastra

Adastra was founded in 1949 and has earned a reputation for high quality public address sound products. Meeting the needs of the commercial PA sector for over 60 years the Adastra name is known for quality and value. Adastra is the choice for 100v line PA sound, zone paging PA and induction loop equipment. The Adastra range includes mixer & slave amplifiers, ceiling, cabinet & horn loudspeakers, desk paging & handheld microphones, equipment racks, cables, stands and accessories. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

What's in the Box?

  • Boundary microphone
